PROCISE™ Surround Sound Processor Crestron PSPHD

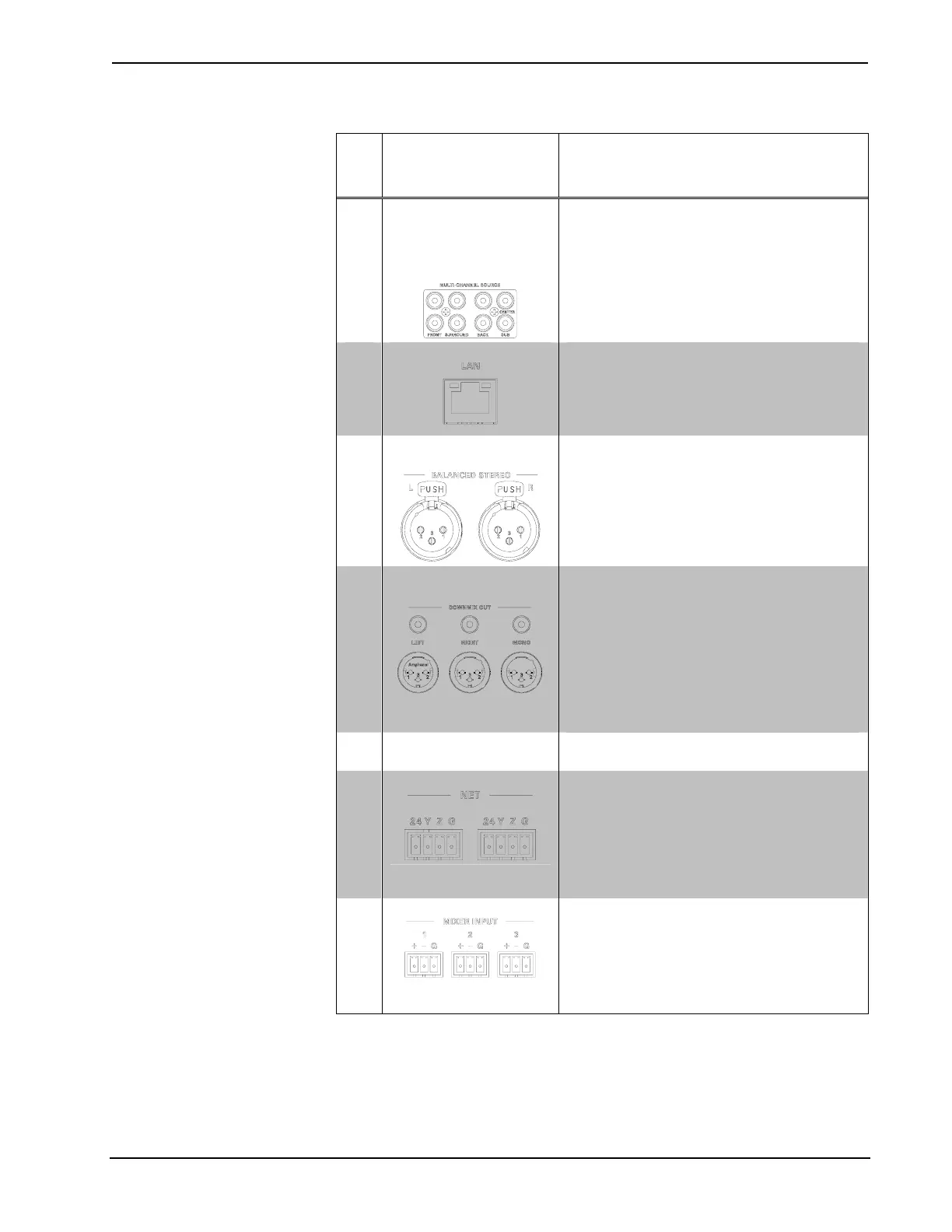

Connectors, Controls & Indicators (Continued)
# CONNECTORS*,
CONTROLS &
INDICATORS
DESCRIPTION
23
MULTI-CHANNEL
SOURCE FRONT L/R,
SURROUND L/R,
BACK L/R, CENTER,
SUB
(8) RCA female; Unbalanced line-level 7.1
surround sound audio input;
Input Impedance: 11k ohms
Maximum Input: 2 V
rms
;
24
LAN (1) 8-wire RJ-45 with 2 LED indicators,
10/100BaseT Ethernet port; Green LED
indicates link status, Yellow LED indicates
Ethernet activity
Connects to LAN or PROAMP
25
BALANCED STEREO
L/R
(2) 3-pin XLR female; balanced stereo line-
level audio input;
Input Impedance: 22k ohms balanced
Maximum Input Level: 4 V
rms
For use with balanced source only
26
DOWNMIX OUT
LEFT/RIGHT MONO
(3) RCA female; Unbalanced line-level stereo
+ mono audio output
Output Impedance: 100 ohms
Maximum Output Level: 4 V
rms
(3) 3-pin XLR male; Balanced line-level stereo
+ mono audio output
Output Impedance: 200 ohms
Maximum Output Level: 8 V
rms
27
SETUP
(LED and button)
Used to setup unit’s Net ID or IP ID in
conjunction with Crestron Toolbox™.
28
NET (2) 4-pin 3.5mm detachable terminal blocks;
Cresnet slave ports, paralleled;
24: Power (24 Volts DC)
Y: Data
Z: Data
G: Ground
29
MIXER INPUT 1-3 (3) 3-pin 3.5mm detachable terminal blocks;
Balanced/unbalanced line-level inputs
Input Impedance: 22k ohms balanced, 11k
ohms unbalanced
Maximum Input Level: 4 V
rms
balanced/unbalanced
(Continued on following page)
22 • PROCISE™ Surround Sound Processor: PSPHD Operations Guide – DOC. 6837B
