Crestron PSPHD PROCISE™ Surround Sound Processor
Mixer Input Connections
Three balanced/unbalanced mixer inputs are provided, utilizing three-pin terminal
block connectors. For connection details, refer to the following table and diagrams.
Mixer Input Connections
SIGNAL NAME BALANCED AUDIO INPUT UNBALANCED AUDIO INPUT
+ + + In
- - Signal return, jumper to GND
G Shield/Ground Ground

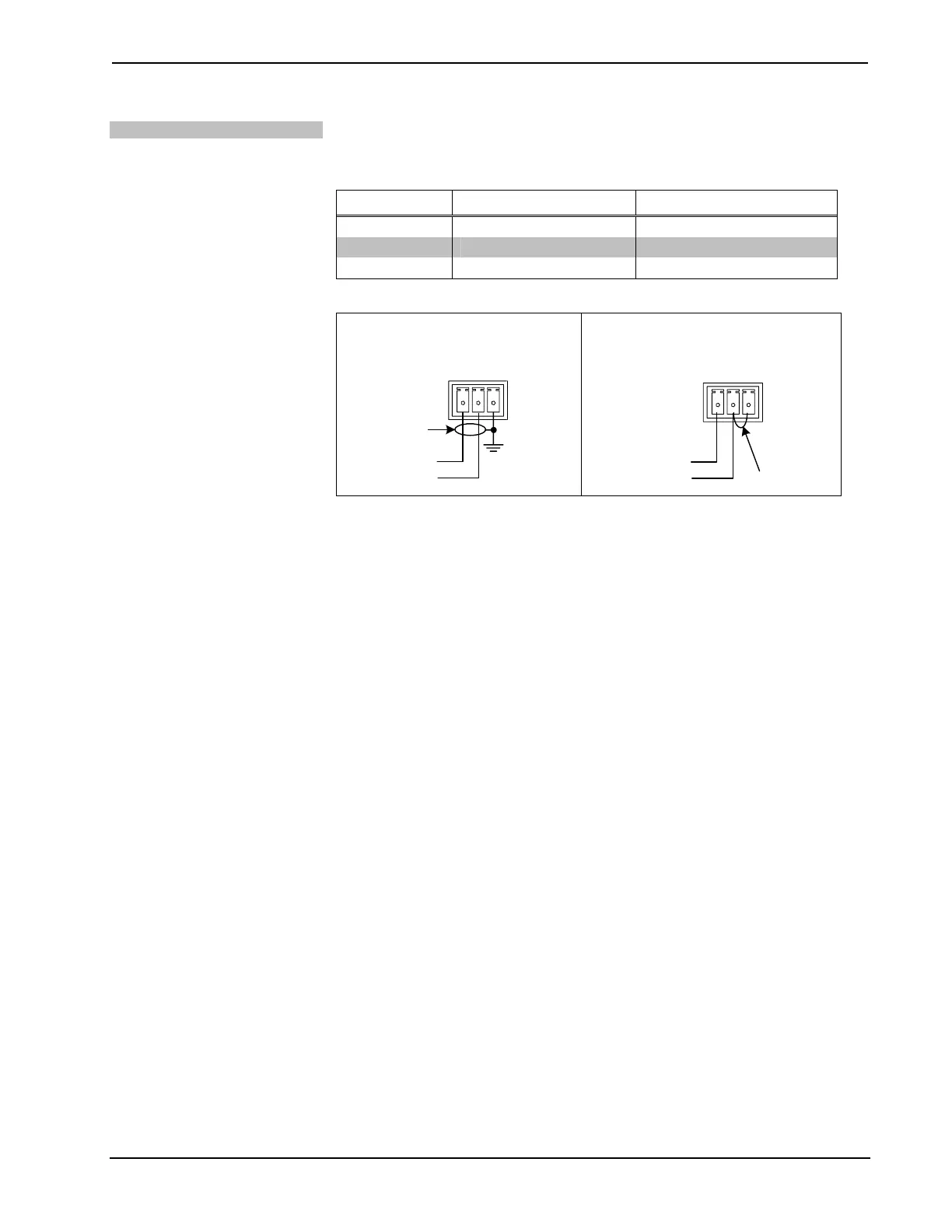

Typical Balanced/Unbalanced Outputs
+ - G
+
Balanced
Input
Shield
1
Source 1
Jumper
+
Unbalanced
Input
Source 1
Shield
+ - G
1
