Place the TouchScreen
The touch screen may be placed on any flat, level surface such as a desk,
conference table, lectern, or podium. The rubber strips on the bottom of
the touch screen prevent it from moving easily.
Connect the Touch Screen
Route all necessary cables to the touch screen, and then make

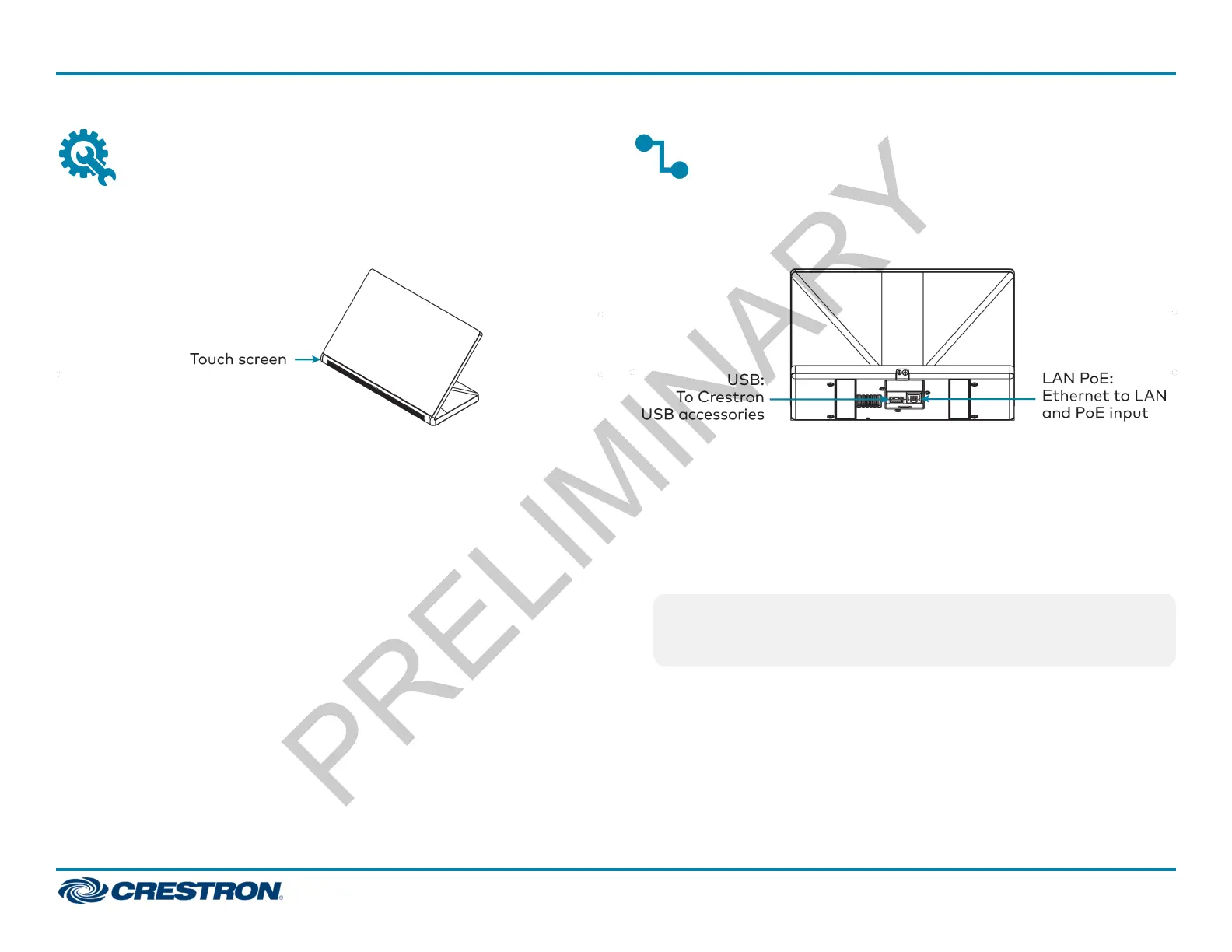

connections to the bottom of the touch screen as shown in the
illustration below.
Observe the following when connecting the touch screen:
l Power and data connection is provided to the touch screen by a single
Ethernet cable. A Crestron PoE (Power over Ethernet) power supply,
such as the PWE-4803RU, or a PoE-capable network switch is
recommended (both not included).
l The USB ports are used to connect compatible Crestron LED
accessories to the touch screen.
NOTE: The TS-770 may use either PoE or PoE+ to supply power to
compatible LED accessories over USB; the TS-1070 must use only
PoE+ to supply power to LED accessories over USB.
l Apply power after all connections have been made.
2
TS-770/TS-1070
QuickStart
7 in. and 10.1 in. Surface Mount TouchScreens
