Crestron TSS-770 Quick Start

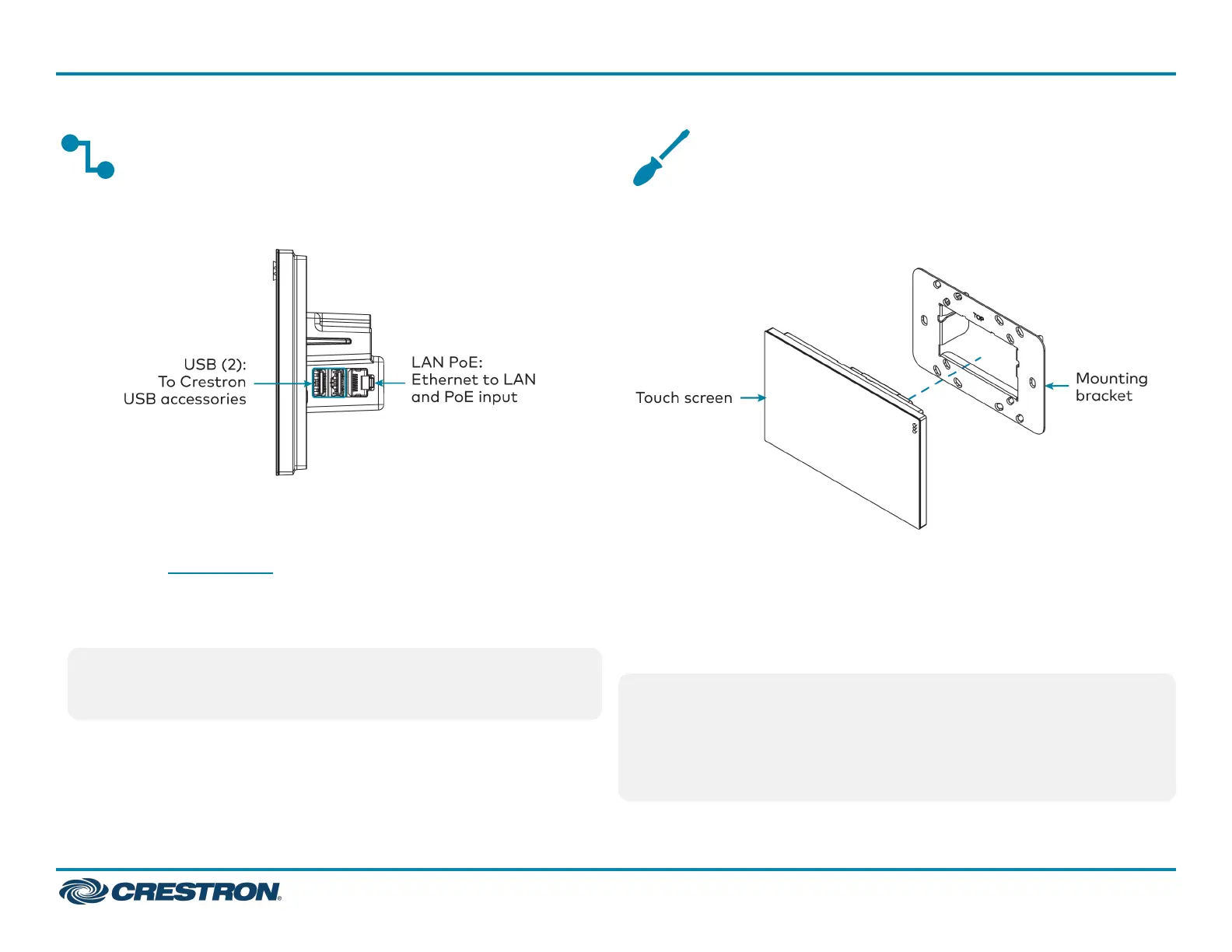

Connect the Touch Screen
Route all necessary cables through the rear of the mounting bracket,
and then make connections to the side of the touch screen rear housing.
Observe the following when connecting the touch screen:
l
Power and data connection is provided to the touch screen by a single
Ethernet cable. A Crestron PoE (Power over Ethernet) power supply,
such as the PWE-4803RU, or a PoE-capable network switch is
recommended (neither included).
l
The USB ports are used to connect compatible Crestron LED
accessories to the touch screen.
NOTE: The TSS-770 may use either PoE or PoE+ to supply power to
compatible LED accessories over USB; the TSS-1070 requires at
minimum PoE+ to supply power to LED accessories over USB.
l
Apply power after all connections have been made.
Mount the Touch Screen
After all connections have been made, push the touch screen gently into
the mounting bracket so that its rear housing is secured within the
center opening of the mounting bracket.
If the touch screen is not level after installation, pull it out of the
mounting bracket and loosen the screws holding the bracket into place.
This procedure allows the mounting bracket to be rotated slightly.
Once the mounting bracket has been repositioned, retighten the screws,
reinstall the touch screen into the bracket, and ensure that the touch
screen is now level.
NOTE:Toclean or disinfect a touch screen display, use a soft, clean,
damp (not wet) cloth with any commercially available non-ammonia
glass cleaner or disinfectant cleaner. Bezels do not provide a complete
watertight seal, so apply cleaning solution to the cloth rather than the
surface of the touch screen. Wipe the touch screen clean and avoid
ingress of moisture beneath the bezels.
4
TSS-770 and TSS-1070
QuickStart
7 in. and 10.1 in. Room Scheduling Touch Screens

Crestron TSS-770 Specifications

General

Network Connectivity	10/100 Mbps Ethernet
Operating Temperature	32° to 104° F (0° to 40° C)
PoE	IEEE 802.3af Class 3 (12.95 W)
Memory	2 GB RAM
Display Size	7 in (178 mm) diagonal
Resolution	1024 x 600 pixels
Touch Technology	Projected capacitive
Power	PoE Class 3 (12.95 W)
Ethernet	10/100 Mbps
Mounting	Surface mount
Processor	Quad Core
