Crestron TSW-1070 User Manual

100 • TSW-70 Series Product Manual — Doc. 8550E

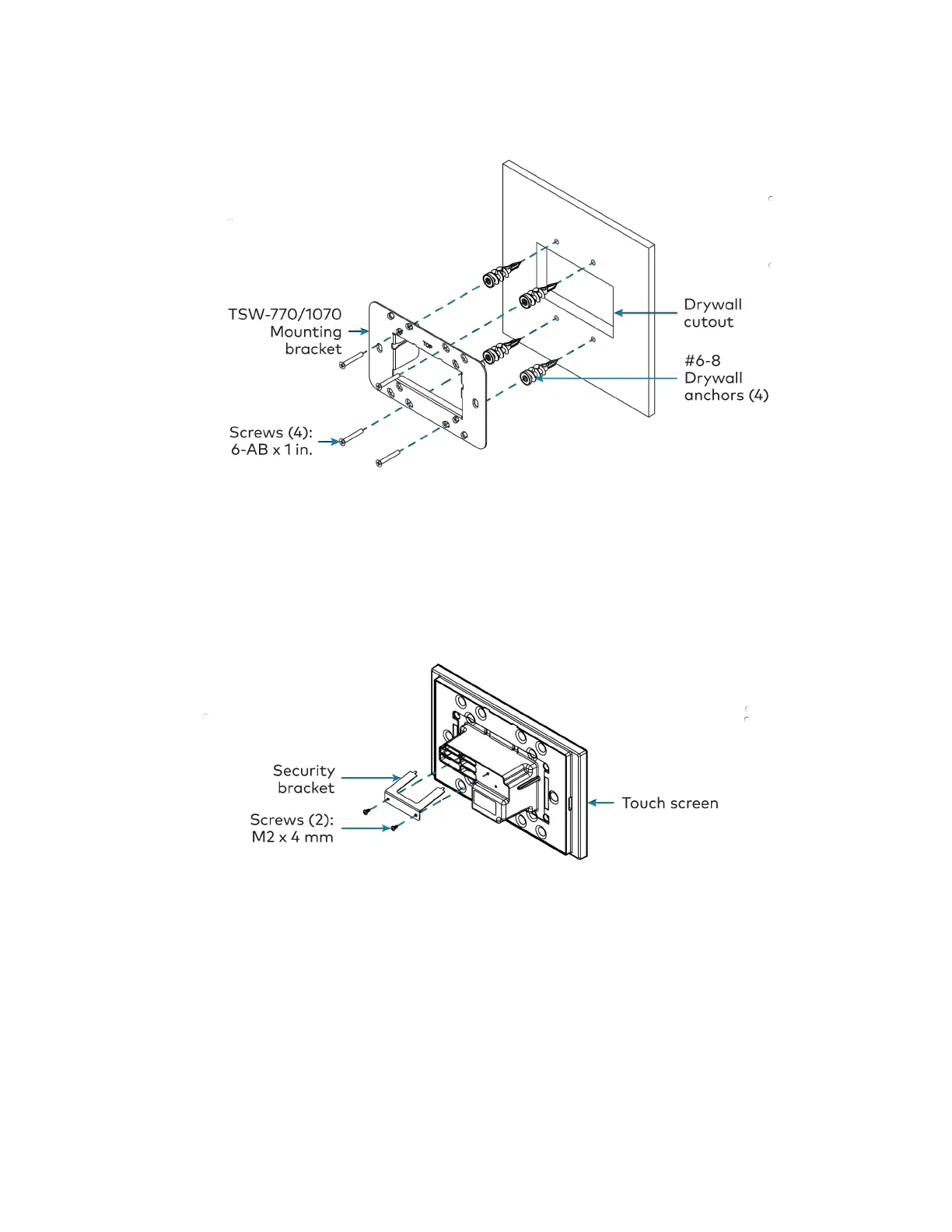

5. Attach the mounting bracket to the anchors using the four 6-ABx 1in. screws as shown in
the image below.
Install the Security Bracket (Optional)
The included security bracket may be attached to the touch screen to prevent unauthorized
removal after installation. The security bracket snaps into place behind the mounting bracket so
that the touch screen cannot be removed without using the included release key.
Use the two M2 x 4 mm screws to attach the security bracket to the touch screen rear housing as
shown in the following illustration.

Crestron TSW-1070 Specifications

General

Resolution	1280 x 800 pixels
Touch Technology	Capacitive
Network Connectivity	Ethernet, Wi-Fi
Touch Screen Display	Yes
Contrast Ratio	800:1
Wi-Fi	802.11a/b/g/n/ac
Display Size	10.1 inch
Brightness	350 nits
Color Depth	16.7 million colors
RAM	2 GB
Speakers	Yes
Camera	No
Video Conferencing	No
Processor	Quad Core
Mounting	Wall mount
Ethernet	10/100/1000 Mbps
