TSW-750 7” Touch Screen
crestron.com
|
800.237.2041
Rava
SIP Intercom
Rava SIP Intercom Technology enables hands-free VoIP communication
between any two Rava-enabled Crestron touch screens. Rava works
over Ethernet, supporting 2-way intercom, video intercom
[3]
, and paging
without any special wiring. VoIP phone capability is also possible through
integration with an SIP-compatible IP phone system or SIP server, allowing
hands-free telephone functionality complete with speed-dialing, caller ID,
custom ringers, and other enhancements. Built-in echo cancellation affords
true-duplex performance for clear, seamless voice communication using
the TSW-750’s integrated microphone and speakers.
Audio Feedback
Customized audio files can be loaded to add another dimension to the
touch screen graphics using personalized sounds, button feedback, and
voice prompts.
Single-Wire Connectivity
A simple Ethernet LAN connection is all that is required to wire the
TSW-750, containing all control, video, intercom, and power signals within
a single wire.
Power over Ethernet
Using PoE technology, the TSW-750 gets its operating power right through
the LAN wiring. PoE (Power over Ethernet) eliminates the need for a local
power supply or any dedicated power wiring. A PoE Injector
(PWE-4803RU
[2]
) simply connects in line with the LAN cable at a
convenient location. Crestron PoE switches (CEN-SW-POE-5,
CEN-SWPOE-16, or CEN-SWPOE-24
[2]
) may also be used to provide a
total networking solution with built-in PoE.
Simple, Versatile Mounting
Using the bracket provided, the TSW-750 installs easily over a 2-gang or
3-gang electrical box, or a 2-gang European electrical box. It can also be
attached directly to drywall and other surfaces over the front of a 2-3/8”
H x 3-3/8” W (60mm H x 86mm W) cutout. When installed, it protrudes
just 1/2 inch from the mounting surface and is magnetically adhered to its
mounting bracket, eliminating any visible screws for an ultra
clean appearance.
[4]
Crestron also offers the TSW-UMB Universal Mounting Bracket
[2]
,
which provides a post-construction wall mounting solution that can
accommodate a variety of current and future Crestron devices including
the TSW-750. The TSW-UMB makes it easy to change devices at any time
without having to cut or patch the wall, or order any additional mounting
hardware. For a pre-construction mounting solution, the TSW-UMB can
be used along with a TSW-UMB-PMK Pre-Construction Mounting Kit
[2]
.
Masonry and concrete applications can be accommodated using the
TSW-UMB along with a TSW-550-BBI back box
[2]
.
Replacing an older Crestron touch screen with a new TSW-750 can be
made simple using a TSW-RMB Retrofit Mounting Bracket. A variety of
adapter brackets are available to enable easy installation of the TSW-750
right over the existing back box, mounting kit, or cut-out.

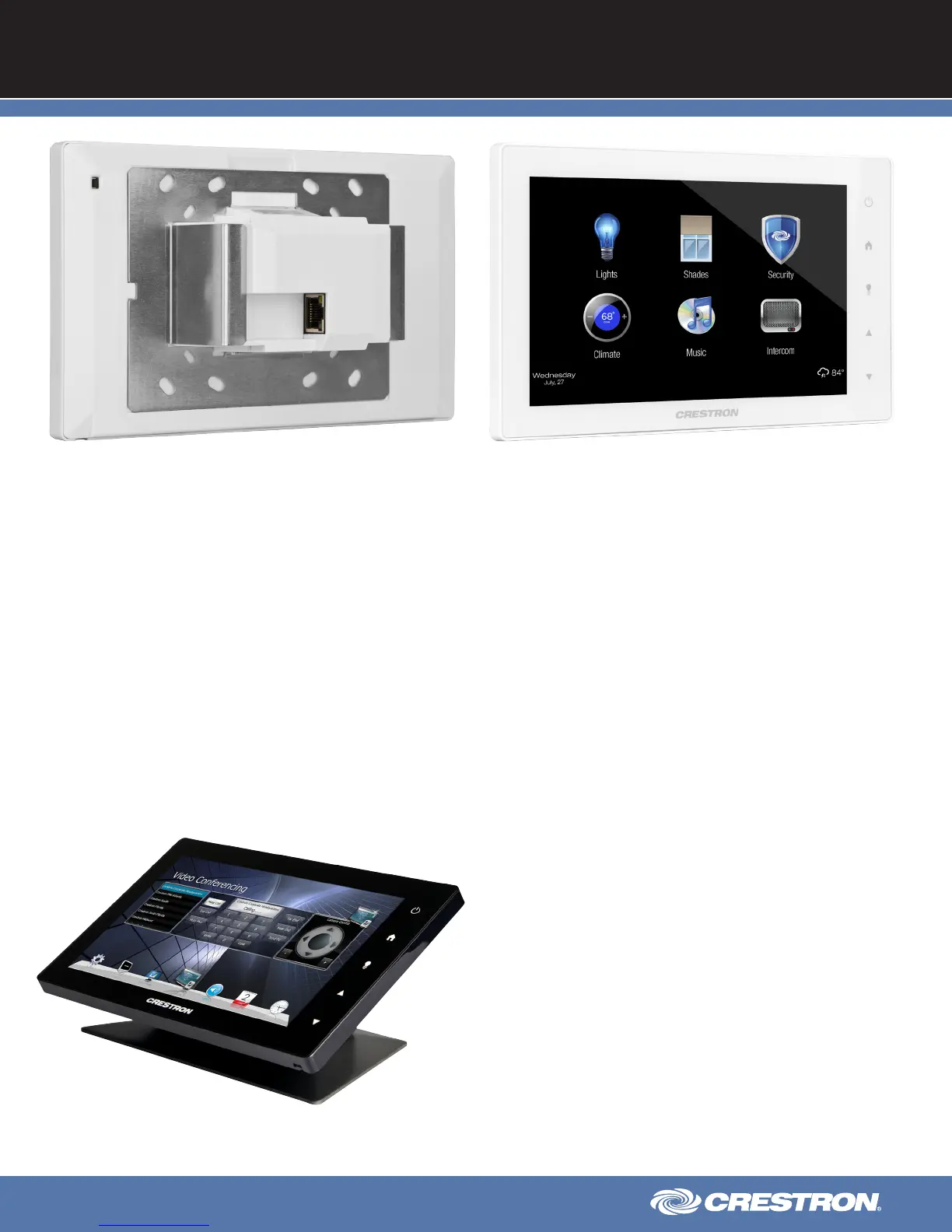

TSW-750-W-S Rear and Front Views
TSW-750-B-S with TSW-750-TTK TableTop Mounting Kit
