Install the Security Bracket

(Optional)

The included security bracket may be attached to the touch screen to

prevent unauthorized removal after installation. The security bracket

snaps into place behind the mounting bracket so that the touch screen

cannot be removed without using the included release key.

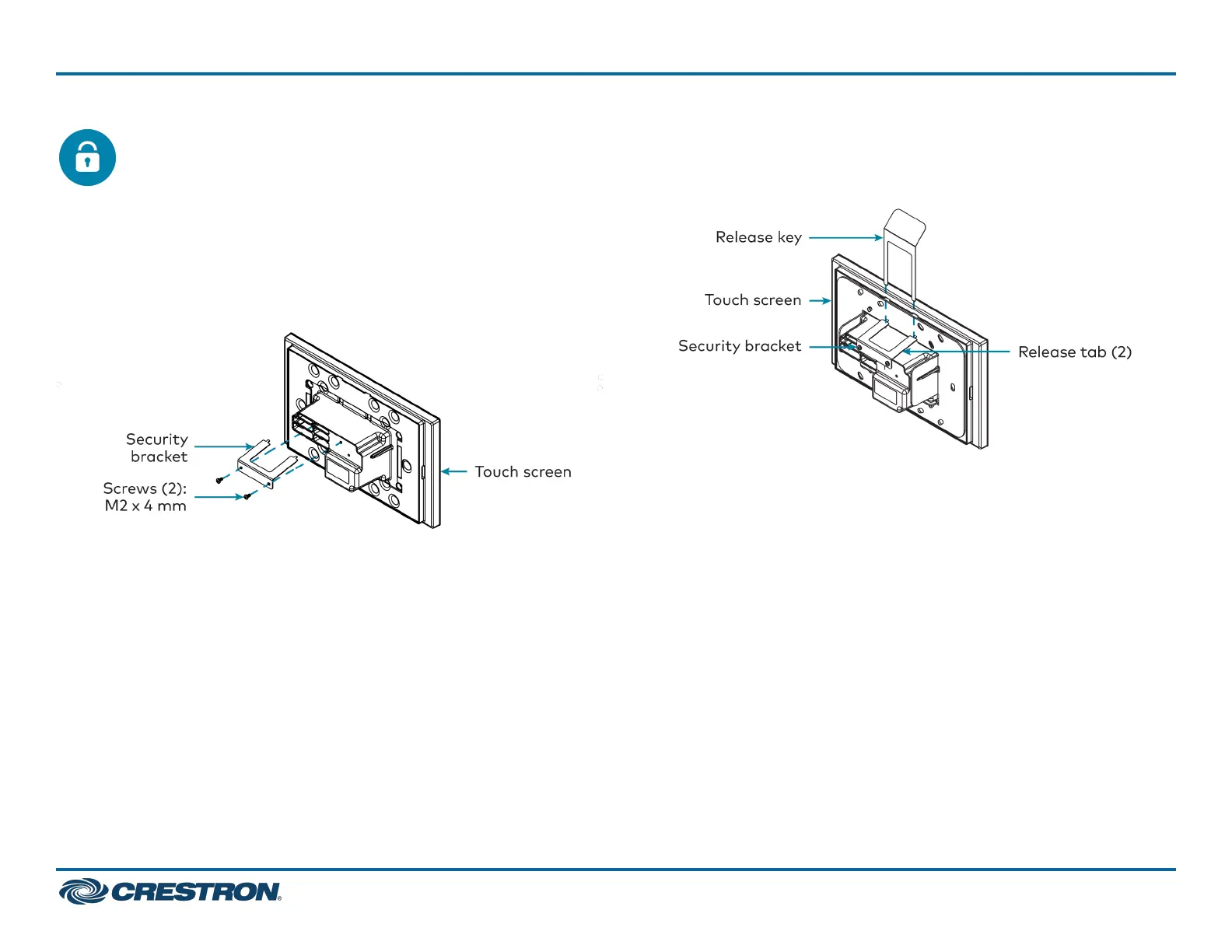

Use the two M2 x 4 mm screws to attach the security bracket to the

touch screen rear housing as shown in the following illustration.

To remove the touch screen after installation, use the included release

key to push down on the security bracket release tabs as shown in the

following illustration while gently pulling the touch screen away from the

mounting bracket.

TSW-570, TSW-770, and TSW-1070

QuickStart

5 in., 7 in., and 10.1 in. Wall Mount Touch Screens
