Crossfire BMF602 - System Configurations

Use the diagrams on the following pages for system configuration. These diagrams
are only samples and your system may vary greatly. Crossover points should be
chosen per the speaker application. For further help, please contact your local
Crossfire dealer or Crossfire's Technical assistance at 562-906-0800.
LOW IN LINE OUT
R
L
LEVEL
CROSSOVER
HPF FULL LPF
X30 X5 X1
OFF ON
ACS
50 250 (X1)
200 1200 (X5)
1K 6K (X30)
(HZ)
CROSSOVER
HPF FULL LPF
LOW IN LINE OUT
R
L
LEVEL
CROSSOVER
HPF FULL LPF
X30 X5 X1
OFF ON
ACS
50 250 (X1)
200 1200 (X5)
1K 6K (X30)
(HZ)
CROSSOVER
HPF FULL LPF
LOW IN LINE OUT
R
L
LEVEL
CROSSOVER
HPF FULL LPF
X30 X5 X1
OFF ON
ACS
50 250 (X1)
200 1200 (X5)
1K 6K (X30)
(HZ)
CROSSOVER
HPF FULL LPF
R
R
R
L
SOURCE UNIT
EQUALIZER
(OPTIONAL
)
(REAR)
(FRONT)
(SUB)
1K 6K (X30)
Input Crossover = Low pass
Crossover = x1 @ 90Hz
Output Crossover = Highpass
1K 6K (X30)
Input Crossover = FULL
Crossover = N/A
Output Crossover = FULL
1K 6K (X30)
Input Crossover = FULL
Crossover = N/A
Output Crossover = FULL

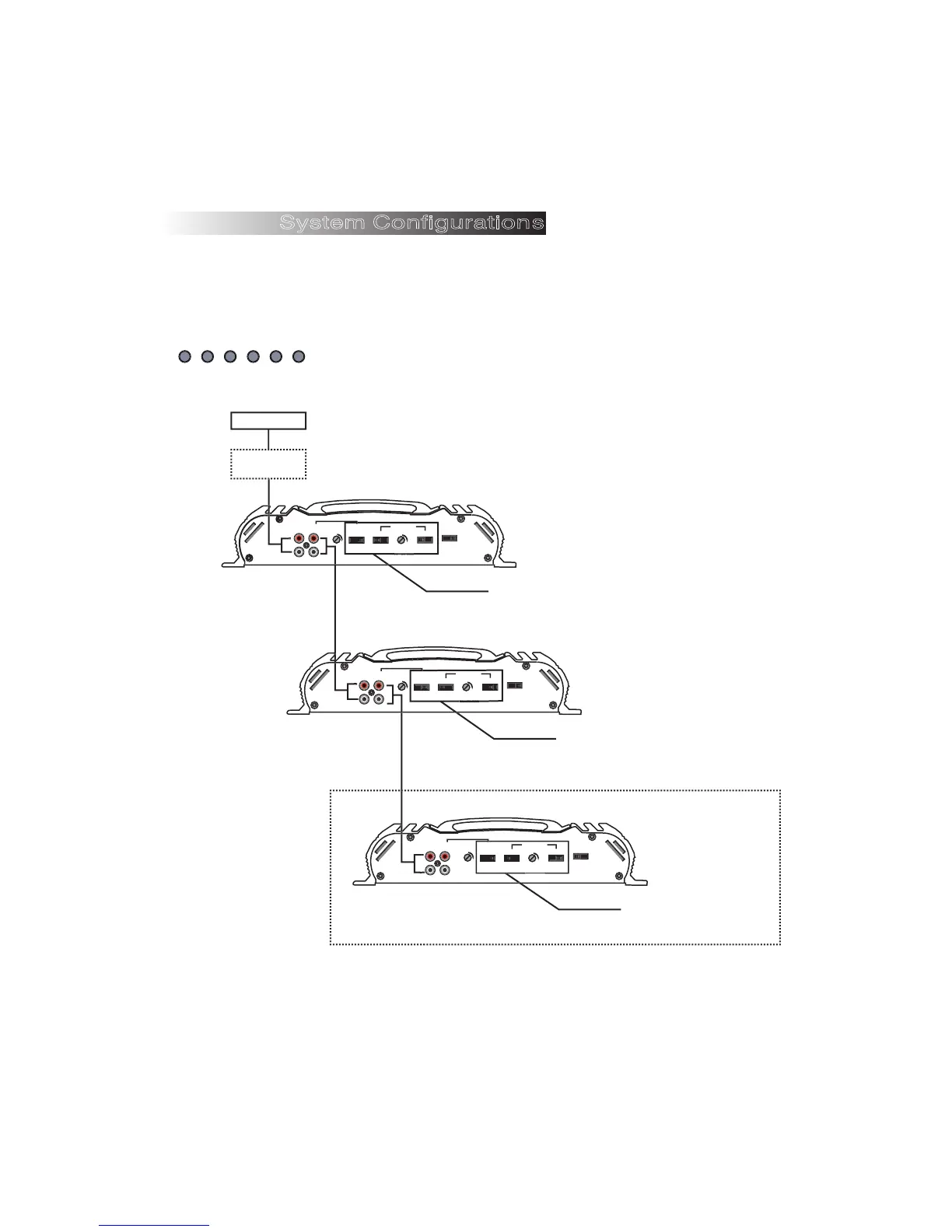

TWO WAY SYSTEM (optional rear amp)
2 Ch. amps
Optional
