As with the power wires, use caution around sharp corners or body parts that may
easily cut through the insulation on the wire. If running wire into the doors, it is
important to use a protective boot in the door jam to protect the wire from being
pinched as well as keeping dust and moisture from entering the vehicle. Use the
factory boots when possible. And always make sure that the wire is out of the way
of the window mechanism.

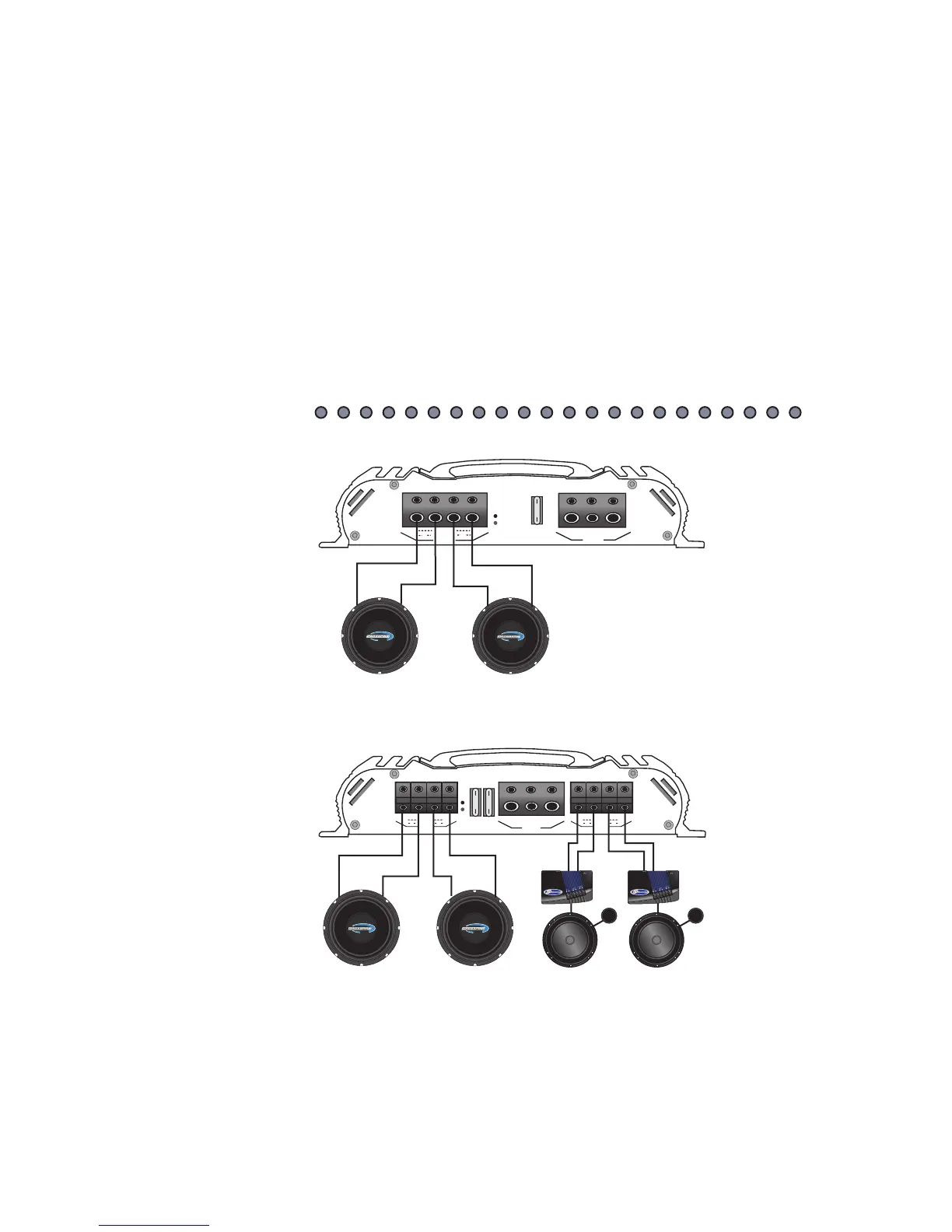

To connect the wire to the speaker, strip off approximately ½" (12mm) of the
insulation and terminate the wires using insulated speaker terminals (not supplied)
or by soldering the connection to the loudspeaker. Be sure that the polarity at the
loudspeaker is correct.
