OVERHEAD PROTECTION AND EXHAUST REMOVAL
If installed under any combustible construction the cooking area over the grill/side burner
MUST be covered with an exhaust hood. The hood must provide 6 inches (15.2 cm) of overhang
on all exposed sides. The exhaust hood shall provide no less than 1,200 CFM for proper exhaust
ventilation. The hood must be approved for outdoor installation and provided with a dedicated
GFCI protected branch circuit (See “Figure 2” for further details).

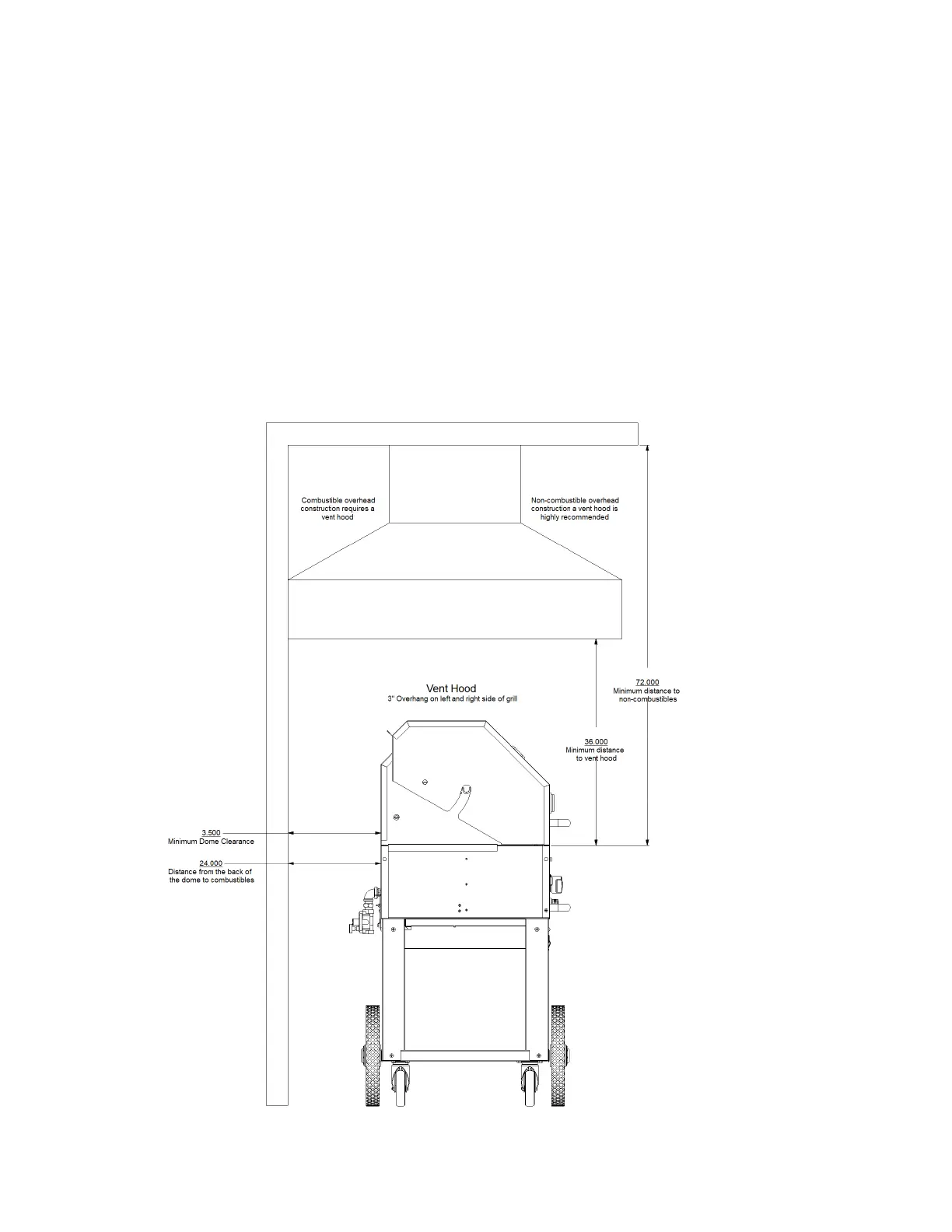

FIGURE 2. EXHAUST HOOD REQUIREMENTS
MCB36 Shown
All appliances covered by this manual are subject to the clearances shown in Figure 2.
