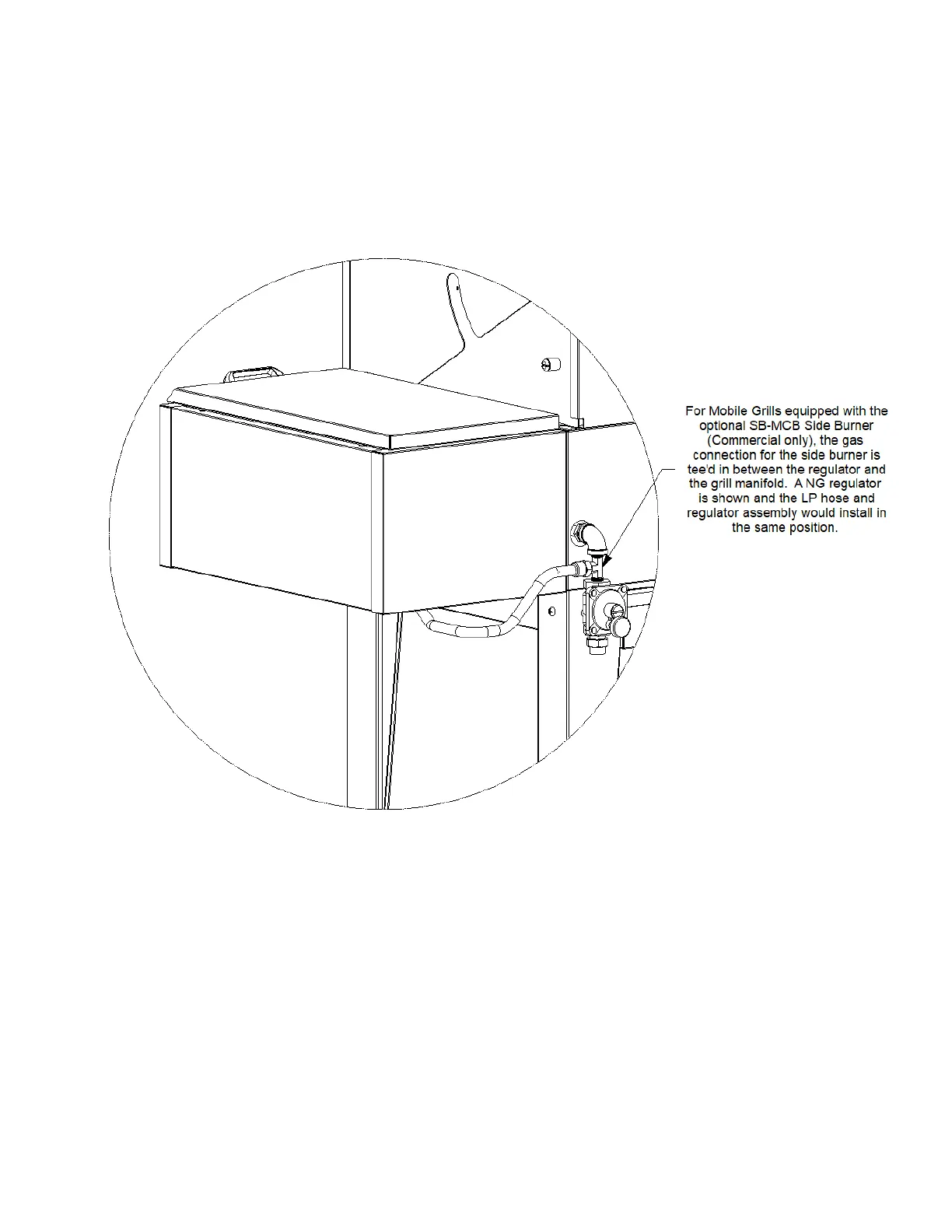

FIGURE 6. NATURAL GAS CONNECTION FOR MCB-SB
WARNING:
For Natural
Gas Models: Your Commercial appliance is designed to operate on
natural gas (NG) pressure regulated at 4.0” water column. The regulator supplied with the grill
is set to this pressure and must be used. For Residential appliances, the regulator will need to
be adjusted to 3.0” water column.
•
In no case should an inlet pipe less than 3/4” inside diameter or 1” outside
diameter ever be used to connect this product.
•
Calculate the total BTU output of all equipment and refer to (See Appendix “B” for
further details) for allowable run distances for 3/4 inch pipe. Failure to meet these
minimum requirements may reduce performance of the grill and any other
appliances running on that supply line.
•
Always keep supply line runs as short as possible. (See “Tables 1 and 2” for specific
model BTU outputs)
•
A gas shut-off valve must be installed in an easily accessible location by a qualified
gas technician.
•
Do not use threading compound on any flare fittings.
