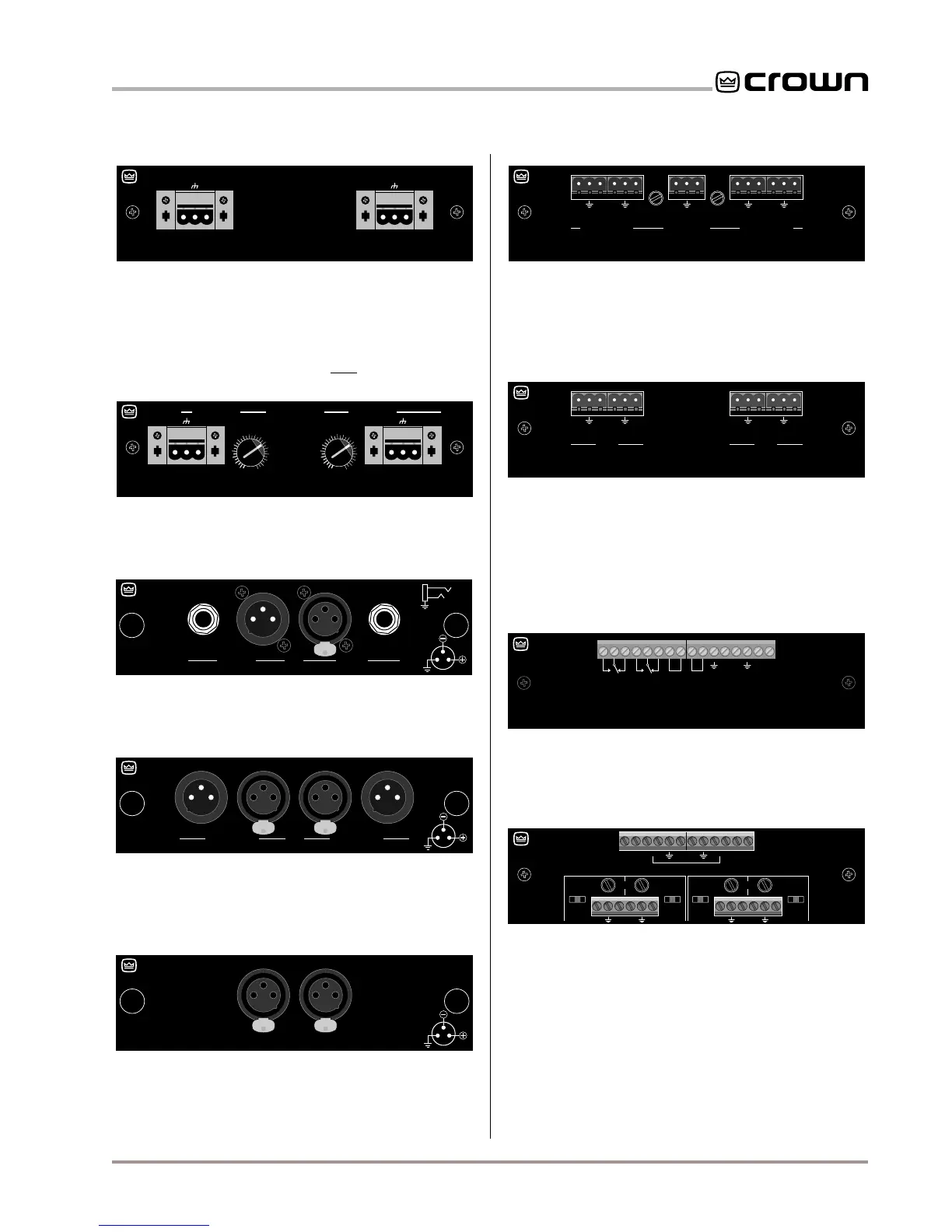

Com-Tech 200/400/800/1600 Power Amplifiers
ISO
Programmable
Input Processor (P.I.P.)
—WARNING—
THIS P.I.P. PROVIDES FULL ISOLATION
FOR ISO-MODIFIED AMPLIFIERS ONLY!
DO NOT CONNECT THE OUTPUT GROUND
LUG TO THE INPUT COMMON OR CHASSIS
GROUND. REFER TO P.I.P.–ISO OWNER’S
MANUAL FOR FURTHER INFORMATION.
+ –
CH-2 INPUT
+ –
CH-1 INPUT
P.I.P.-ISO is designed especially for 25 to 140 volt dis-
tributed systems where UL
®
-listed isolation is required.
Installation requires minor amplifier modifications. With
the P.I.P.-ISO installed, the amplifier outputs are safely
isolated from the input terminals and the chassis.
ATN
Programmable
Input Processor (P.I.P.)
+ – + –
0
2
4
6
8
10
12
14
16
20
24
30
36
44
52
60
dB
0
2
4
6
8
10
12
14
16
20
24
30
36
44
52
60
dB
ATTENUATION ATTENUATION
CH-2 INPUT CH-1 INPUT
P.I.P.-ATN includes all P.I.P.-FTE features, plus a 32-step
precision attenuator for each channel.
Programmable
Input Processor (P.I.P.)
3
12
GND
PUSH
XOV
OUTPUTS INPUTS
+
–
TIP
RING
SLEEVE
GND
P.I.P.-XOV is a versatile 18 dB/octave mono crossover/
filter with biamping and triamping capabilities.
Programmable
Input Processor (P.I.P.)
3
12
GND
PUSHPUSH
FMX
CH-2 INPUTS CH-1 INPUTS
P.I.P.-FMX facilitates “daisy-chaining” balanced ampli-
fier inputs. Female to male three-pin XLR connectors
are used to passively bridge the inputs.
FXT
INPUT INPUT
3
12
GND
Programmable
Input Processor (P.I.P.)
CH-2 CH-1
PUSHPUSH
P.I.P.-FXT uses balanced 1:1 transformers to isolate the
amplifier from the input signal. It has balanced female
three-pin XLR connectors.
PA
Programmable
Input Processor (P.I.P.)
+– +–
LINE MIC
MIC
LEVEL
CH-2 INPUTS
CH-2 CH-1
REMOTE
+– +–
MIC LINE
MIC
LEVEL
CH-1 INPUTS
P.I.P.-PA adds a switchable balanced low-impedance
mic input, a balanced line-level input and a compressor
to each channel. Remote switching circuitry provides
quick and quiet fades from mic to line and back.
102
Programmable
Input Processor (P.I.P.)
+– +–
OUT IN
CH-2
+– +–
IN OUT
CH-1
P.I.P.-102 is a two-channel module providing equaliza-
tion based on the BOSE
®
102 controller. Screw terminal
plugs provide balanced connections. Each input chan-
nel has an output from the P.I.P. that can be indepen-
dently configured for output with no processing, 102
equalization or 102 equalization with bass-cut.
FIRE SAFETY
SYSTEMS
AUDIO SIGNAL
INPUTS
SYSTEM MONITOR
OUTPUTS
– + – +
CH-2 CH-1
CH-2 CH-1CH-2 CH-1
AMPLIFIER
ENABLE
Programmable
Input Processor (P.I.P.)
UL
1711
P.I.P.-UL1711 provides full compliance for Com-Techs
in UL-listed fire protective signaling applications (see
Section 9). Includes monitoring and remote on/off.
RPA
Programmable
Input Processor
+
–
+
–
MIC LINE PHAN
TIE RMT B RMT A OUT IN OUT IN RMT C RMT D +10 V
AUDIO BUS
CH-2 CH-1
MIC LINE PHAN
INPUT D
(CH-2)
INPUT C
(CH-2)
+
–
+
–
MIC LINE PHAN MIC LINE PHAN
INPUT A
(CH-1)
INPUT B
(CH-1)
LEVEL
LEVEL
P.I.P.-RPA adds the features of a 4x2 mixer to your am-
plifier. Its four inputs accept mic- or line-level input. It
offers priority switching (“voice-over”) of each input and
remote level control with the RPA-RMT. Other features
include bus inputs and outputs, adjustable input sensi-
tivity, phantom power and RFI suppression. Input isola-
tion transformers are optional.
For more information on these or other P. I . P. s under
development, contact your local dealer or Crown’s Tech-
nical Support Group.
