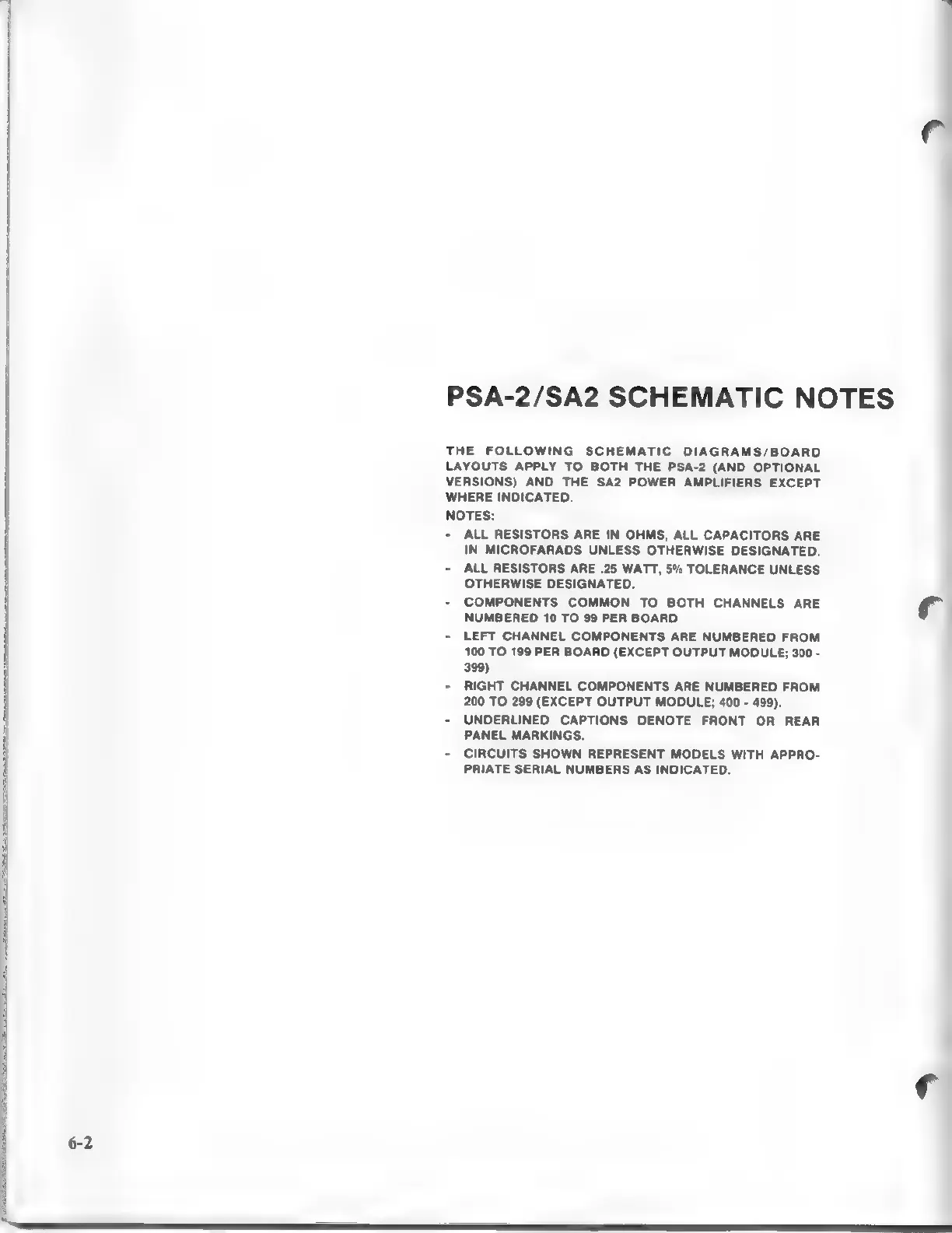

PSA-2/SA2
SCHEMATIC
NOTES
THE FOLLOWING SCHEMATIC DIAGRAMS/BOARD
LAYOUTS APPLY TO BOTH THE PSA-2 (AND OPTIONAL
VERSIONS) AND THE SA2 POWER AMPLIFIERS EXCEPT
WHERE INDICATED.
NOTES:
- ALL RESISTORS ARE IN OHMS, ALL CAPACITORS ARE
IN MICROFARADS UNLESS OTHERWISE DESIGNATED.
- ALL RESISTORS ARE .25 WATT, 5% TOLERANCE UNLESS.
OTHERWISE DESIGNATED.
- COMPONENTS COMMON TO BOTH CHANNELS ARE @
NUMBERED 10 TO 99 PER BOARD.
- LEFT CHANNEL COMPONENTS ARE NUMBERED FROM
100 TO 199 PER BOARD (EXCEPT OUTPUT MODULE; 300 -
399)
- RIGHT CHANNEL COMPONENTS ARE NUMBERED FROM
200 TO 299 (EXCEPT OUTPUT MODULE; 400 - 499).
- UNDERLINED CAPTIONS DENOTE FRONT OR REAR
PANEL MARKINGS.
- CIRCUITS SHOWN REPRESENT MODELS WITH APPRO-
PRIATE SERIAL NUMBERS AS INDICATED.
