Crown PSA-2 - Page 40

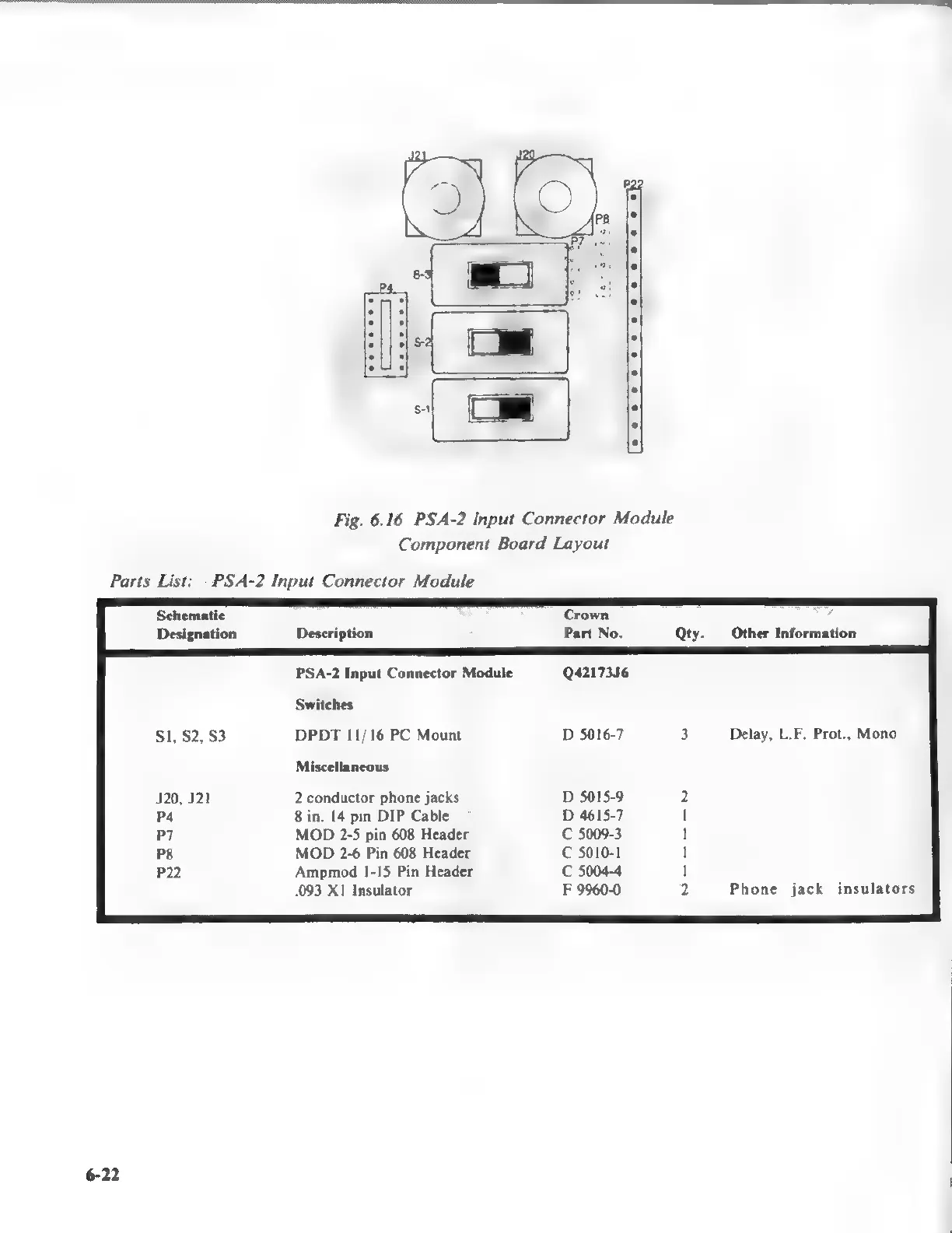

Fig. 6.16 PSA-2 Input Connector Module
Component Board Layout
Parts List: PSA-2 Input Connector Module
Schematic is
D ation Description Qty. Other Information
PSA-2 Input Connector Module Q42173J56
Switches
S1, $2, $3 DPDT 11/16 PC Mount D 5016-7 Delay, L.F. Prot., Mono
Miscellaneous
2 conductor phone jacks D 5015-9
8 in. 14 pin DIP Cable D 4615-7
MOD 2-5 pin 608 Header C 5009-3
MOD 2-6 Pin 608 Header C 5010-1
Ampmod 1!-15 Pin Header C 5004-4
.093 XI Insulator F 9960-0 Phone jack insulators
6-22
