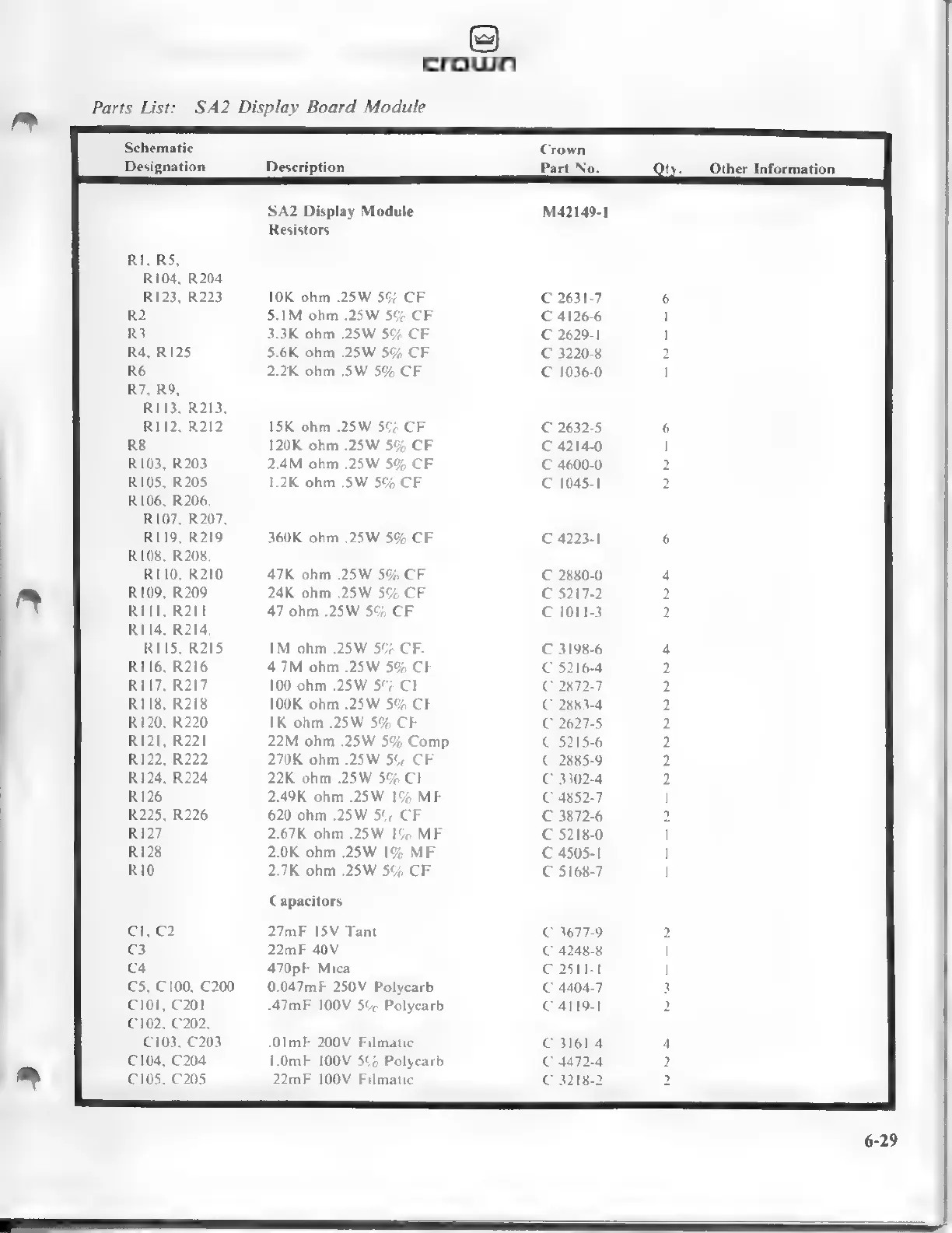

Parts List: SA2 Display Board Module
Other Information
SA2 Display Module M42149-1
Resistors
RI, RS,
R104, R204
R123, R223 10K ohm .25W 5% CF > 2631-7
5.1M ohm .25W 5% CF > 4126-6
3.3K ohm .25W 5% CF > 2629-1
R4, R125 5.6K ohm .25W 5% CF > 3220-8
R6 2.2K ohm .SW 5% CF 1036-0
R7, R9,
R113, R213,
R112, R212 ISK ohm .25W 5% CF > 2632-5
R8& 120K ohm .25W 5% CF * 4214-0
R103, R203 2.4M ohm .25W 5% CF > 4600-0
R105, R205 1.2K ohm .SW 5% CF > 1045-1
R106, R206,
R107, R207,
RII9, R219 360K ohm .25W 5% CF > 4223-1
R108, R208,
R110, R210 47K ohm .25W 5% CF * 2880-0
R109, R209 24K ohm .25W 5% CF > 5217-2
RII, R211 47 ohm .25W 5% CF > 1011-3
R114, R214,
RIS, R215 1M ohm .25W 5% CF > 3198-6
R116, R216 4.7M ohm .25W 5% CI
RII7, R217 100 ohm .25W 5% CE
R118, R218 100K ohm .25W 5% CF
R120, R220 IK ohm .25W 5% CF
R121, R221 22M ohm .25W 5% Comp
R122, R222 270K ohm .25W 5% CF
R124, R224 22K ohm .25W 5% CE
R126 2.49K ohm .25W 1% MF
R225, R226 620 ohm .25W 5% CF > 3872-6
R127 2.67K ohm .25W 1% MF * 5218-0
R128 2.0K ohm .25W 1% MF > 4505-1
R1O 2.7K ohm .25W 5% CF 5168-7
NNNNNNNA
Capacitors
Cl, C2 27mF 15V Tant
G3 22mF 40V
C4 470pF Mica
C5, C100, C200 0.047mF 250V Polycarb
C101, C201 47mF 100V 5% Polycarb
C102, €202,
C103, C203 .0ImF 200V Filmatic
C104, C204 1.0mF 100V 5% Polycarb
C105, C205 .22mF 100V Filmatic
