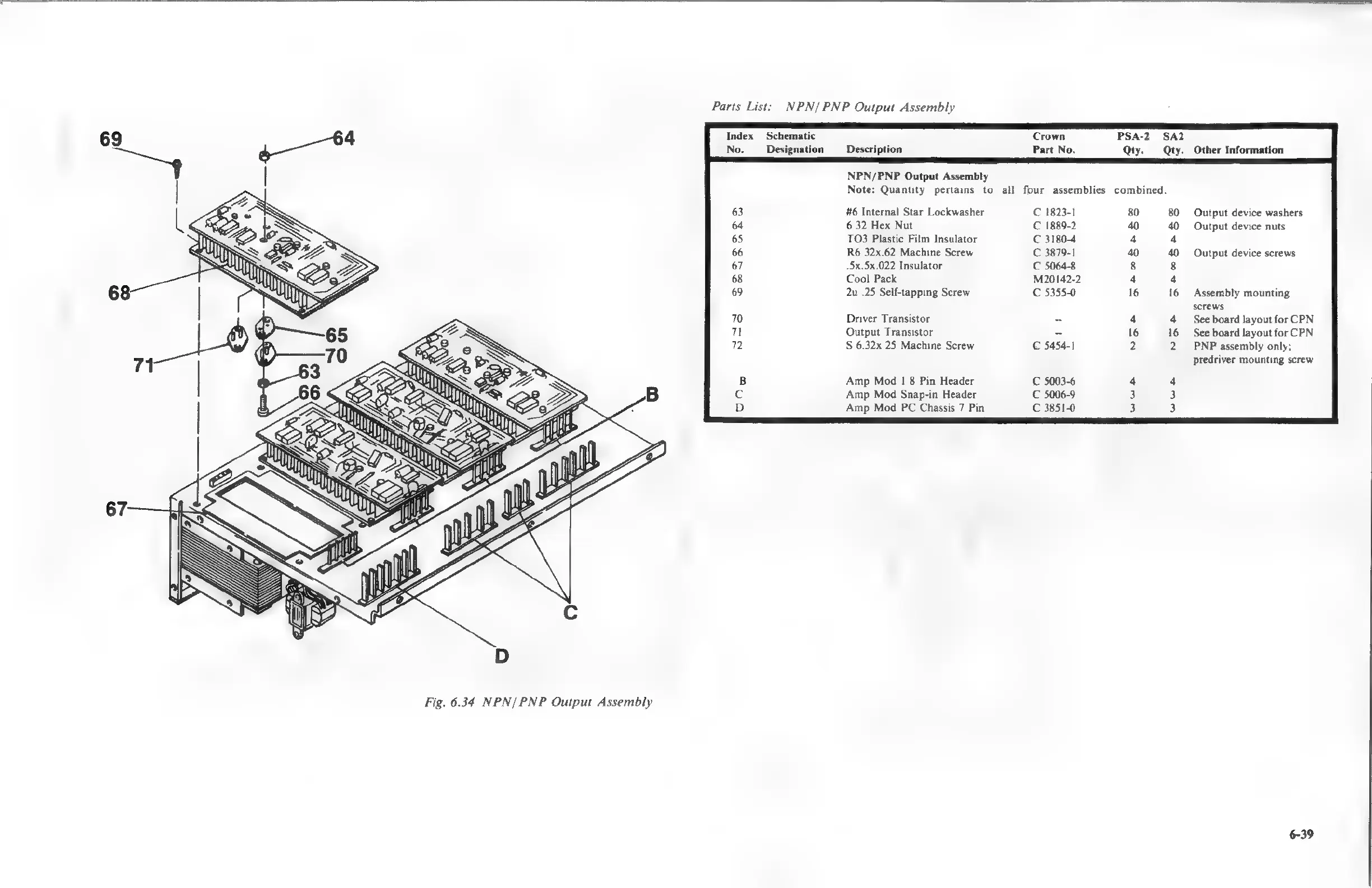

Fig. 6.34 NPN/ PNP Output Assembly
Parts List:
Index
NPN/ PNP Output Assembly
NPN/PNP Output Assembly
PSA-2 SA2
Qty. Qty.
Note: Quantity pertains to all four assemblies combined.
#6 Internal Star Lockwasher
6 32 Hex Nut
TO3 Plastic Film Insulator
R6 32x.62 Machine Screw
-5x.5x.022 Insulator
Cool Pack
2u .25 Self-tapping Screw
Driver Transistor
Output Transistor
S 6.32x.25 Machine Screw
Amp Mod | 8 Pin Header
Amp Mod Snap-in Header
Amp Mod PC Chassis 7 Pin
C 1823-1
C 1889-2
C 3180-4
C 3879-1
C 5064-8
M20142-2
C 5355-0
C 5454-1
C 5003-6
C 5006-9
C 3851-0
Output device washers
Output device nuts
Output device screws
Assembly mounting
screws:
See board layout for CPN
See board layout for CPN
PNP assembly only;
predriver mounting screw
6-39
