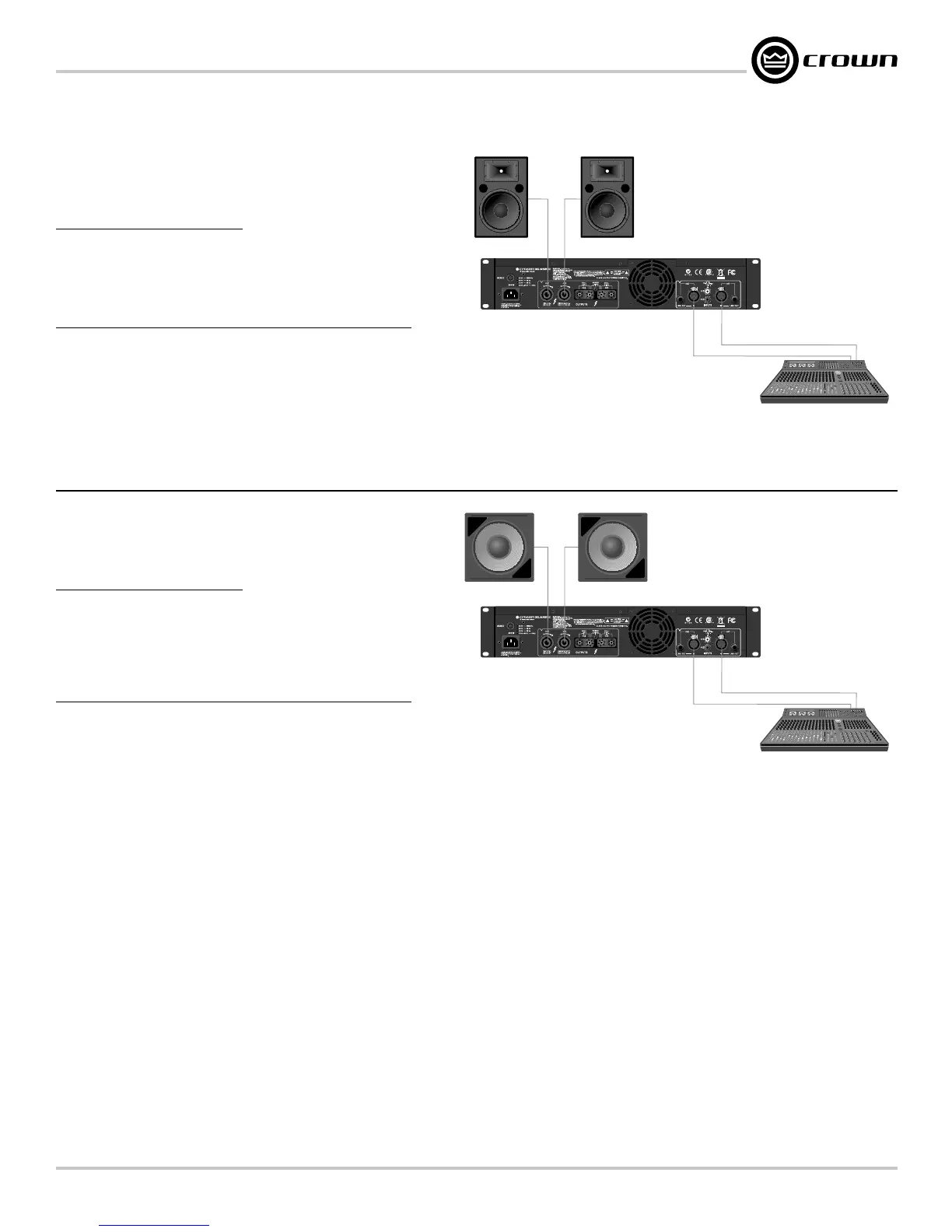

LowPass Mode
When using the “LowPass Mode”, the amplifi er is confi gured to use a LowPass
Filter on Channel 1 and Channel 2 at the selected frequency.
Before you get started ensure that you:
1. Connect Left/Right signal source to Channel 1 and Channel 2 using
either the XLR, ¼ Inch, or RCA connectors.
2. Connect a speaker to each channel output using Speakon
®
, Banana
Plugs, or bare wire.
Follow these quick steps to confi gure the amplifi er for “HighPass Mode”:
1. Hold the “Mode/Menu” button down for 3 sec until the LCD screen
displays “Amp Mode <More>”.
2. Press the “Mode/Menu” button to begin confi guring the Amp Mode.
3. Press the “Next” button until the LCD screen displays “Stereo”. Now press the “Mode/Menu” button to confi rm.
4. Now press the “Next” button until the LCD screen displays “LowPass” and press the “Mode/Menu” button to confi rm.
5. Now use the “Previous” or “Next” button to select your desired crossover point.
6. Once you have selected your crossover point, press the “Mode/Menu” button to confi rm your selection. The LCD screen should now read “Stereo LowPass”.
HighPass Mode
When using the “HighPass Mode”, the amplifi er is confi gured to use a HighPass
Filter on Channel 1 and Channel 2 at the selected frequency.
Before you get started ensure that you:
1. Connect Left/Right signal source to Channel 1 and Channel 2 using either
the XLR, ¼ Inch, or RCA connectors.
2. Connect a speaker to each channel output using Speakon
®
, Banana Plugs,
or bare wire.
Follow these quick steps to confi gure the amplifi er for “HighPass Mode”:
1. Hold the “Mode/Menu” button down for 3 sec until the LCD screen
displays “Amp Mode <More>”.
2. Press the “Mode/Menu” button to begin confi guring the Amp Mode.
3. Press the “Next” button until the LCD screen displays “Stereo”. Now press the “Mode/Menu” button to confi rm.
4. Now press the “Next” button until the LCD screen displays “HighPass” and press the “Mode/Menu” button to confi rm.
5. Now use the “Previous” or “Next” button to select your desired crossover point.
6. Once you have selected your crossover point, press the “Mode/Menu” button to confi rm your selection. The LCD screen should now read “Stereo HighPass”.
Get Started

Crown XLS 2000 Series Specifications

General

Input Sensitivity	1.4V
Total Harmonic Distortion (THD)	< 0.5%
Input Impedance	20k ohms (balanced), 10k ohms (unbalanced)
Damping Factor	>500
Weight	10.9 lbs (4.9 kg)
Frequency Response	20Hz - 20kHz
Cooling	Variable speed fan
Voltage	100V-240V
