Crossover Mode
Stereo Bi-Amp System
A theater 2.1 sound amplification system can be easily set up using one amplifier in STEREO mode for the L and R channels and a second amplfier in BRIDGE mode with a
Low Pass filter set to the appropriate cutoff frequency.
Monaural Bi-Amp System
1. Configure the system as described in Input-Y section on page 8. The
woofer connected to Channel 1 and the mid/high drivers to Channel 2.
2. Set up Channel 1 as a Low Pass filter and use your crossover frequency as
the filter's cutoff frequency.
3. Set up Channel 2 as a High Pass filter using the same filter cutoff
frequency as in Step 2 above.

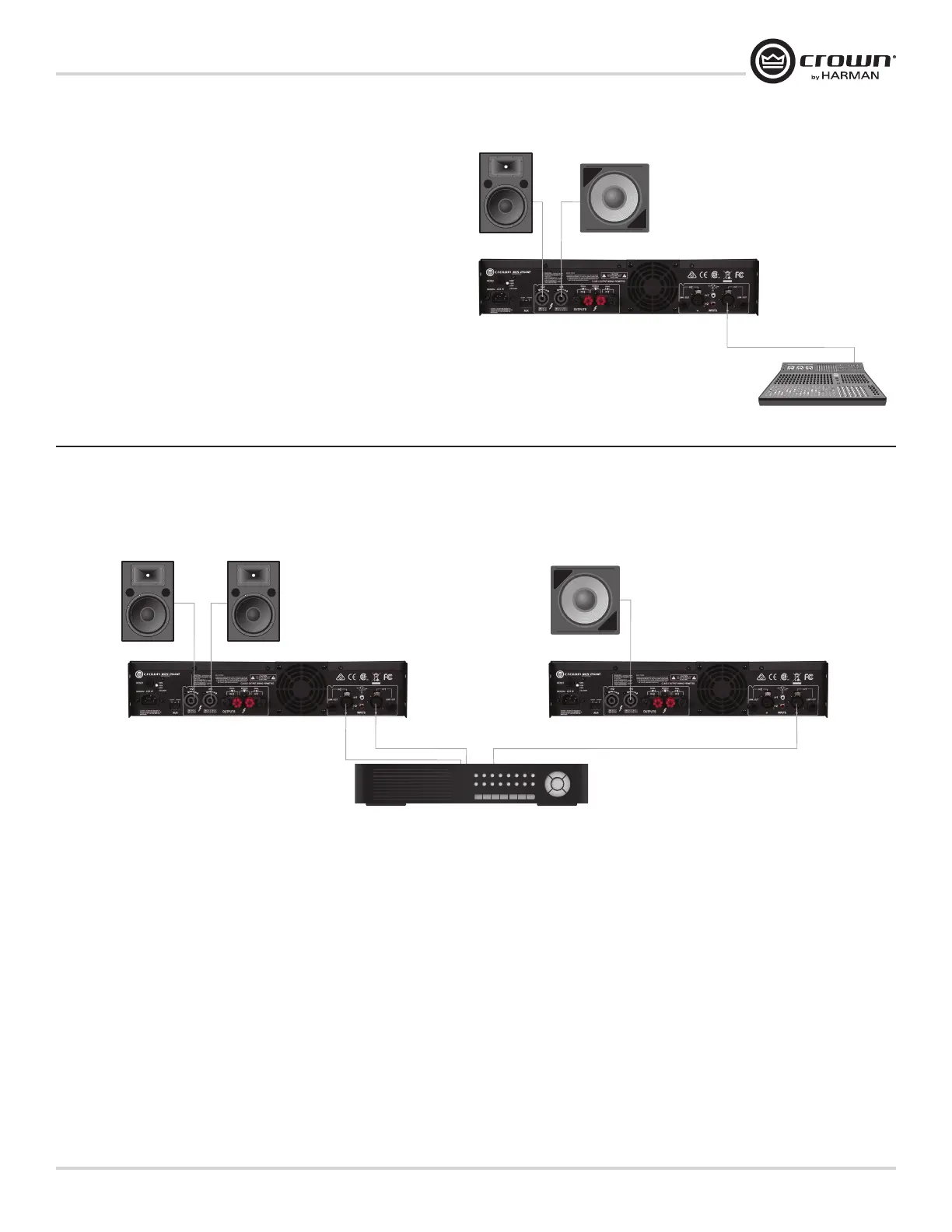

System Conguration Examples

Crown XLS 2002 Specifications

General

Damping factor	200
Amplifier class	D
Audio output channels	2.0 channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	103 dB
Total Harmonic Distortion (THD)	0.5 %
RMS power output per channel (2 Ohm)	1050 W
RMS power output per channel (4 Ohm)	650 W
RMS power output per channel (8 Ohm)	375 W
Bridge-mode power output per channel (4 Ohm)	2100 W
Bridge-mode power output per channel (8 Ohm)	1300 W
Built-in display	Yes
Purpose	-
Product color	Black
Connectivity technology	Wired
Speakers connectivity type	XLR / 1/4\

Weight and Dimensions

Depth	89 mm
Width	483 mm
Height	212 mm
Weight	4900 g
