Crown XLS1000 - Page 17

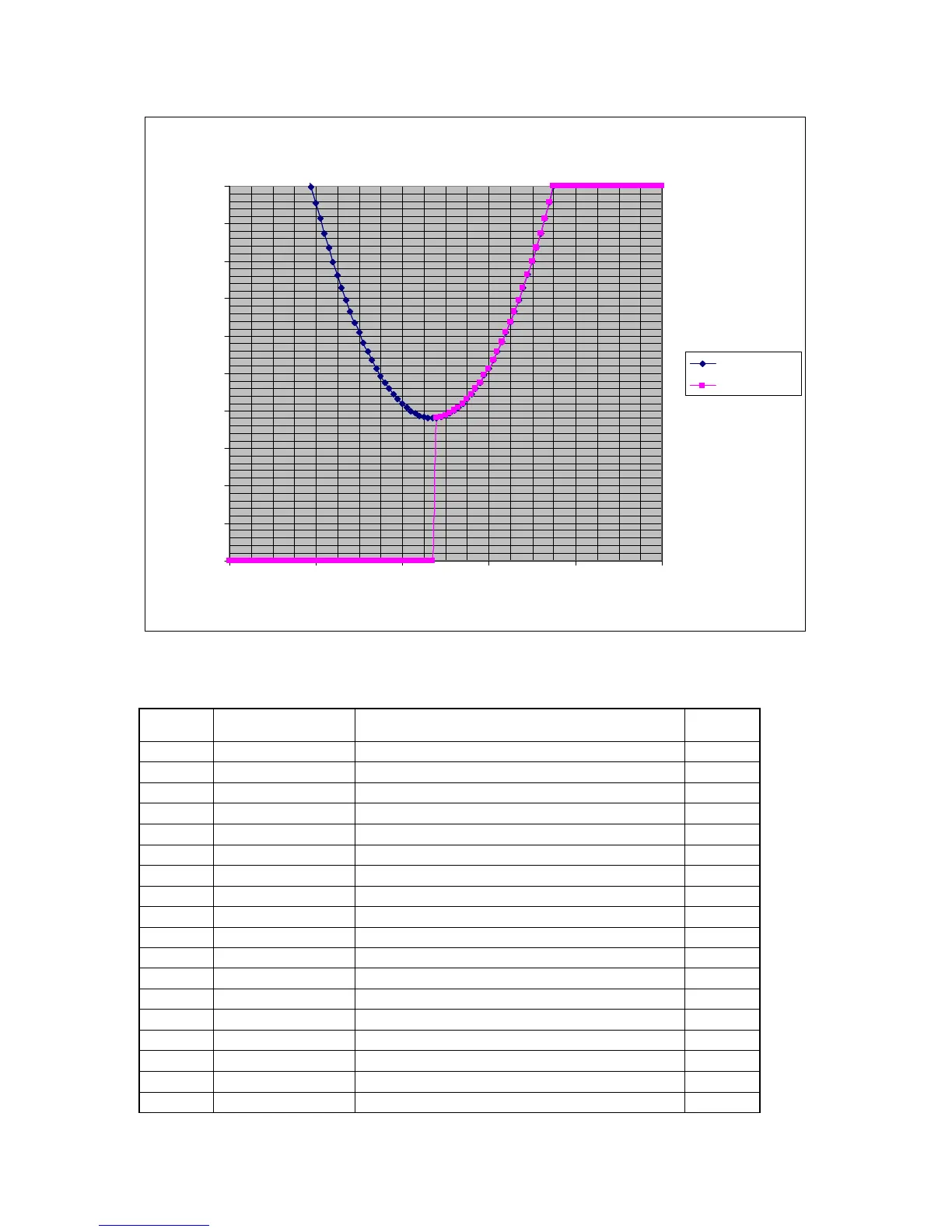

PWM as a function of temp
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
100.0
0 20 40 60 80 100
Temp ( C )
PWM register
raw equation
fan speed
BOM: 141558-4 XLS1500/2000/2500 APM
REF.
DES.
CPN
DESCRIPTION
MAP
LOC.
C500 139719-1 CAP, 1.0UF 25V X7R 10% 0805 F 2
C501 A11369-220J1 CAP, 22PF 50V 5% 0603 NPO B 2
C502 A11369-220J1 CAP, 22PF 50V 5% 0603 NPO B 2
C503 A11369-101J1 100PF 50V 5% NPO 0603 B 2
C504 126623-1 47UF 16V 6.3X5.5MM 20% SMT C 2
C505 A11369-101J1 100PF 50V 5% NPO 0603 A 2
C506 A11369-101J1 100PF 50V 5% NPO 0603 A 2
C507 A11369-472J2 CAP, 4700PF 5% 50V SMT 0805 A 3
C508 126623-1 47UF 16V 6.3X5.5MM 20% SMT B 3
C509 126623-1 47UF 16V 6.3X5.5MM 20% SMT A 3
C511 OPEN B 3
C512 A11369-101J1 100PF 50V 5% NPO 0603 A 2
C513 A11369-101J1 100PF 50V 5% NPO 0603 A 2
C514 A11369-681F2 CAP, 680PF 50V 1% NPO 0805 B 1
C515 A11369-222F2 CAP, 2200PF 50V NPO 1% 0805 B 1
C516 A11369-222F2 CAP, 2200PF 50V NPO 1% 0805 B 2
C517 A11369-681F2 CAP, 680PF 50V 1% NPO 0805 B 2
C518 126623-1 47UF 16V 6.3X5.5MM 20% SMT A 1
