CRT MICRON U/V - Page 13

7

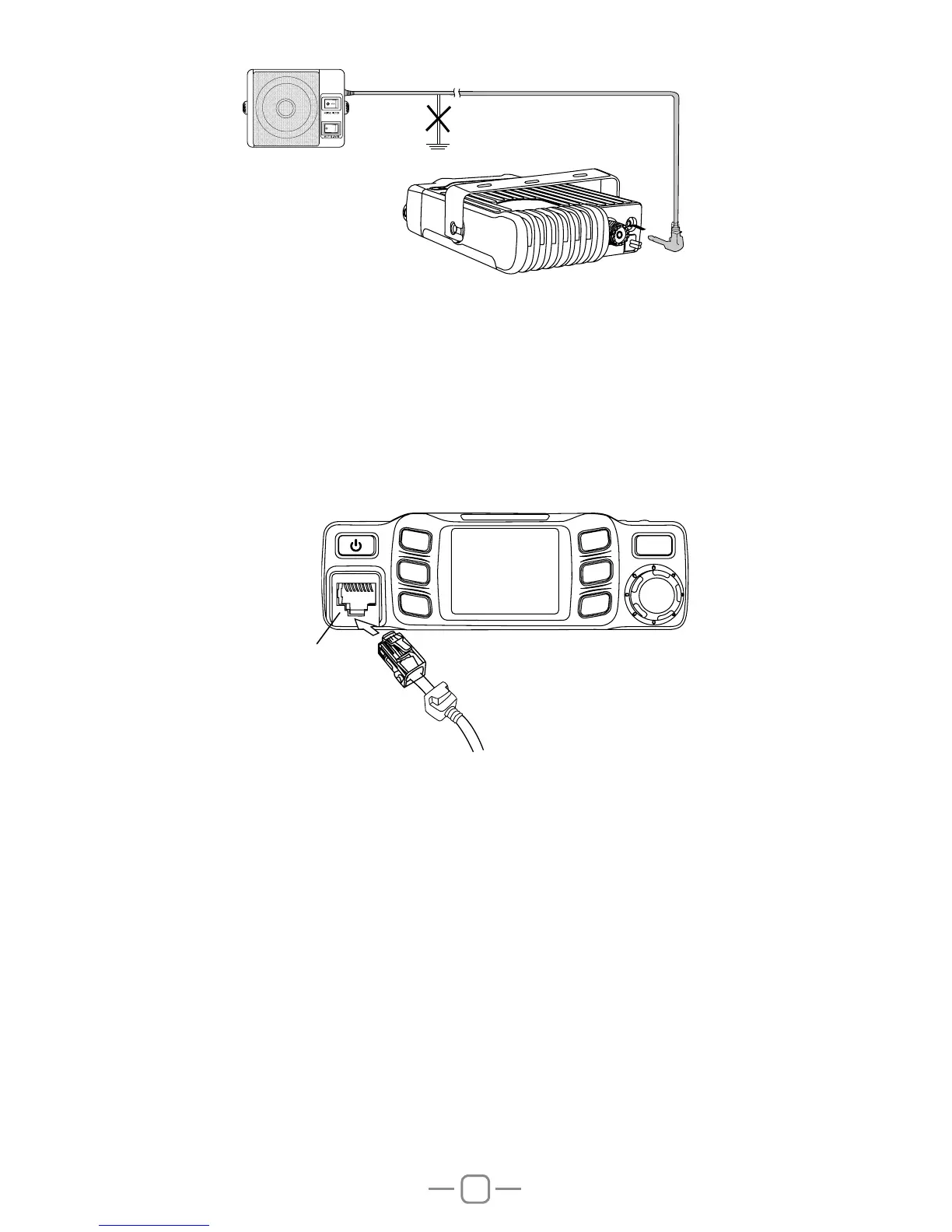

3.4.2 Microphone
For voice communications, connect a microphone equipped with an 8-pin modular plug
into the modular socket on the front of the main unit. Press irmly on the plug until the
locking tab clicks.
CRT MS 120E
Ground
Error
Microphone
connector
E
X
T
S
P
A
N
T
MIC
P1
FUNC
P4
P5
P6
P2
P3
