WATER FLOW DIAGRAMS - 15

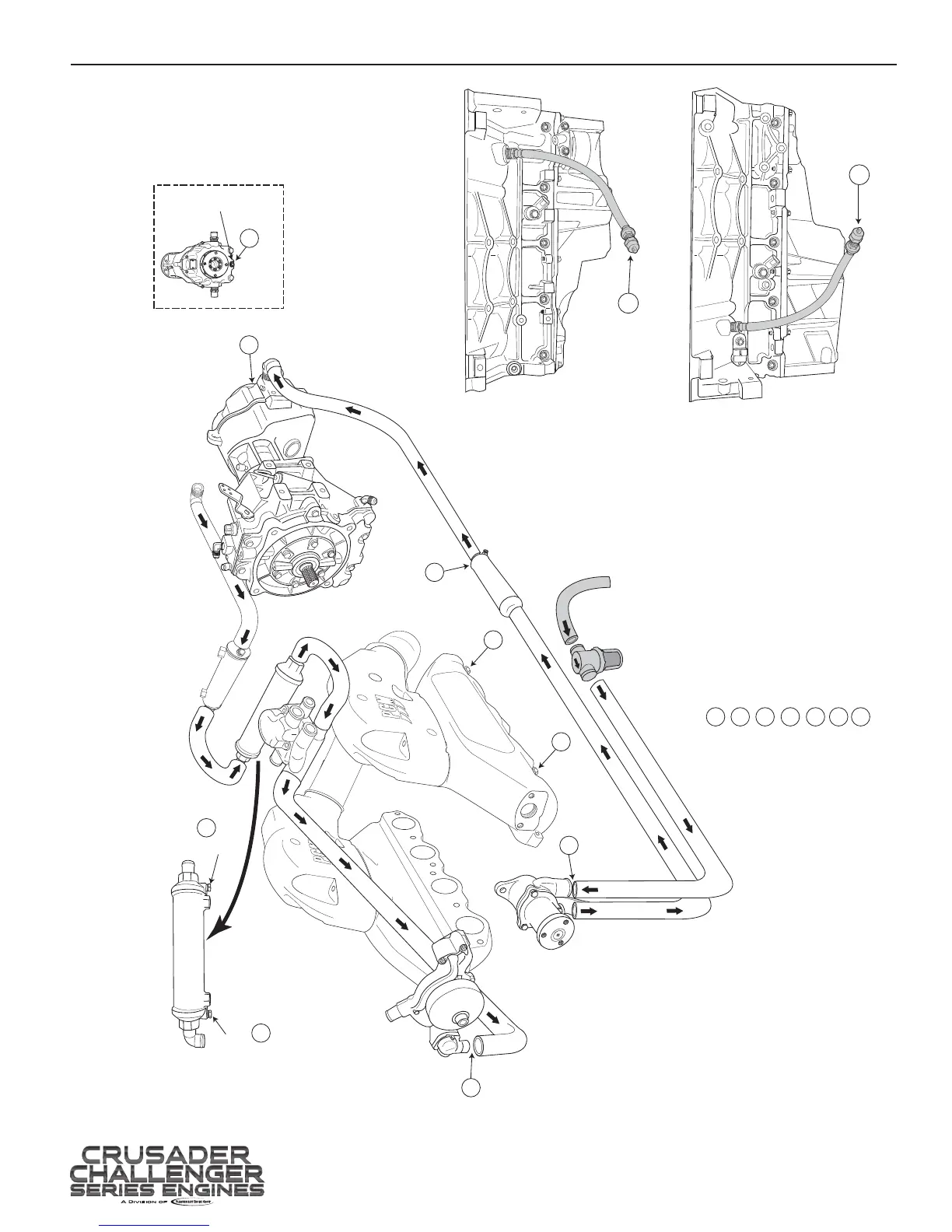

Figure 15-9 6.2L Supercharged VDrive Crusader Challenger
4
2
5
Intercooler Cooler - Rear
View
6
6
Raw Water
Drain
Raw Water
Drain
PCM V-Drive
S
A
E
L
P
E
R
U
C T
FA
R
I
G
N
E
N
E
G
P
U
OR
REW
OP
P
L
US
A
R I
T
O
84.1
M
A
I
ED
N
U
SA
Raw Water
Drain Plug
1/2”
Square
5
3
3
Note: This diagram is for illustration purposes only. The actual routing and/or shape of the hoses may vary slightly depending on installation.
1 2
4
5 6
Drain Locations
- Circulation Pump - Remove Inlet Hose - Raw Water Pump - Remove Hoses
3
- Transmission Cooler - Remove Hose or Drain Plug - VDrive - Remove Plug - Intercooler Cooler - Remove either Drain Plugs - Manifolds - Remove Both Drain Plugs
7
- Block Drains - Remove Drain Caps
6.2L LSA Challenger Raw Water Cooling Drain Locations
Port Side Block Drain
7
Starboard Side Block Drain
7
1
