30
L510032-16
ENGINE MAINTENANCE - 11
LUBRICATION
Shift Cable (if equipped)
Lubricate pivot points and exposed cable (Figure 11-4)
with SAE 30W-30 engine oil.

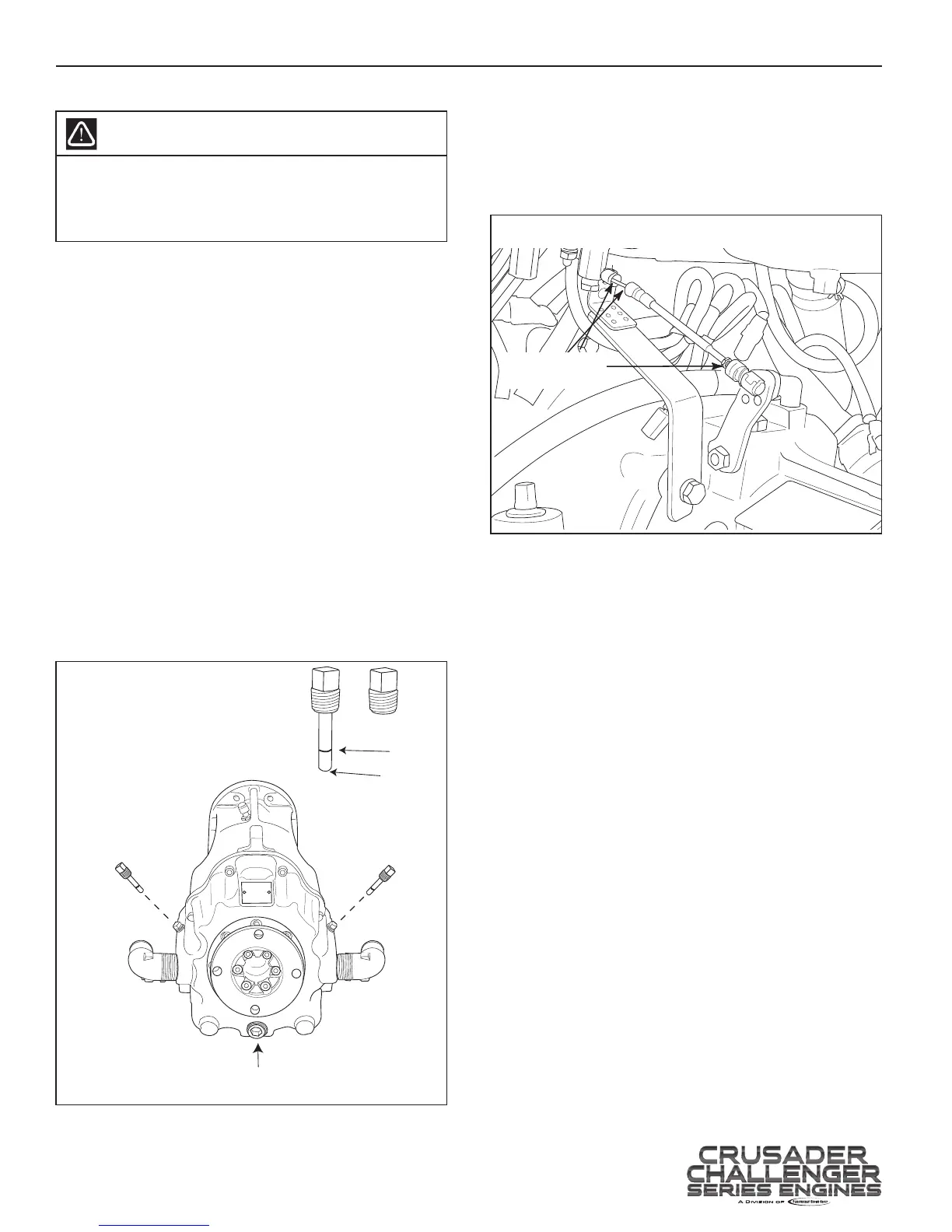

Figure 11-4 Typical Shift Cable
LUBRICATION
POINTS
Figure 11-3 Transmission Service Location
WARNING
Do not attempt to remove the transmission drain/
ll plug while the engine is running or while the
transmission is hot. Hot transmission uid could be
sprayed from the hole.
Challenger Power-Plus V-Drive Transmission
Oil Fill/Drain
Plug
Oil Fill/Drain
Plug
Raw Water
Drain Plug
PLEASURECRAFT
ENGINE GROUP
POWER PLUS
RATIO
1.48
MADE IN USA
FULL
LOW
R041091
OR
All Challenger Power-Plus “V” Drive transmissions
are designed to be ‘Maintenance Free’. Inspect
uid level after the rst 25 hours of use and annually
thereafter. Fluid should only be changed if evidence
of contamination is present. Use Mobiltrans SHC 50
synthetic transmission lubricant. Crusader Challenger
P/N: R190250.
1. Remove the drain/ll/dipstick plug from the
transmission. Wipe the dipstick clean and insert
into transmission - Do Not Screw the dipstick into
the hole. Remove and observe the uid level.
2. The uid level should be between the FULL
mark and the end of the dipstick. If a plug is
used, uid level should be to the bottom of
the threaded hole. If low, add the specied uid
through the threaded hole to the proper level.
NOTE: The transmission uid is a very high viscosity, to
make adding uid easier, remove both ll plugs.
3. Replace the drain/ll/dipstick plug(s) and tighten
securely.
