UM-CV-751-RP-F17-Q113V1 www.rackmountsales.com

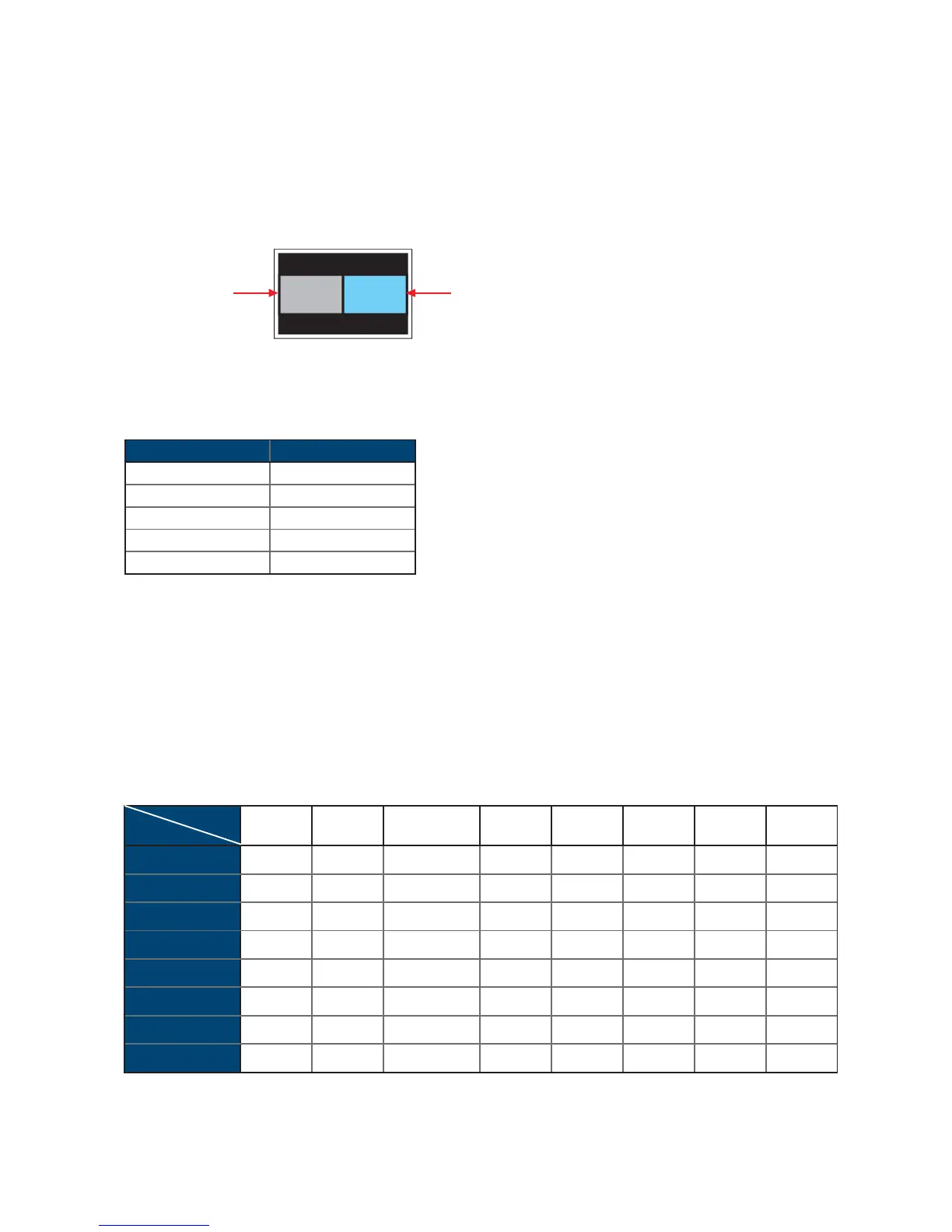

Sub screenMain screen
P. 9
RMP-161-F17
Mode
Display the Sub screen next to the Main screen.
OSD Menu → MISC → PIP Mode → PBP
Size
LCD Monitor Main / Sub screen
1920 x 1200 955 x 716
1920 x 1080 955 x 716
1440 x 900 715 x 536
1366 x 768 678 x 508
1280 x 1024 635 x 476
< 2.3.2 > Picture By Picture ( PBP )
< 2.3.3 > PIP / PBP Source
To select an input signal for PIP / PBP Sub screen.
OSD Menu → MISC → PIP Source → VGA / S-Video / Composite / DVI / HDMI / SDI / YPbPr / TV
Sub
Main
VGA S-Video Composite DVI-D HDMI SDI YPbPr TV
VGA
xo o ooooo
S-Video
ox x oooox
Composite
ox x oooox
DVI
oo o xxooo
HDMI
oo o xxooo
SDI
oooooxxo
YPbPr
oooooxxo
TV
ox x oooox
The PIP / PBP is operable in the following table :
