UM-CV-751-RP-F17-Q113V1 www.rackmountsales.com

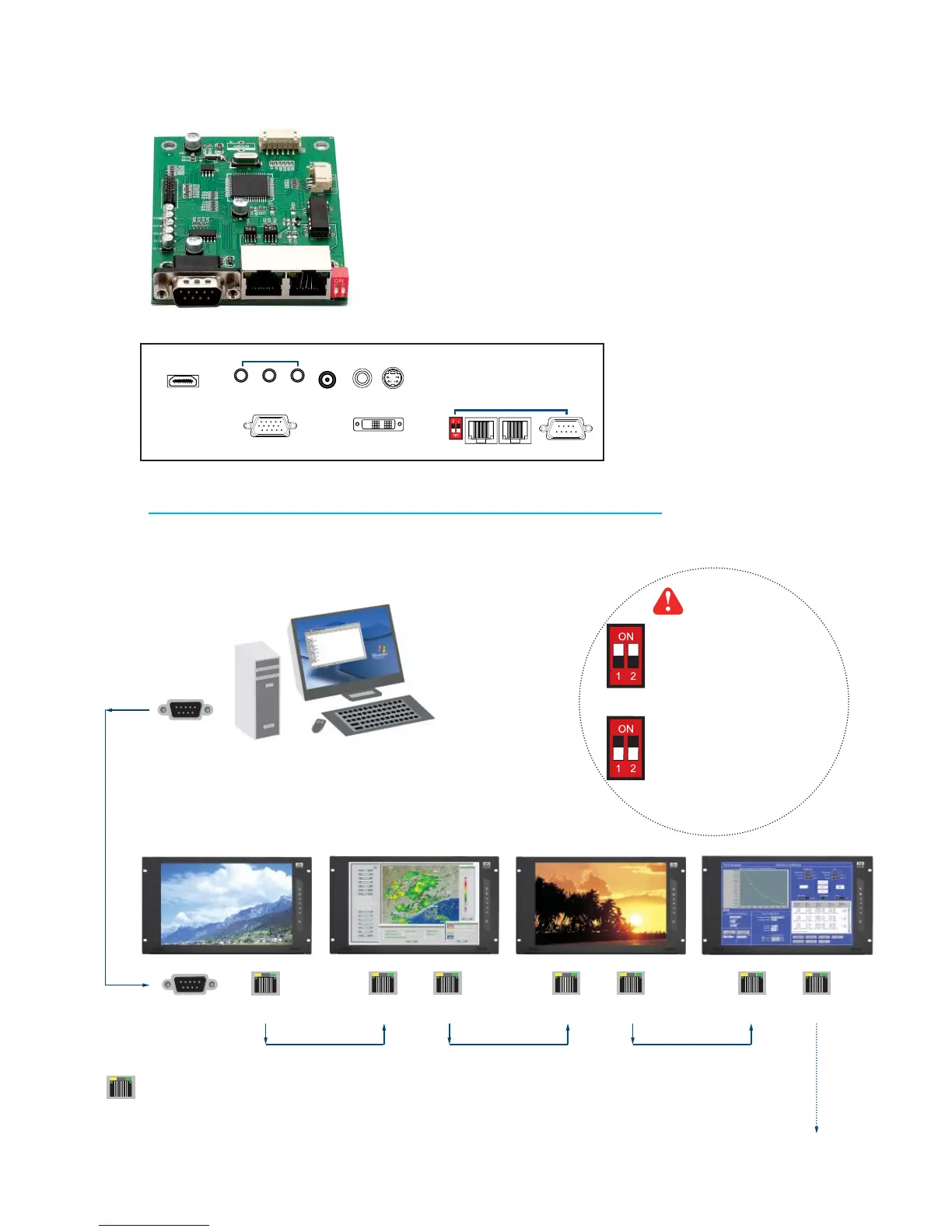

< 3.2 > Options : MCS
For the 1st and last display,
push the set switch upward
Set switch
For other daisy chain displays,
push the set switch downward
LINK
OUT
IN OUT
RS-232C
Cat5 / 6 cable
max. 300 meters
up to 64 displays
Daisy chain up to 1,000
meters and 64 displays
RJ-45 jack
IN OUT IN OUT
Cat5 / 6 cable
max. 300 meters
Cat5 / 6 cable
max. 300 meters
15 feet serial cable
( over 15 feet, extender required )
More control is always good. Especially when it is necessary and
easy. Austin Hughes provides MCS solution to control the OSD of
various CyberView LCD display up to 64 units.
The RS-232C is used for the communication between the PC and the
fi rst display via a 15 feet serial cable while the CAN bus is used for the
various LCD displays cascade together via CAT 5/6 cable, and daisy
chain up to 1,000 meters.
Designed for use with CyberView / UltraView LCD displays, Austin
Hughes provides a MCS input module without using additional space
or power and it comes standard with a 2-year warranty.
( Multi-display Control )
*** Please download the protocol of MCS control at :
http://rackmountsales.com/v/pdf/citummcs.pdf
Audio
Power
out - in - in
Video PC
HDMI S-VideoBNC
MCS
VGA DVI-D
Linkinoutset
*** For MCS option, casing depth will be changed.
RMP-161-F17
P. 11
