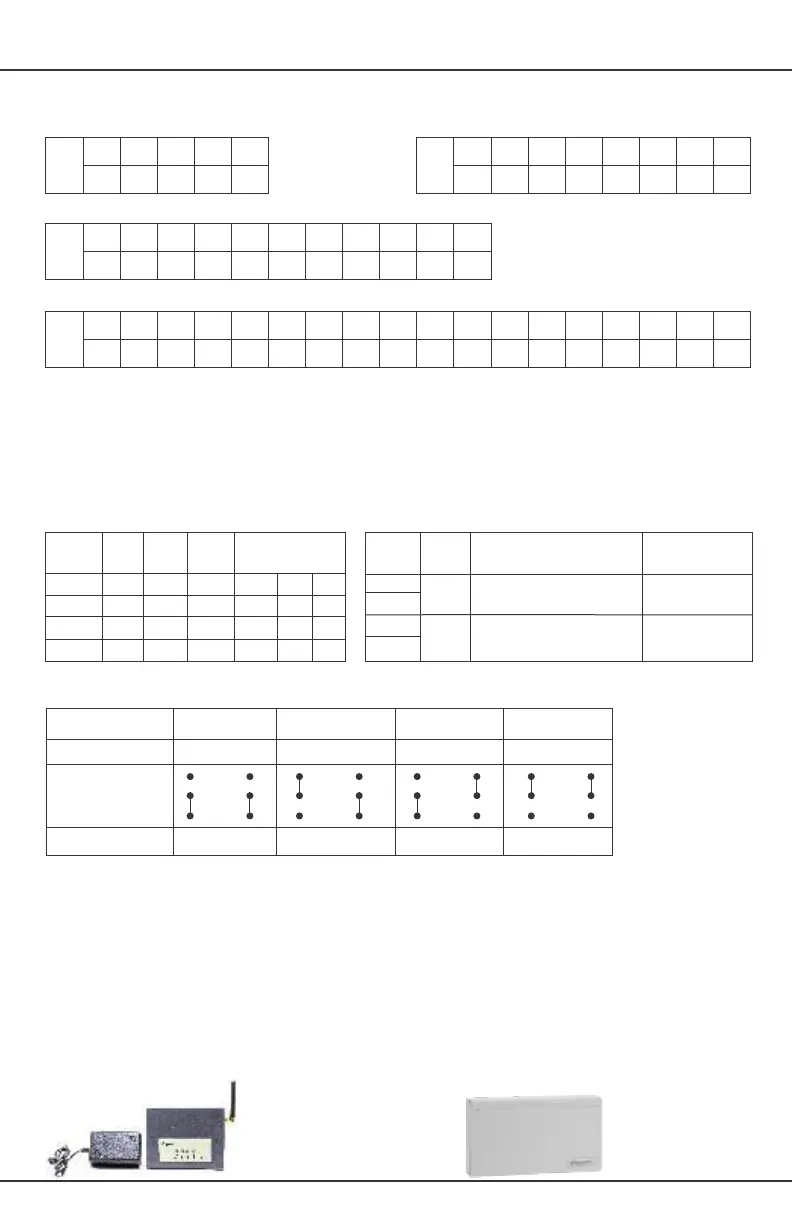

(A) TRUNK and EXTENSION ( TRK/EXT) CONNECTING PORT : ( Any type of phone set can connect )
General Installation Information
414
TRK 1
•• •• •• •••• •• •• •• •• •• •• •• •• •• •• •• •• •• ••
EXT1 EXT2 EXT3 EXT4 EXT5 EXT6 EXT7 EXT8 EXT9 EXT10 EXT11 EXT12 EXT13 EXT14TRK 2 TRK 3 TRK 4
61 62 63 64 21 22 23 24 25 26 27 28 29 30 31 32 33 34
CODE
308
TRK 1
•• •• •• •• •• •• •• •• •• •• ••
EXT1 EXT2 EXT3 EXT4 EXT5 EXT6 EXT7 EXT8TRK 2 TRK 3
61 62 63 21 22 23 24 25 26 27 28
CODE
206
TRK 1
•• •• •• •• •• •• •• ••
EXT1 EXT2 EXT3 EXT4 EXT5 EXT6TRK 2
61 62 21 22 23 24 25 26
CODE
104
TRK 1
•• •• •• •• ••
EXT1 EXT2 EXT3 EXT4
61 21 22 23 24
CODE
Note : (1) Never connect trunk line wire at extension port.
(2) Do not use loose AC 220V connecting point to avoid sparking.
(3) Installation place should be dry, airy & free from moisture.
(4) Properly pluged trunk wire & extension wire with EPABX port .
(5) Connect / Plug properly rosset box of telephone set.
(B) Configuration & Dimension
(C) Power Management
EPABX Power SMPS Battery Backup Req. No. of
Model Supply cum Charger (Optional) Battery & Rating*
104
PS N. A. N. A.
206
308 PS SMPS 12V Battery 1 no.,
414 SMPS Backup (without battery) 12V,7AH
EPABX Total TRK Extn Dimension (cm)
Model Port (Max.) (Max.) W H D
104 5 1 4 17 20 5
206 8 2 6 17 20 5
308 11 3 8 19.5 21 6
414 18 4 14 24 24 8
(D) FND DIP SWITCH (SW) SETTING :
DIP Switch status 1st FND 2nd FND 3rd FND 4th FND
Switch point
SW ON
SW OFF
FND Port
1 2
EXTN. 24EXTN. 22
1 2
EXTN. 23
1 2
EXTN. 21
1 2
Default setting as 1st FND.
Inspire 104/206/308/414 User Guide
12
N.A. (not applicable)
Voice Disa
? 1 CH VDC
? Welcome / Error
Busy / No Reply
? Day & Night Greeting
Relay & Paging Card
? Paging (Option to connect
external audio amplifier for
announcement)
? Relay (Option to connect
external EM Door Lock or
Electric Gadgets)
MMOH (120 sec )
? Music Recordable
? Voice Recordable
? Put on Hold Replay
(E) Optional Add on Card for 308/414:
(F) Optional Product :
? Lighting Protected
? RF Noise Filter
? Models
• 2 Ports
• 4 Ports
LPU
( Line Protection Unit)
FCT ( Fixed Cellular Terminal )
GSM based
Single SIM Support
Omini Directional Antenna
RJ 11 Telephone port
EPABX Trunk port Connectivity
Signal Strenght Indication
CLI (Caller ID)
To Next Page
