TECHNICAL DATA
Measuring range -80…50 °C pressure dew point resp. dew point in °Ctd
0…100 % RH
-30…70 °C
Type 0699.0401, FA 400 -20…50 °Ctd ≙ 4…20 mA
Type 0699.0402, FA 400 -80…20 °Ctd ≙ 4…20 mA
Type 0699.0403, FA 400 -60…30 °Ctd ≙ 4…20 mA
Accuracy: typical ± 2 °Ctd from -80…-40 °Ctd
± 1,5 °Ctd from -40…0 °Ctd
± 1 °Ctd from 0…20 °Ctd
Pressure range: -1…50 bar standard, high pressure version up to 350 bar
Power supply: 24 VDC smoothed (16...30 VDC/60 mA)
Output: 4…20 mA 3-Draht-Technik
Protection class: IP 65
EMV: DIN EN 61326
Operating temperature: 0…50 °C
Storage temperature: -40…80 °C
Burden for analogue output: < 500 Ohm
Screw-in thread: G 1/2" stainless steel
Material housing: Zinc alloy, PC, ABS
Sensor protection: Sintered filter 50 μm stainless steel
Connection: M12, 5-pole
Response time t95: < 30 seconds (dry)
< 10 seconds (humid)
Display: 4-digit LCD
Alarm relay: max. 60 V, 0.5 A, NO relay opens in case of alarm and power
failure, alarm value adjustable via keyboard, please see
page 9
Genauigkeit FA 410
0,0
0,5
1,0
1,5
2,0
2,5
3,0
-80-60-40-20 0 20
Taupunkt [°C]
Genauigkeit [°C]

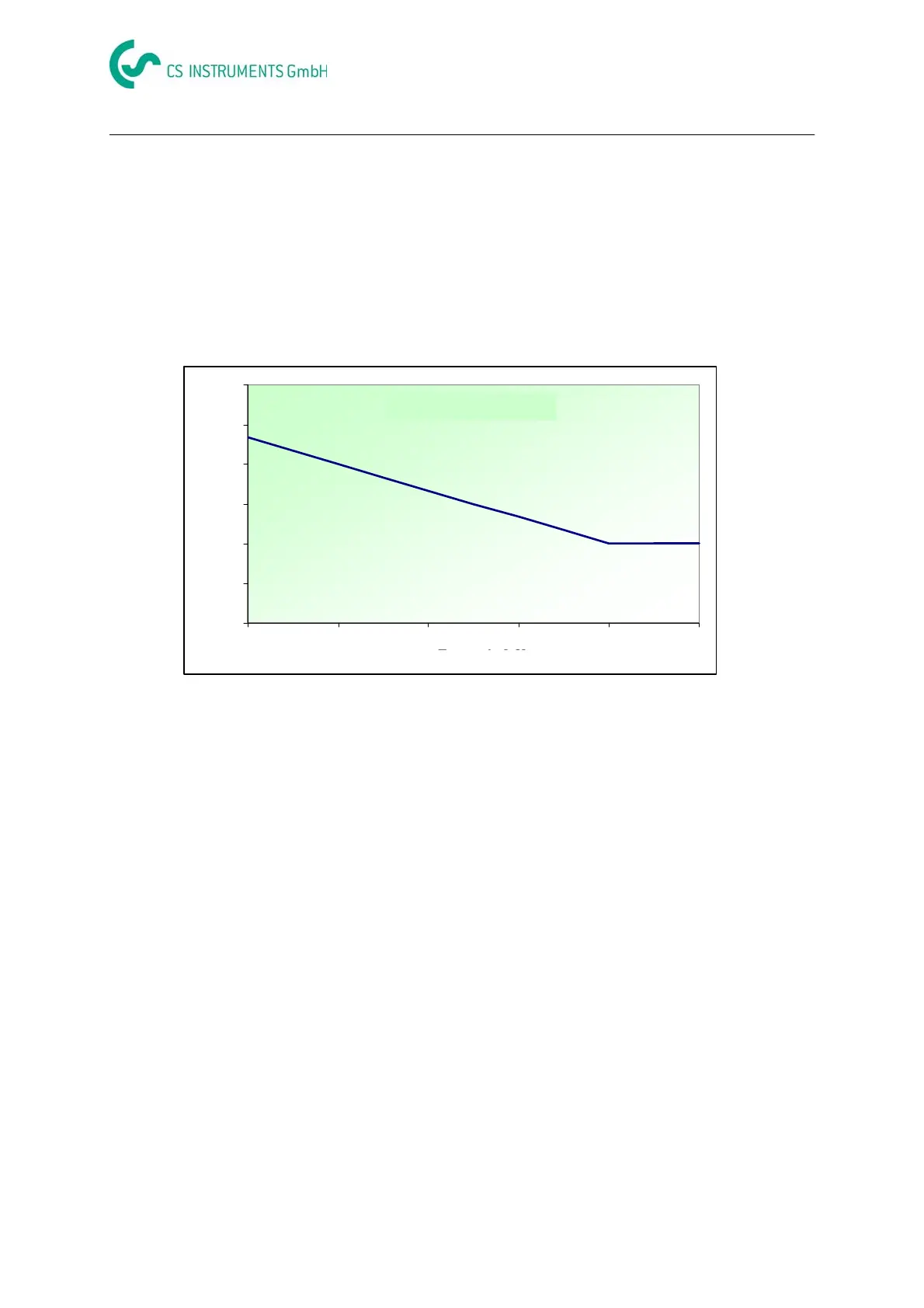

Accuracy FA 400
Accuracy (°C)
Dew point (°C)
