After completing the serial port changes (pressing the enter key will be required to complete
the action) the user will be prompted for a user name and password. To make changes to
cellular band units, the default user name is “cellband”. The user name for changing PCS
band units is “pcsband”. The password for both bands is “csi1234”. After entering the
password and pressing return the TMI main menu will appear. Note: by default the Set
Parameters option is disabled. To re-enable the user will press 1 and will be prompted for a
username and password. The default user name is csi and the password is csi1234.

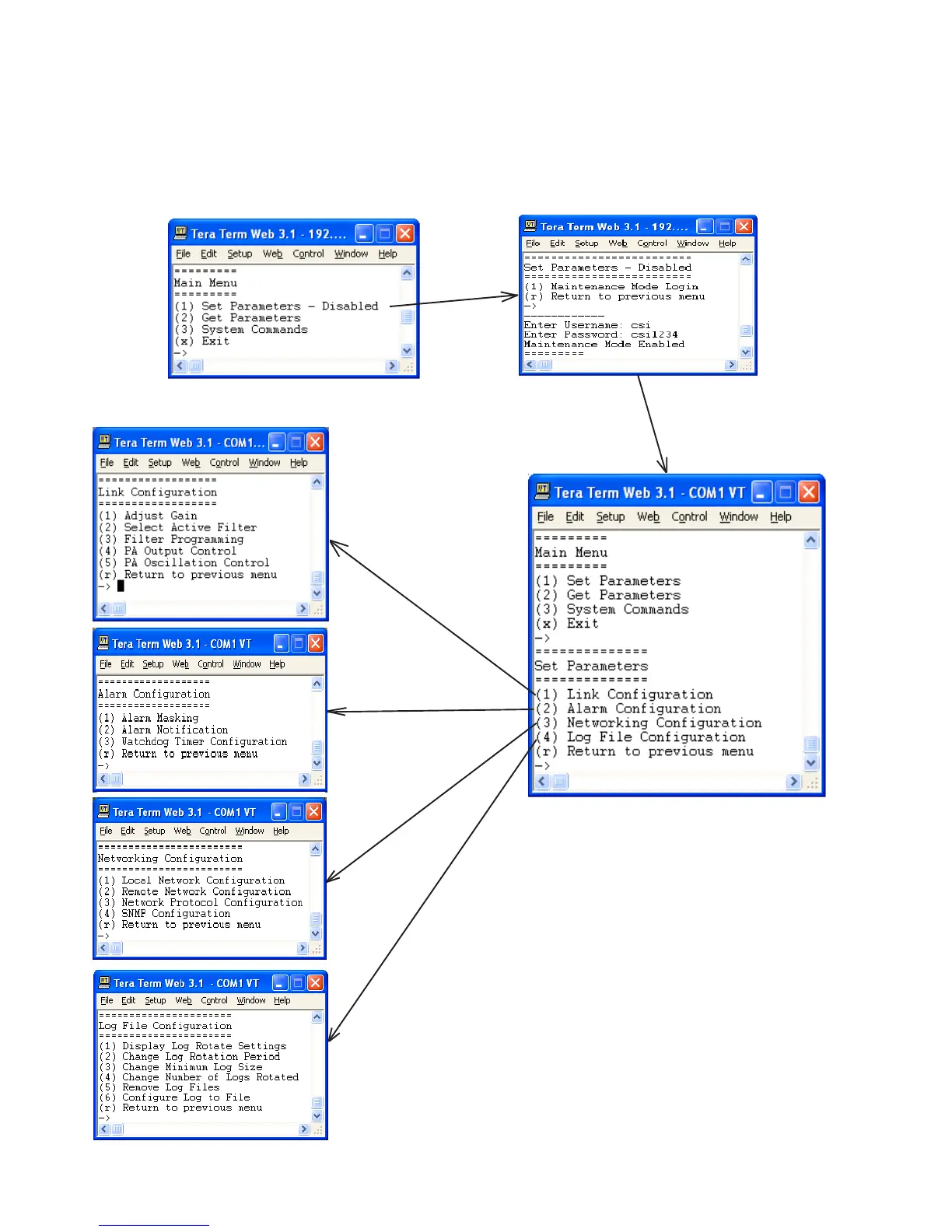

The actions displayed
are self-explanatory.
Pressing “1” will
continue to expand this
session screen and
allow the following
parameters to be set.
