CSI Reactr VS Series - Valve Body Assembly Sig

17

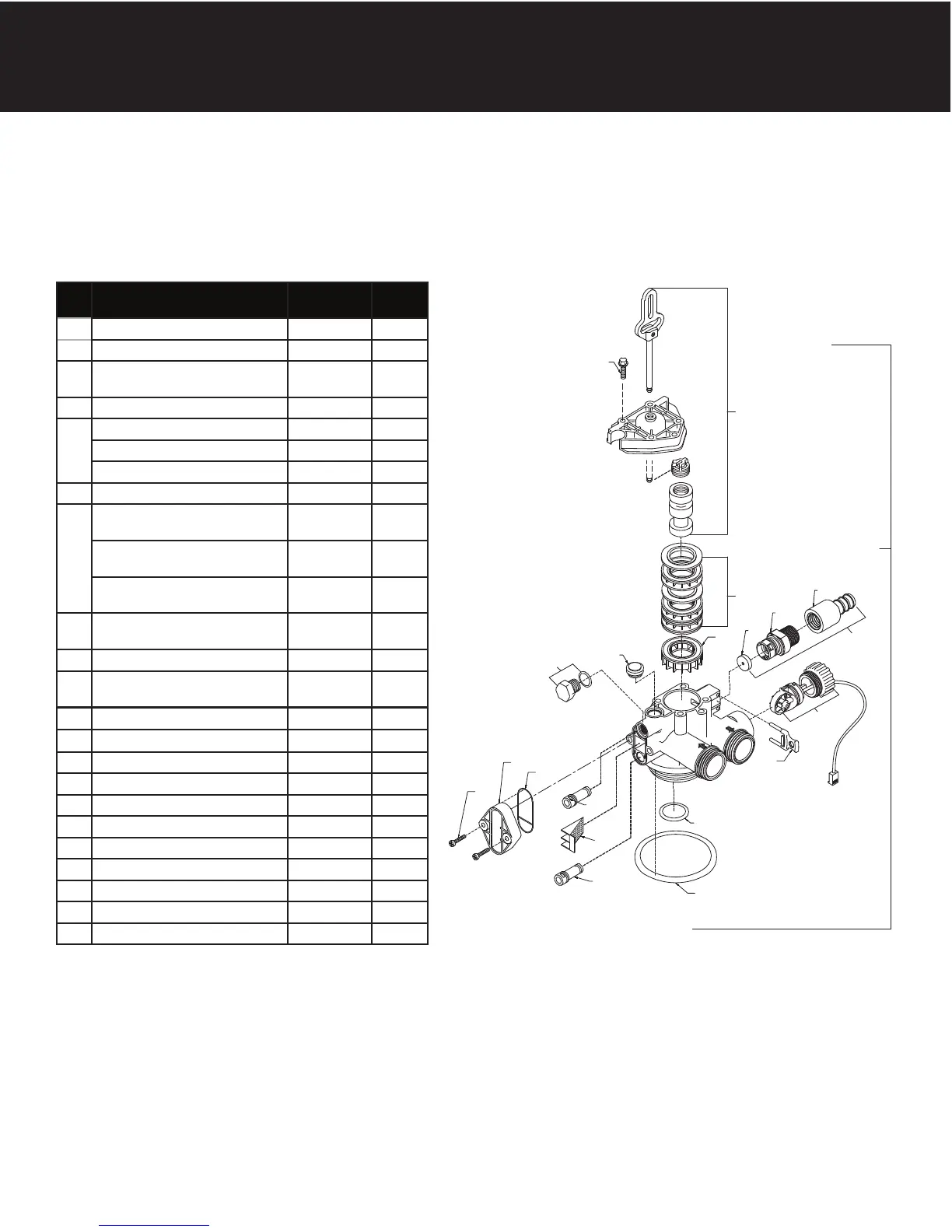

Valve Body Assembly - SIGNATURE 3
2
9
1
3
12
13
11
17
18
20/21
15
16
4
5
6
7
6A
8
14
19
10
10 O Ring & Filter Plug Assembly 20001X229 1
11 10-24 X 1 Screw 20001X226
1
12 Injector Cap 20001X223 1
13 Injector Seal 20001X224 1
14 Injector Plug & O Ring Assembly 20001X217 1
15 Screen 20001X222 1
16 Plug 20001X217 1
17 Valve O-Ring 20561X205 1
18 Dist. O-Ring 20561X204 1
19 Meter Assembly 20017X203 1
20 Valve Body Assembly VH2-B-D15 1
Ref
#
Description Part # Qty.
1 Piston Assembly 20001X231 1
2 10-24 X 13/16” Screw 20001X226 3
3 Seal and Spacer Kit Incl (5) #3
& (4) #4
20561X253 1
4 End Spacer N/S 1
5 Flow Control Button 5.0 GPM 20251X272 1
Flow Control Button 6.0 GPM 20251X274 1
Flow Control Button 7.0 GPM 20251X273 1
6 Plastic Flow Control Housing 20017X100 1
6A Flow Control Assy. 5.0 GPM-
PVC
20017X262 1
Flow Control Assy. 6.0 GPM-
PVC
20017X263 1
Flow Control Assy. 7.0 GPM-
PVC
20017X264 1
7 Drain Flow Fitting 1/2” NPT X
1/2”
20017X255 1
8 Drain Retainer 20017X254 1
9 O Ring & Brine Valve Cap
Assembly
20001X230 1
