Aerial Connection
The Box Aerial is supplied with 2.5 metres of coax lead and is for internal
mounting only. Do not cut, rejoin or lengthen the lead.
If the signal strength is insufficient, relocate the aerial and (if necessary) also
relocate the DualCom, extending the bus wiring and other leads as required.
An optional extra CS2057 aerial is available with a 5 metre lead. This item is
weartherproof and may be mounted externally where installation standards al-
low. Connect as shown below.

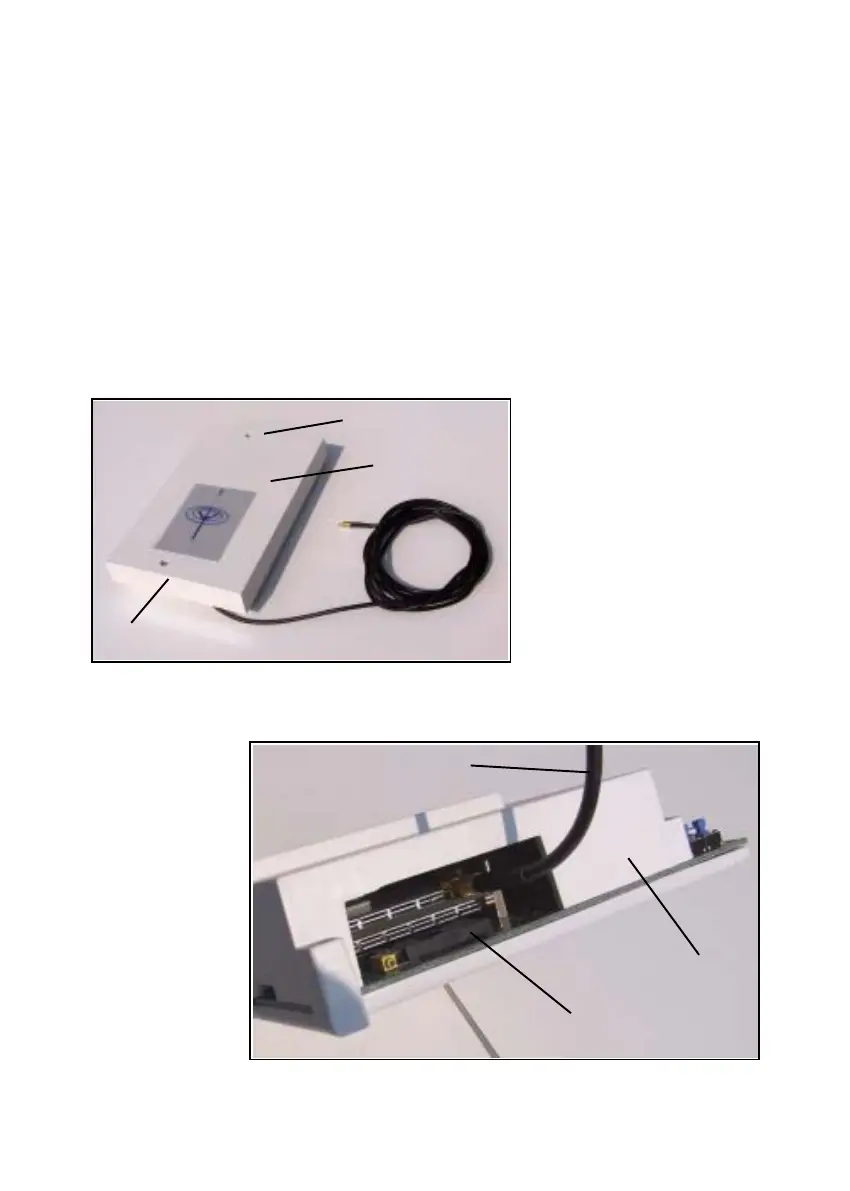

To mount, open the CS2058 case and fit screws through the case rear.
Plug the
aerial lead
connector
into the
DualCom
Install the aerial
upright with the
lead exiting the
case at the bottom.
Aerial Lead
SIM Card
DualCom
Aerial Lead
Aerial
To p
Bottom
Fig 7
