Appendix A
119

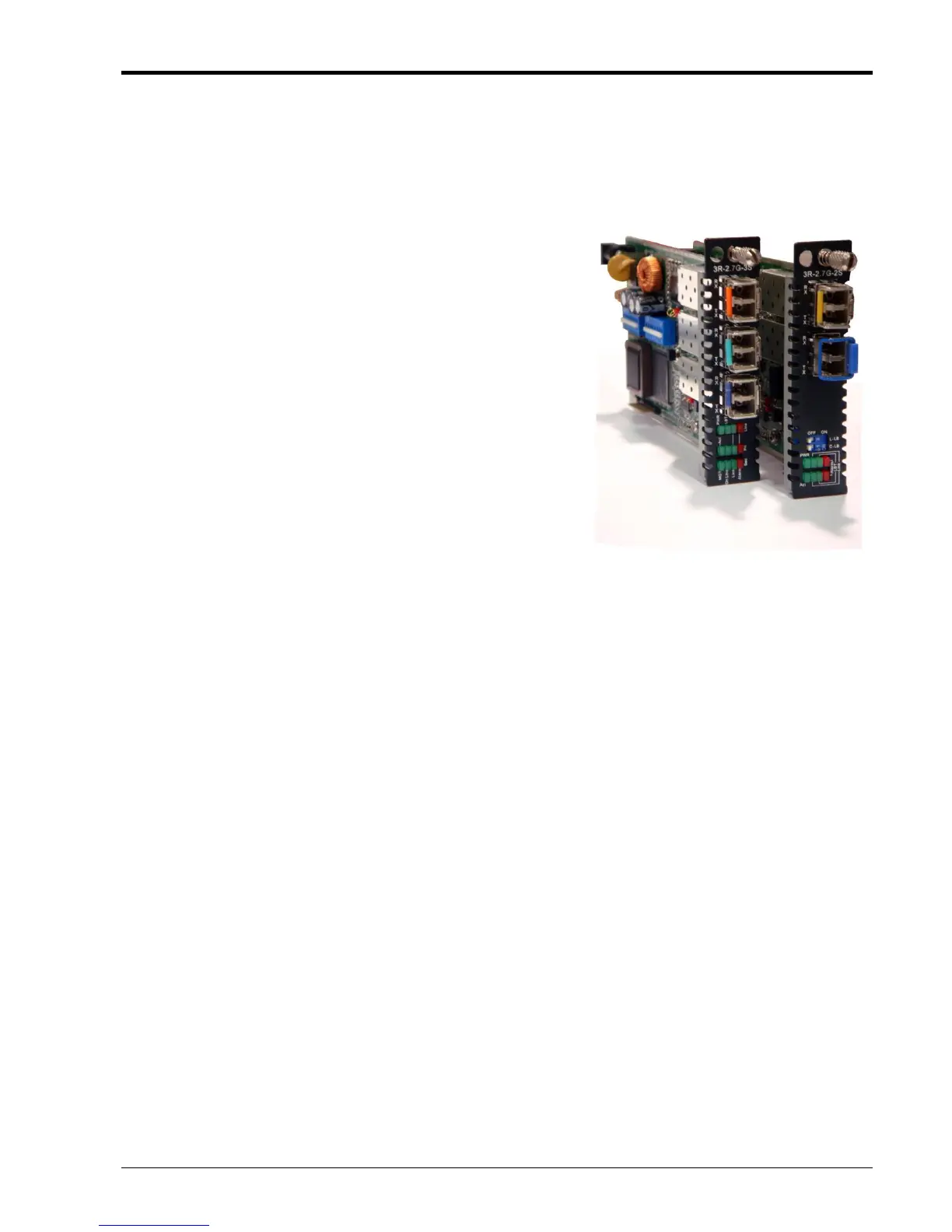

A.12 FRM220-2.7G-2S/3S 3R Transponder with Protection
The FRM220-2.7G-2S/3S is an optical 3R regeneration device, which provides re-amplification, reshaping and
retiming and offers fiber protection (3S model). The transponder card converts a data signal to the correct
wavelength for transmission on a specific channel by supporting SFP optics on line side to Primary or Secondary
interfaces. When the FRM220-2.7G-2S/3S 3R card is placed in the FRM220 rack with SNMP management, the
management can view the converter card's status, type, version, fiber link status and alarms. The card can be
configured to enable or disable the port, reset the port and set the desired data rate.
Features
Protocol transparent fiber media converter / repeater
Supports fiber redundancy by switching Primary to Secondary path (3S only)
Programmable receive optical threshold fiber protection
Up to 2.7Gbps
Clocking for Fast Ethernet, OC3, STM-1,STM-4, STM-16,FC-1, FC-2
Network management via terminal, web or SNMP in FRM220-CH20 chassis
Extend transmission from 2km to 120km over fiber
Perform 3R optical repeater function (Re-amplification & Reshaping, Re-clocking)
Supports Line / Primary / Secondary loop back test
Link Fault Pass through (LFP)
Auto Laser Shutdown (ALS)
Serial console for stand-alone management
When used with CH02M two slot chassis
Specifications
Optical Interface
Connector : LC, 1 Line SFP, 1 Primary SFP, 1 Secondary SFP
Data rate: Up to 2.7Gbps
Fixed rates for:
E3 (34.368M)
DS3/T3 (44.736M)
OC1/STM-0 (51.84M)
Fast Ethernet (125M)
STM-1/OC3 (155.52M)
STM-4/OC12 (622.080M)
STM-16/OC48 (2,488.32M)
FC-1 (1.0625G)
FC-2 (2.125G)
Regeneration type: 3R
Loop back: Line / Primary or Secondary
Cable type : SM 9/125m, MM 50/125m, 62.2/125m
Wavelength: 850, 1310,1550nm,
