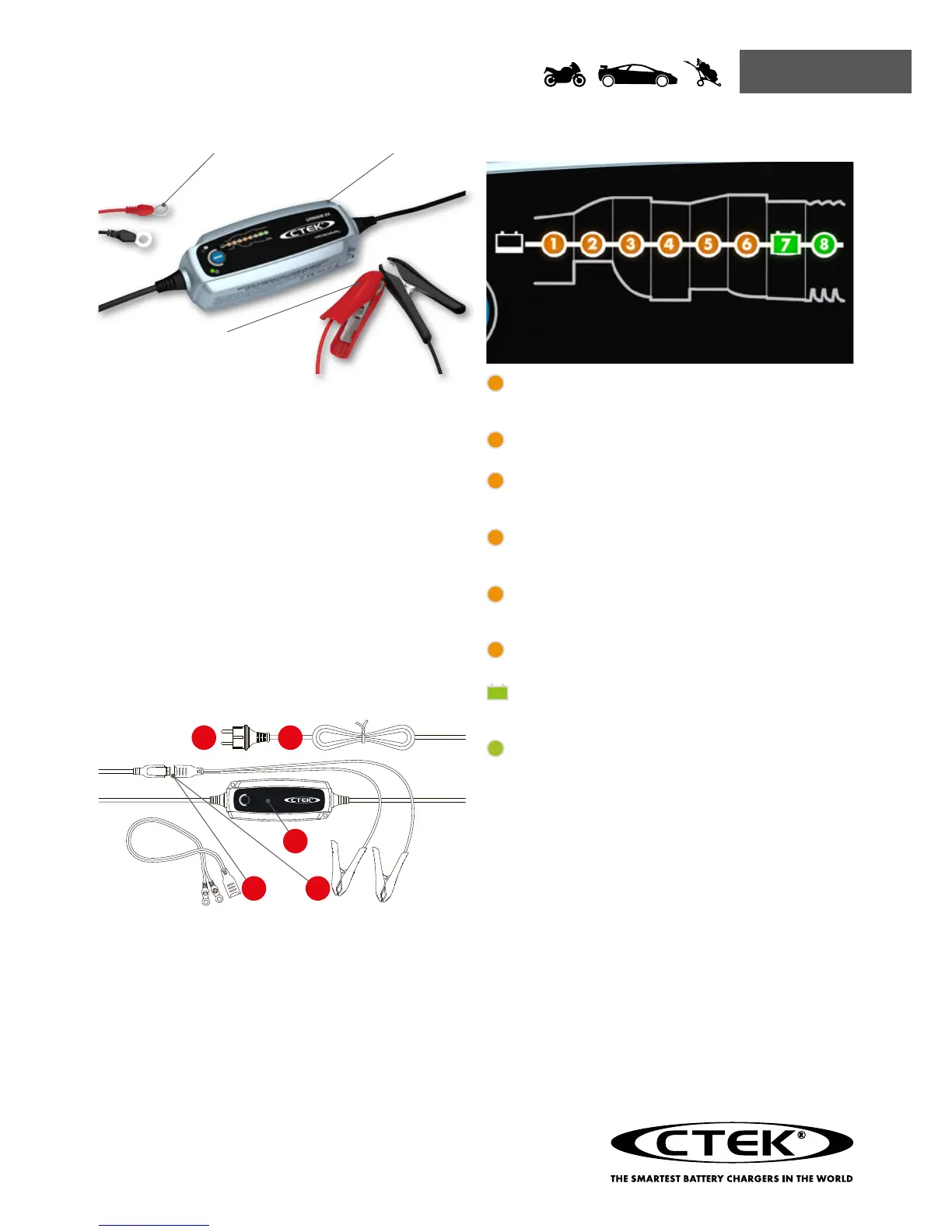

CTEK LITHIUM XS User Manual

www.ctek.com
CTEK COMFORT CONNECT–clamp
CTEK COMFORT CONNECT–eyelet M6 CTEK LITHIUM XS
CTEK
LITHIUM XS
12V/5A
Complete LiFePO
4
battery care — unique and patented system to
recover, charge and maintain LiFePO
4
batteries to maximise performance
and extend life.
Safe to use — user safety through spark free operation and reverse
polarity protection. Vehicle electrical safety through exceptionally clean
voltage and current delivery with no surges or spikes. No need to discon-
nect battery from the vehicle when charging.
Connect and forget — simple plug and play operation. Manual Reset
available.
Unique 8 step charging — the patented 8 step programme tests
battery condition and, charges and maintains to ensure maximum LiFePO
4
battery life and performance. FLOAT/PULSE maintenance ensures ideal
battery care during periods of inactivity.
Extends battery life — the unique features of CTEK chargers combine
to maximise performance and extend LiFePO
4
battery life.
20018386C 56–908 EN
UNIQUE 8 STEP CHARGING FROM CTEK
1
STEP 1 ACCEPT
Tests if the battery can accept charge. This step prevents charging from
proceeding on a defective battery.
2
STEP 2 BULK
Charging with maximum current until approximately 90% battery capacity.
3
STEP 3 ABSORPTION
Charging with declining current to maximize up to 95% battery
capacity.
4
STEP 4 ANALYZE
Tests if the battery can hold charge. Batteries that can not hold charge
may need to be replaced.
5
STEP 5 COMPLETION
Final charge with reduced current up to approximately 98% battery
capacity.
6
STEP 6 MAXIMIZATION
Final charge with maximum voltage up to 100% battery capacity.
7
STEP 7 FLOAT
Maintaining the battery voltage at maximum level by providing a constant
voltage charge.
8
STEP 8 PULSE
Maintaining the battery at 95–100% capacity. The charger monitors the
battery voltage and gives a pulse when necessary to keep the battery fully
charged.
CONNECT AND FORGET
4 2
3
11
1. Connect the charger to the battery.
2. Connect the power cord to the power outlet. The power-on lamp is lit.
3. Charging starts.
4. Stop charging at any time by disconnecting the mains cable from the
wall socket.
GUARANTEED QUALITY WITH CTEK
CTEK customer support is available to answer any questions related to
charging and CTEK chargers. Safety, simplicity and flexibility characte-rizes
all products and solutions developed and sold by CTEK. CTEKsupply charg-
ers to more than 60 countries throughout the world. CTEK is also a reliable
OEM supplier to many of the world’s most prestigious car and motorcycle
manufacturers.
Contact customer support: info@ctek.com

CTEK LITHIUM XS Specifications

General

Input voltage	220-240 V
Input frequency	50/60 Hz
Battery voltage	12 V
Cable color	Black
Operating temperature (T-T)	-20 - 50 °C
Number of batteries supported	-
Product color	Black, Silver

Weight and Dimensions

Depth	168 mm
Width	65 mm
Height	40 mm
Weight	600 g
