CTI 2500-VP15xx Quick Start Manual V1.7
CHAPTER 1
HARDWARE OVERVIEW AND INSTALLATION
1.1 Introduction

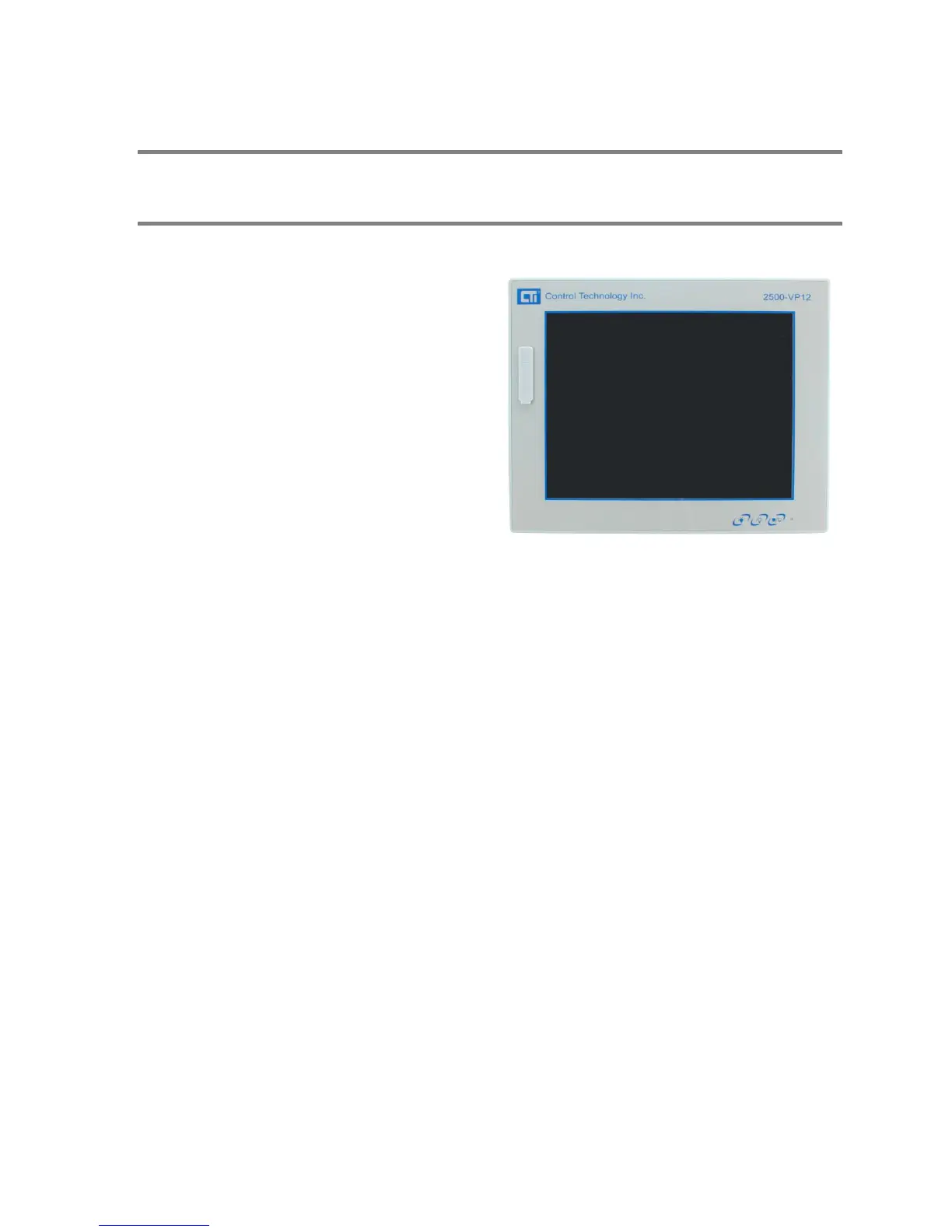

The CTI 2500-VPxx Visualization Panel is a
color, touchscreen HMI (Human Machine
Interface) panel, available in 15” or 12” sizes.
It is especially suitable for process control
applications that require advanced graphical
process visualization, intuitive operational
controls, process data trending, and process
alarm history. The 2500-VPxx HMI panel is
available either integrated with powerful
zenon
®
HMI / SCADA software or as a user
configurable Windows 7 Embedded operator
panel ready for use with your own software.
1.2 Visualization Panel Features
1.2.1 Hardware Specifications
Processor: Intel® Atom™ N2600 dual-core 1.6GHz CPU
Resolution: 15” or 12” 1024 x 768 XGA Color TFT LCD
Brightness: Super Bright 400 cd/m²
Touchscreen: 5-wire, Analog Resistive
Memory: 2GB of DDR2
Storage: 32GB CFast Compact Flash Card
Serial Port: 2 x Isolated RS-232 ports; 2 x Isolated RS-422/485 ports (with optical
isolation design of 3.75KV)
USB Port: 5 x USB 2.0 (Host)
KB/MS: 1 x PS2 Keyboard and Mouse
LAN: 2 x Gigabit Ethernet controllers
Chassis: Front Panel NEMA4/IP65 Compliance
Materials: Aluminum (Front Panel), PC + ABS (Bezel)
Cooling: Passive; Fanless
Power Input: DC 9 ~ 33V
Consumption: 45W
Op. Temp.: 0 ~ 50°C (32 ~ 122ºF)
Weight: 4.4 kg (9.7 lb)
