DISASSEMBLING / RE-ASSEMBLING
YOUR POWER CHAIR
Seat Removal：
Please follow instructions below to remove seat from power base.
1.Unplug joystick cable at rear of power chair.(See Fig. 13)
2.Press lock pins underneath front and along seat sides to unlock, then lift chair up to
remove.(See Fig. 14)
Body Shroud Removal：
3.Removing shroud also requires no tools.
4.Make sure free-wheeling lever is set to D so motors are engaged. (See Fig. 15) The
shroud is held by Velcro and is easily removed by lifting up. (See Fig. 16)
Re-assemble：
To re-assemble your power chair, you can repeat disassembly directions in reverse.
Taking apart your power chair enables you to save space when keeping it in storage or
c
arrying it along in your vehicle. Having power chair disassembled is easier than ever
s
ince no tools are required.

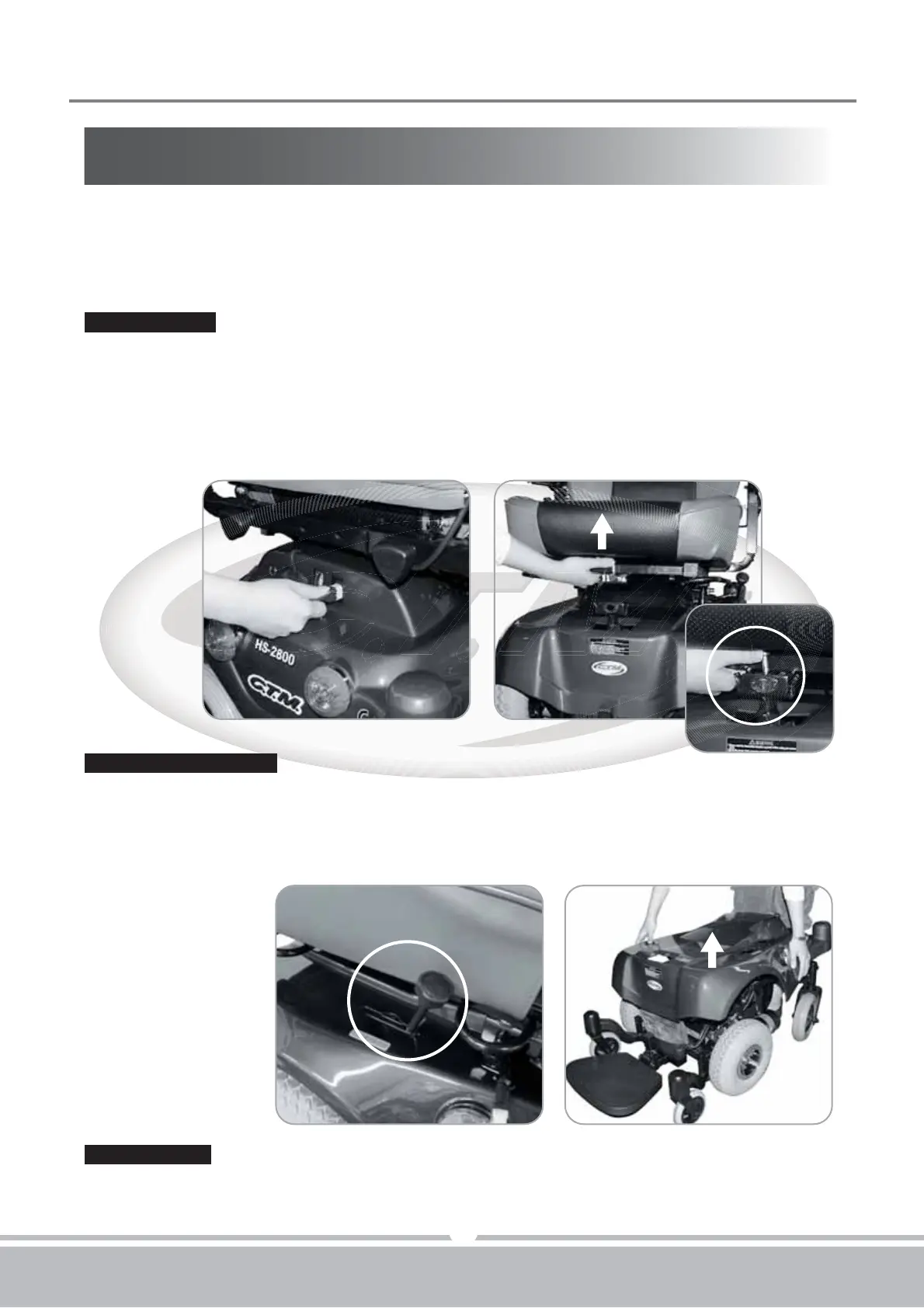

Figure 13
Figure 14
Figure 15
Figure 16
