The stickers on frame should match battery cables (negative and positive).
13

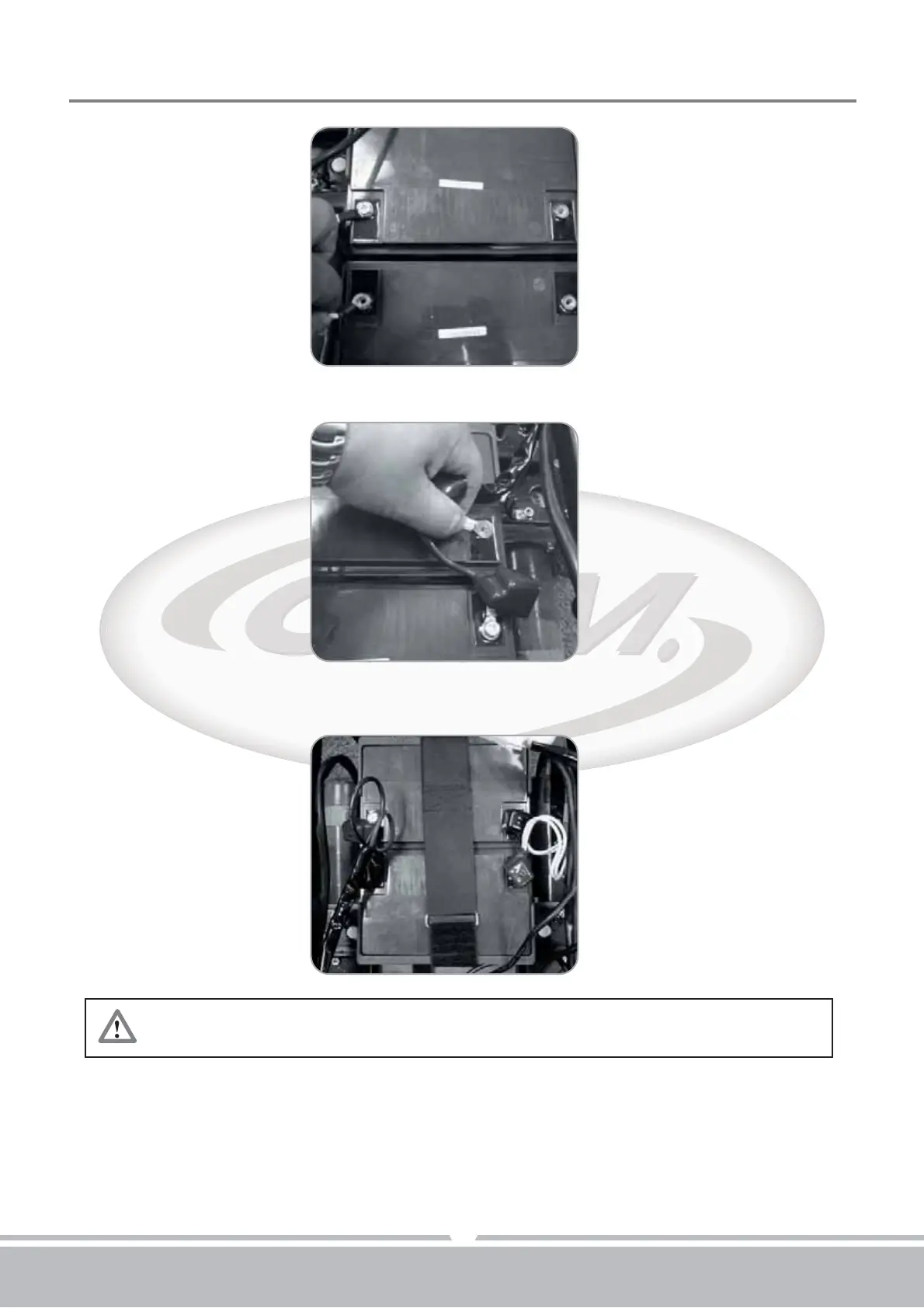

8.Follow steps 6 - 7 for another side of the cables. (See Fig. 21)
9.Make sure battery cables are tight and use Velcro strap to secure batteries in place.
(See Fig. 22)
10.Re-assemble shroud and seat once above is completed.
(Refer to page 11," DISASSEMBLING / RE-ASSEMBLING YOUR POWER CHAIR"
for guidance).
