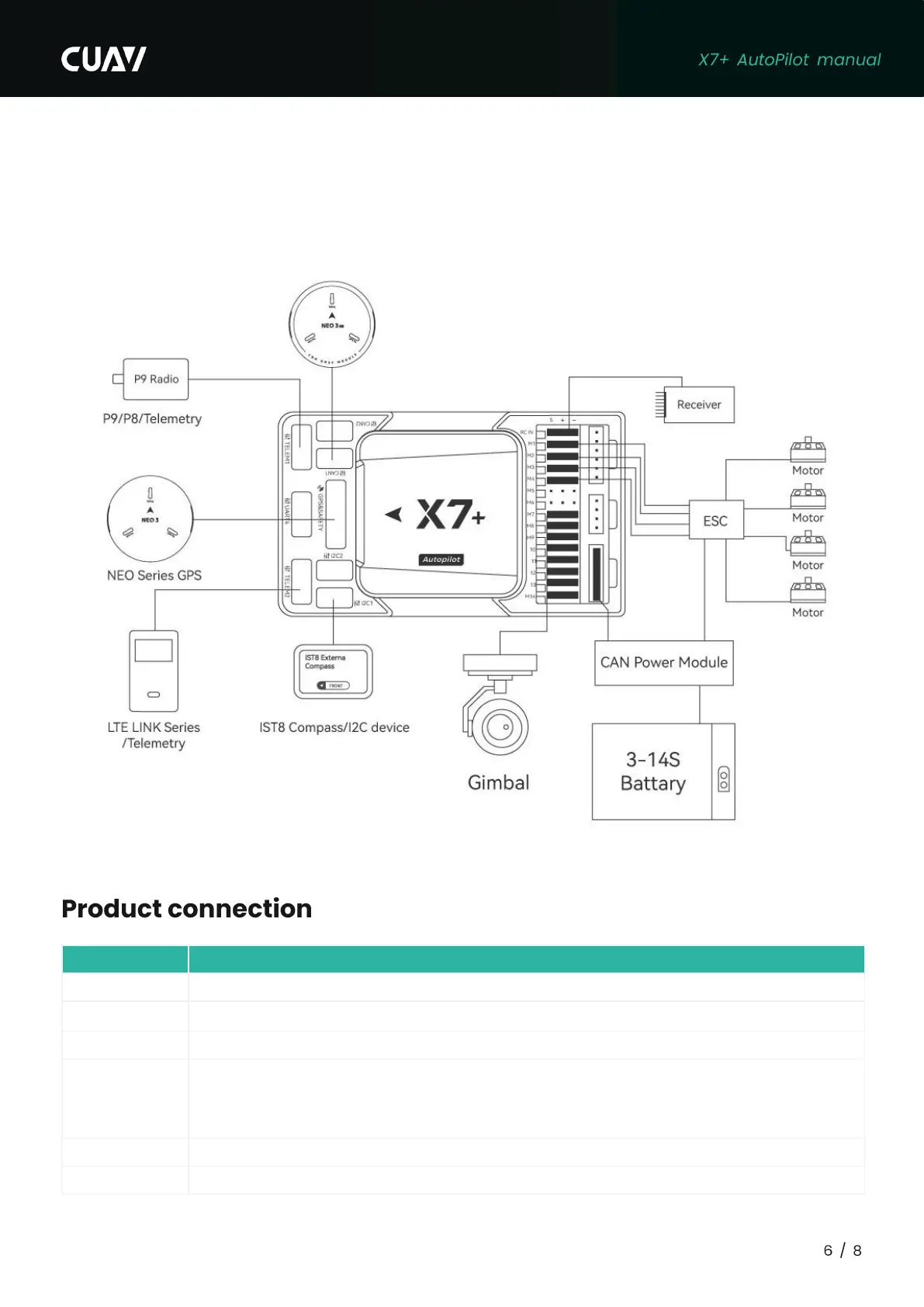

Hardware connection diagram
Take the quadcopter drone as an example:
Interface
Connected accessories
M1-M14
PWM signal output port, They can be connected to ESC and servo
RCIN
Connect PPM / DSM / SBUS remote control receiver
Power A
Connect HV_PM or other analog ammeter
Power C
Connect to CAN protocol power management module such as CAN PMU Lite or
CAN PMU
GPS&SAFETY
Connect GPS and safety switch
TELEM1
Connect P9 or other data transmission
