Cub Cadet 1000 Series Service Manual

Series 1000 and 1500
3

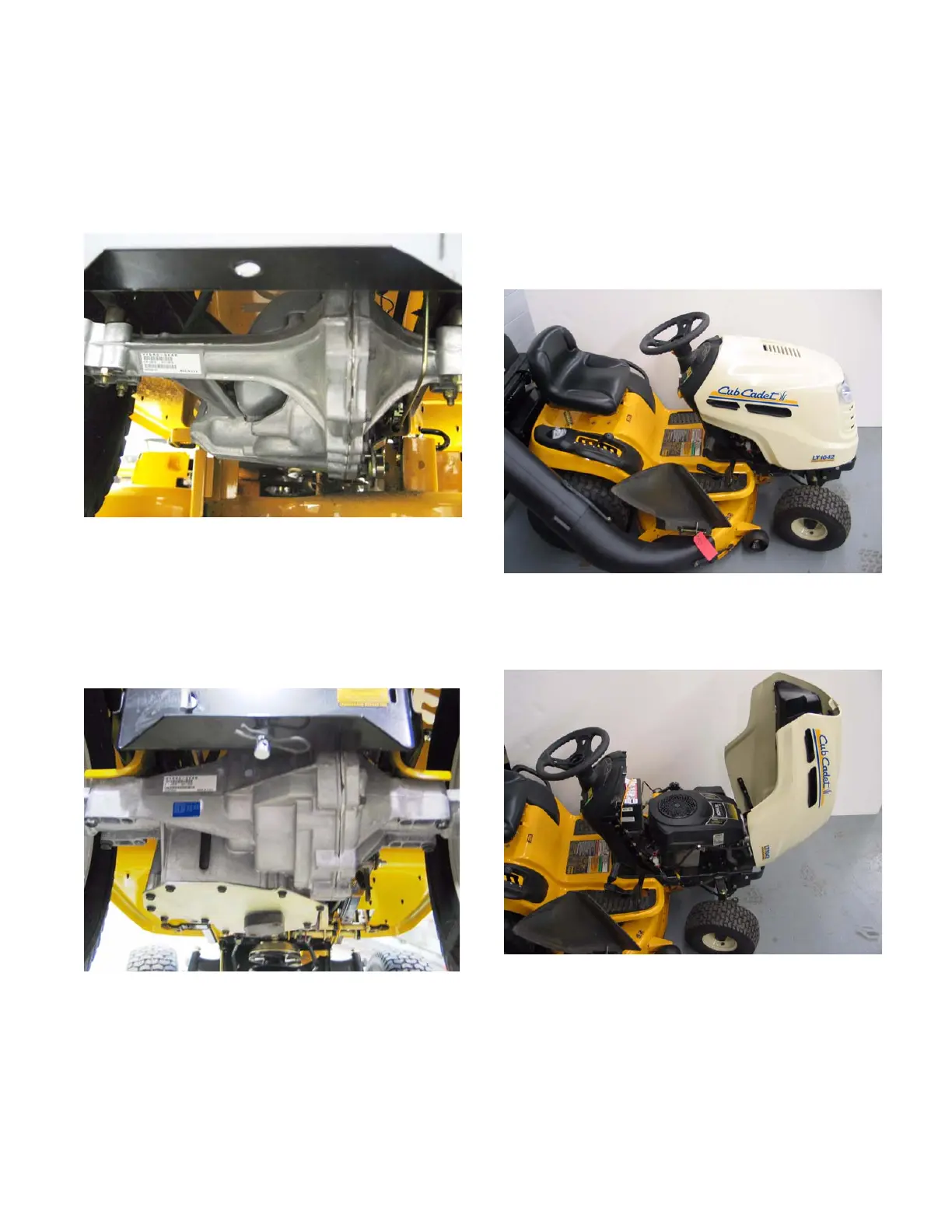

1.15. A Hydro-Gear 314-0610 hydrostatic transaxle
with a different final drive ratio is used on LT
models having 22” rear tires. Hydrostatic tran
-
saxles have a rocker pedal to control forward
and reverse direction and speed.
See Figure
1.15.
1.16. A Hydro-Gear 320-3000 hydrostatic transaxle is
used on GT designated models. This is a sub
-
stantially heavier duty IHT than the one used in
the LT models. Hydrostatic transaxles have a
rocker pedal to control forward and reverse
direction and speed.
See Figure 1.16.
Figure 1.15
Figure 1.16
2. NEW HOOD DESIGN
2.1. Early 1000 and 1500 Series tractors used a vari-
ety of steel hoods and side panels. Later ones
resembled those used on the 2000 and 2500
Series tractors.
2.2. The hood presently used on the 1000 series
tractors is a molded 1-piece design.
See Figure
2.2.
2.3. The 1000 Series hood opens from the back.
See Figure 2.3.
Figure 2.2
Figure 2.3
