28
• With belt tension relieved, carefully remove the
belt from around the left-hand spindle pulley.
IMPORTANT: Carefully allow the ratchet to pivot
rearward before removing it from the square hole.
• Remove the deck belt from around all pulleys,
including the deck idler pulley(s) and the electric
PTO clutch.
NOTE: The idler pulley(s) may have to be loosened,
but not removed, in order to remove the belt from
around them.

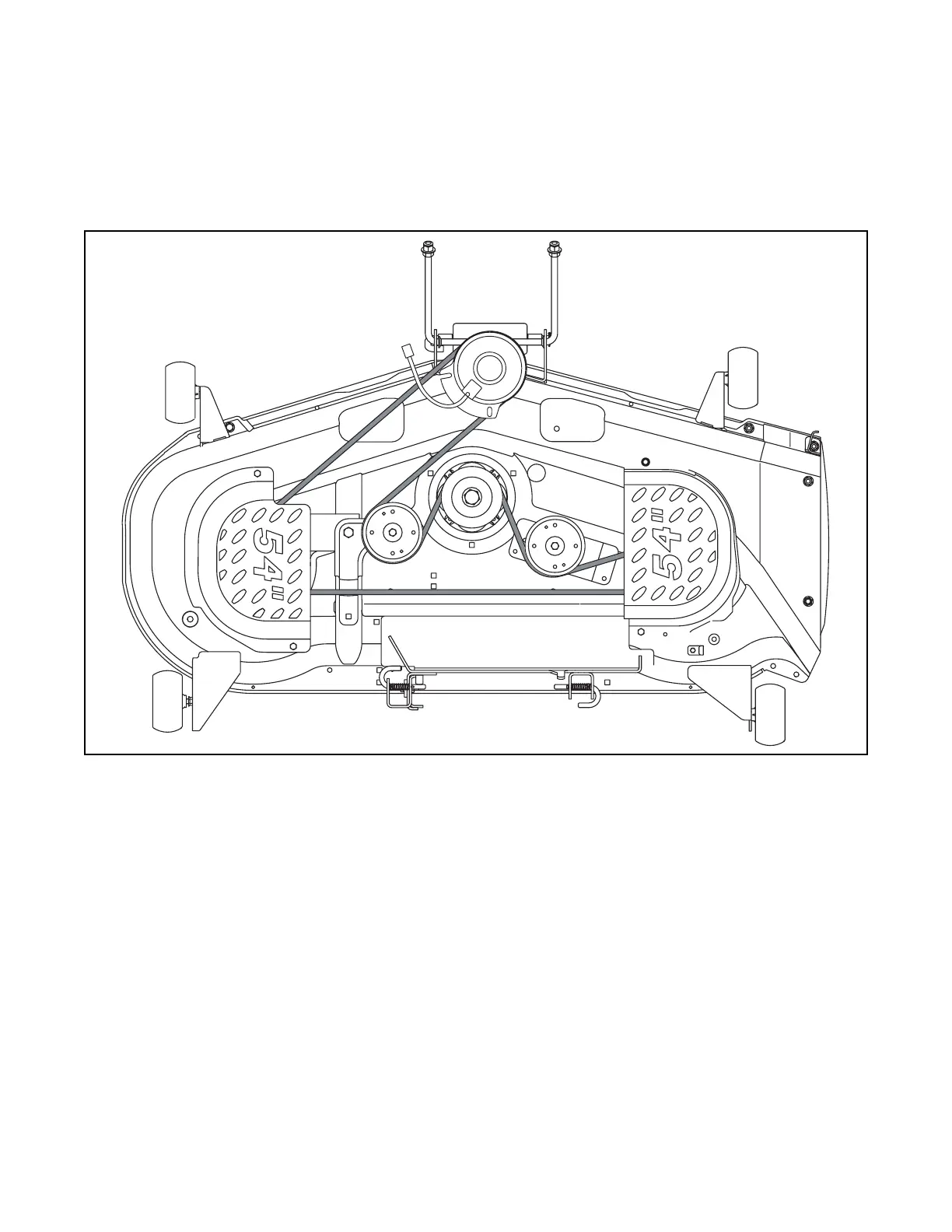

• Route the new belt as shown in Figure 24.
• Remount the belt guards removed earlier.
Figure 24
