SECTION 4: KNOW YOUR LAWN TRACTOR

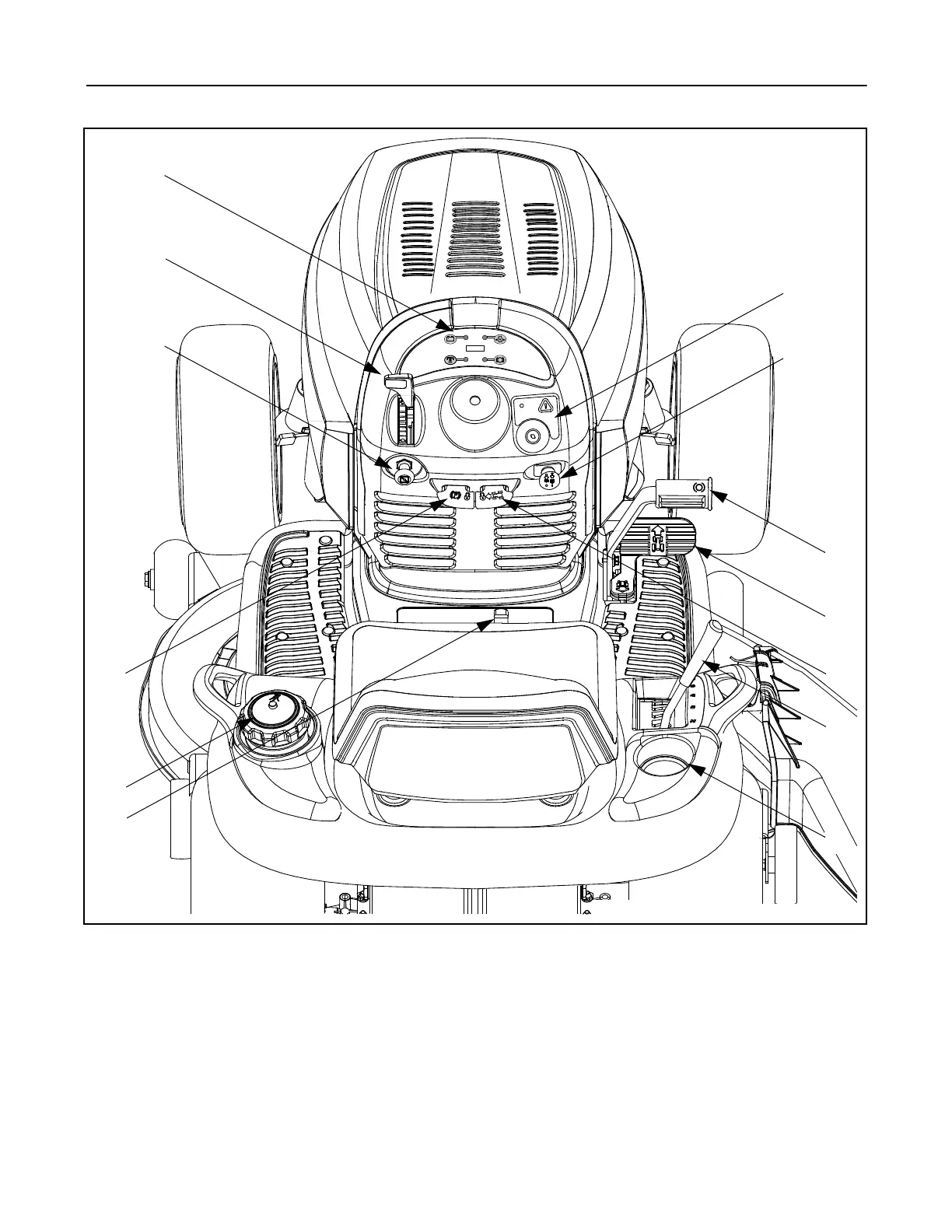

Figure 1
NOTE: Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator’s position.
A Systems Indicator Monitor/Hour Meter H PTO (Blade Engage) Knob
B Throttle Control Lever I Brake Pedal
C Choke Control J Drive Pedal
D Parking Brake Lever K Cruise Control Lever
E Fuel Tank Cap L Deck Lift Lever
F Seat Adjustment Lever M Cup Holder
G Ignition Switch Module
H
B
A
G
C
D
E
L
K
J
F
I
M
NOTE: Steering Wheel not shown for clarity.
BRAKE
HOURS 1 /10
PARKING
OIL PRESSURE
PTO / BLADE ENGAGE
BATTERY
P
+
