29
Ref.
No.
Part No. Description
1
683-0147 Idler Bracket Assembly
2
710-0191 Hex Screw 3/8-24 x 1.25
3
710-0314 Hex Screw 7/16-20 x 1.0”
4
710-0902 Cap Screw 3/8-24 x 3.75
5
710-1611 Pan Head TL Screw 5/16-18 x .75
6
710-3096 Hex Screw 3/8-16 x 2.0 Special
7
712-0116 Jam Lock Nut 3/8-24
8
712-0241 Hex Nut 3/8-24
9
712-3017 Hex Nut 3/8-16
10
712-3035 Hex Jam Nut 9/16-18 (Gr. 5)
11
714-0114 Square Key
12
717-0884 Variable Speed Pulley Assembly
13
732-0814 Extension Spring
14
732-0815 Extension Spring
15
736-0169 Lock Washer
16
736-0171 Lock Washer 7/16 I.D.
17
736-0219 Bell Washer .406 I.D. x 1.13 O.D.
18
736-0247 Flat Washer 3/8 x 1.25 O.D.
19
736-0427
Belleville Washer
20
737-0167 Grease
21
737-0288 Grease
22
738-0968 Shoulder Spacer
23
741-0405 Bearing
24
750-0705 Spacer
25
754-0453 V-Belt
26
756-0116 Idler Pulley
27
756-0650 Transmission Pulley
28
756-0658 Engine Pulley
29
756-0981 Flat Idler Pulley
30
783-0528 Idler Bracket
31
783-0529 Cable Bracket
32
683-0149B-0716

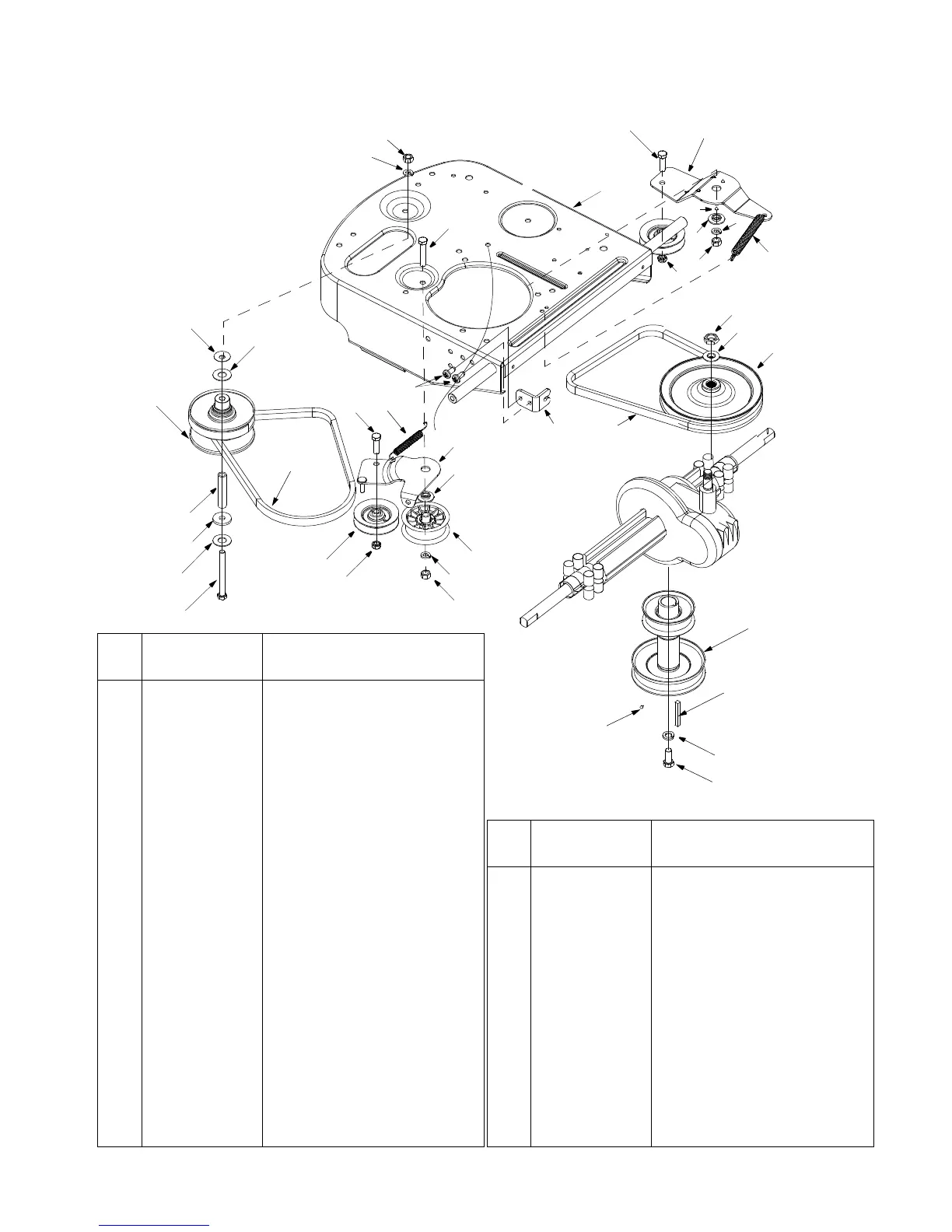

Frame: Lower, Yellow
Ref.
No.
Part No. Description
21
28
11
16
3
25
31
10
19
27
22
29
15
9
7
26
2
14
25
17
23
24
18
23
12
4
1
8
15
30
20
22
15
9
7
13
2
6
5
Model 1027
