30

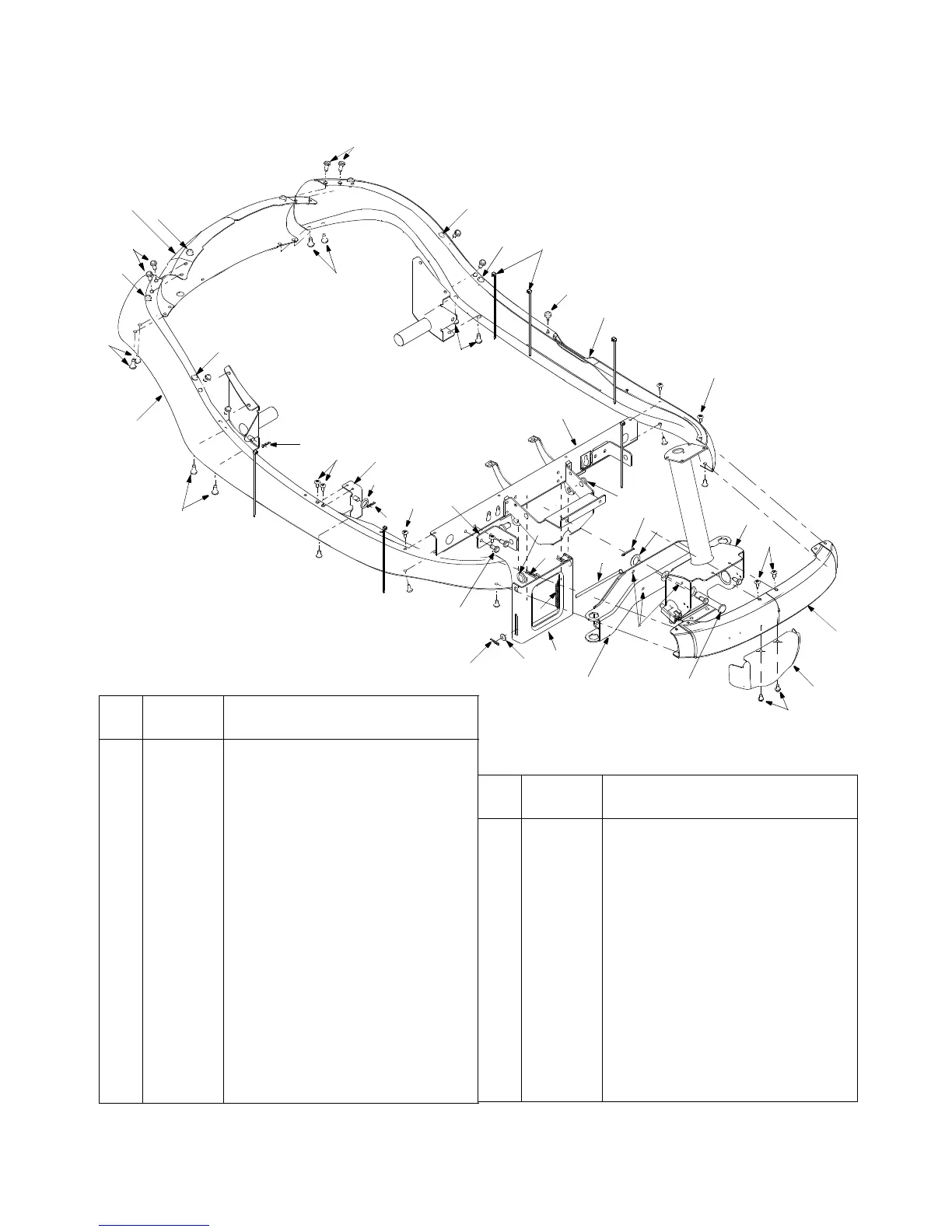

Model 1027
20.
737-3007 Grease
21.
725-0157 Cable Tie
22.
714-0470 Hairpin Clip
23.
714-0147 Hairpin Clip
25.
714-0104 Hairpin Clip
28.
711-1165 Clevis Pin
29.
711-0332 Lift Bracket Pin
30.
710-1611 TT Screw 5/16-18 x .75
31.
710-1017 Torx Mach. AB Scr. 1/4-14 x 0.625”
32.
710-0599 Hex TT Screw 1/4-20
33.
683-0163A Steering Support Bracket
34.
683-0160 Pivot Bracket Ass’y.: Hood
35.
683-0142 Pivot Bar Assembly
Ref.
No.
Part No. Description
Ref.
No.
Part No. Description
1.
783-0605 Deck Stabilizing Bracket
3.
783-0564A Front Frame: Upper
4.
783-0811-
0716
Steering Gear Cover
5.
683-0264 Front Channel Assembly
6.
783-0554 Cam Bracket
8.
783-0414A Frame Rail: Rear
9.
783-0413 Frame Rail—L.H.
10.
783-0412A Frame Rail—R.H.
11.
747-0985 Deck Rod
12.
736-3019 Flat Washer .531 X 1.062 X .134
14.
736-0275 Flat Washer 5/16
15.
736-0187 Flat Washer .64 I.D. X 1.24 X .06
16.
736-0101 Flat Washer 3/8 X 1.00 X .030
17.
735-0271 Rubber Bumper
18.
735-0199A Rubber Bumper
19.
732-0829 Extension Spring
1
3
4
5
6
8
9
10
11
12
14
15
16
17
18
19
21
22
23
25
28
25
29
30
30
31
31
31
32
30
33
34
35
31
17
17
18
30
17
30
30
22
15
20
