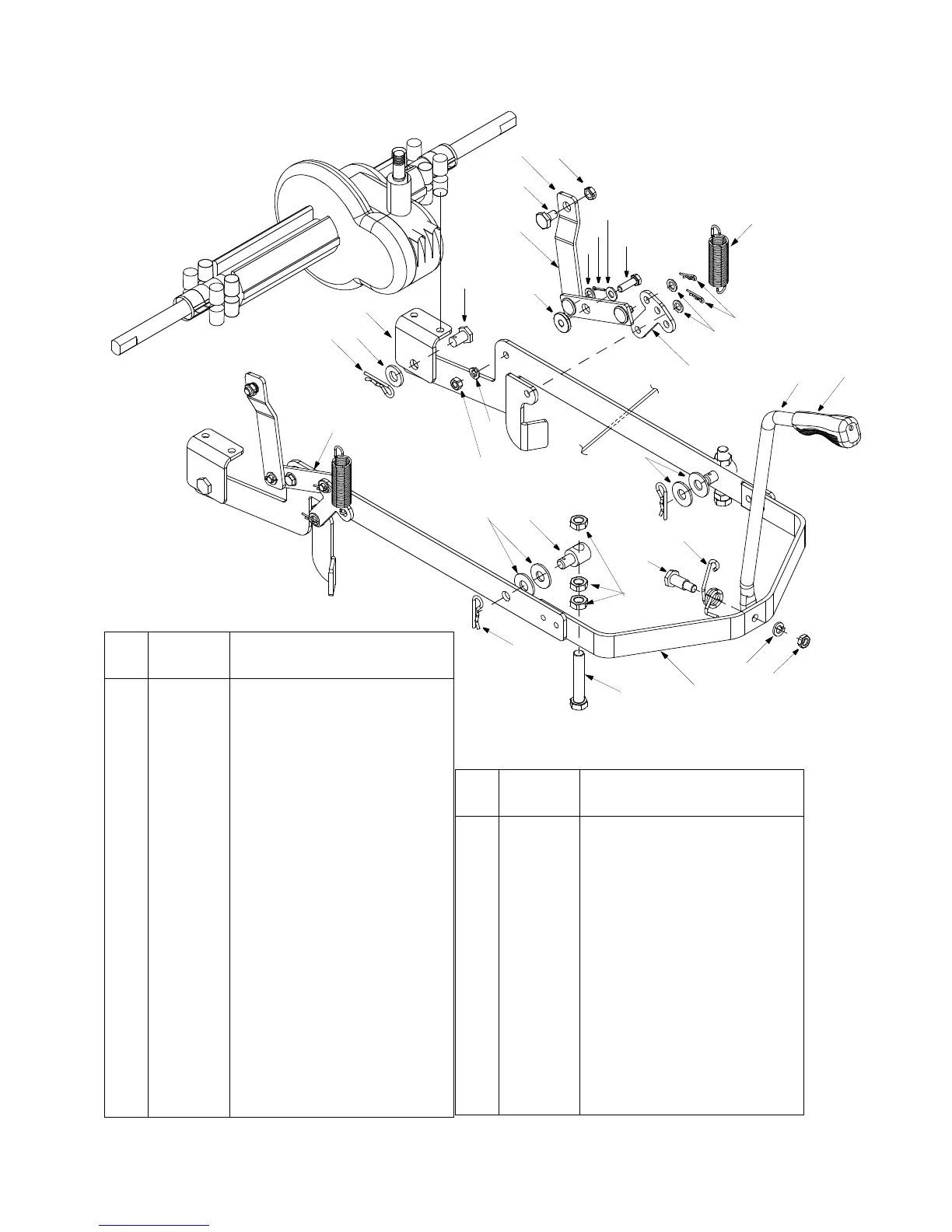

Cub Cadet 1027 User Manual

27
Ref.
No.
Part No. Description
1.
683-0152 Pivot Link Assembly
2.
683-0194 Lift Arm Assembly
3.
710-0376 Hex Screw 5/16-18 X 1.00 Gr.5
4.
710-3230 Hex Bolt 1/2-13 X 2.75 Gr.5
Special
5.
711-0332 Lift Bracket Pin
6.
711-1120 Lift Rod
7.
711-3319 Ferrule
8.
712-0266 Jam Nut
9.
712-3008 Jam Nut 3/8-16 Gr. 5
10.
712-3010 Hex Nut 5/16-18
11.
712-3048 Jam Nut
12.
714-0104 Cotter Pin
13.
714-0147 Cotter Pin
14.
714-3010 Cotter Pin
15.
720-0298 Handle Grip
16.
732-0829 Extension Spring
17.
732-0837 Torsion Spring
18.
736-0119 Lock Washer 5/16
19.
736-0140 Flat Washer .385 I.D. x .620 O.D.
20.
736-0169 Lock Washer
21.
736-0257 Flat Washer
22.
736-0275 Flat Washer 5/16
23.
736-3019 Flat Washer
24.
738-0145 Shoulder Screw
25.
738-0183 Shoulder Screw
26.
738-0958 Shoulder Spacer
27.
783-0435 Upper Deck Link
28.
783-0437 Axle Bracket: Rear
29.
783-0440 Lower Link
Ref.
No.
Part No. Description
10
4
9
6
8
5
7
3
1
2
11
21
18
13
23
28
27
25
19
14
22
19
12
16
15
20
17
24
26
29
Model 1027
21
13
27
