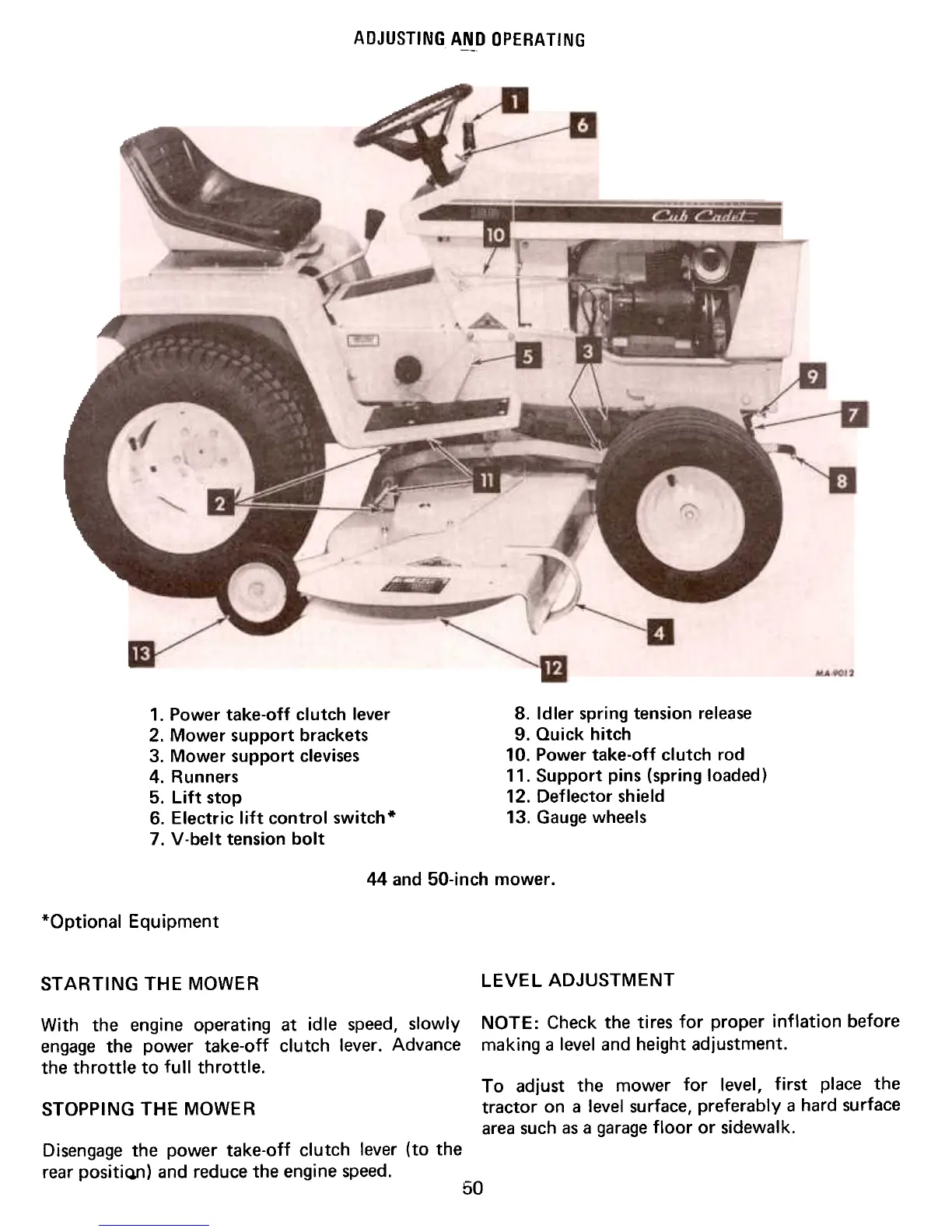

ADJUSTING
~D OPERATING
8. Idler spring tension release
9. Quick hitch10.
Power take-off clutch rod
11. Support pins (spring loaded)
12. Deflector shield13.
Gauge wheels
1. Power take-off clutch lever2.
Mower support brackets3.
Mower support clevises4.
Runners5.
Lift stop6.
Electric lift control switch*7.
V -belt tension bolt
44 and 50-inch mower.
*Optional Equipment
LEVEL
ADJUSTMENT
STARTING
THE MOWER
NOTE: Check the tires for proper inflation before
making a level and height adjustment.
With
the engine operating at idle speed, slowlyengage
the power take-off clutch lever. Advancethe
throttle to full throttle.
To
adjust the mower for level, first place the
tractor on a level surface, preferably a hard surface
area such as a garage floor or sidewalk.
STOPPING THE MOWER
Disengage the power take-off clutch lever (to therear
positiQn) and reduce the engine speed.
