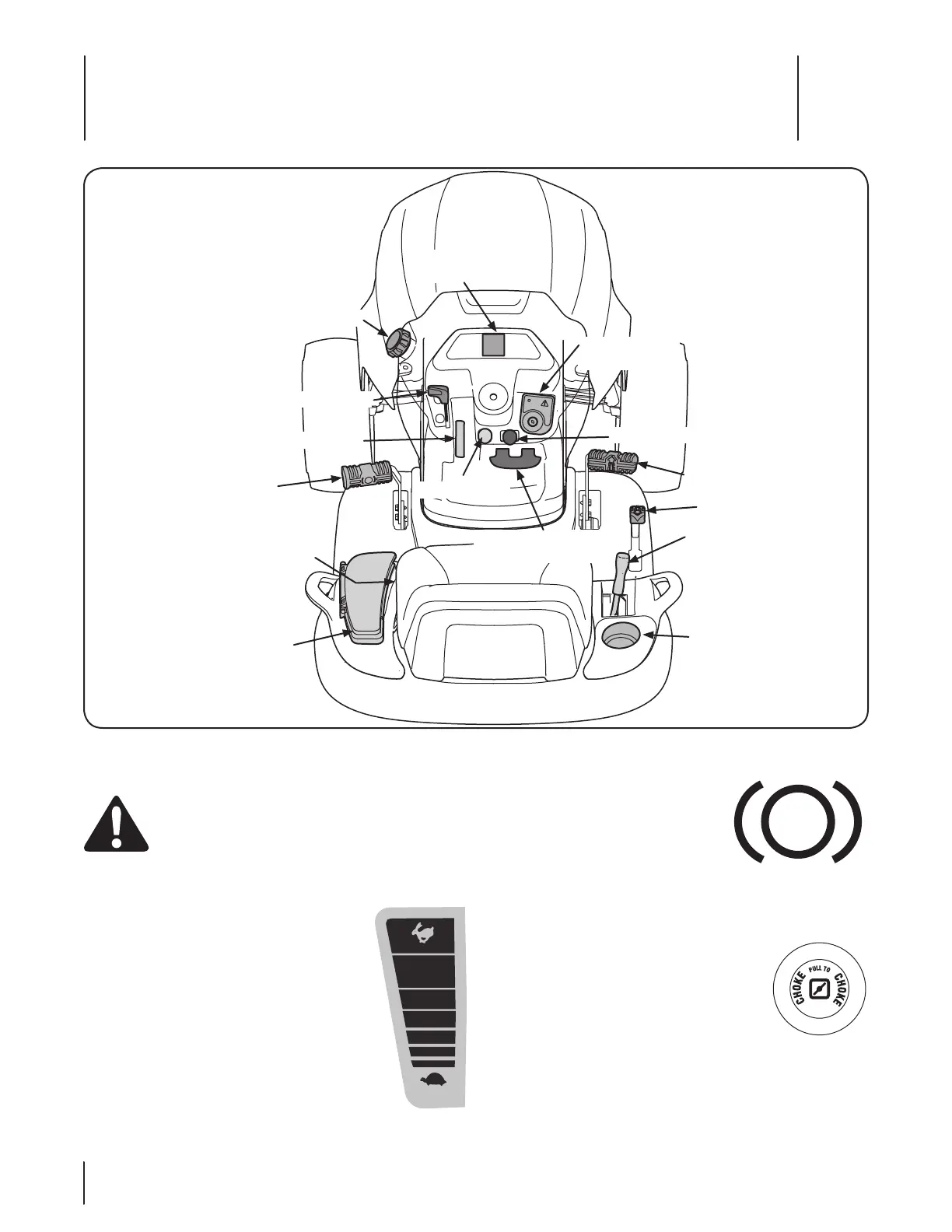

Lawn Tractor controls and features are illustrated in Figure 4-1
and described on the following pages.
WARNING! Read and follow all safety rules and
instructions in this manual, including the entire
Operation section, before attempting to operate
this machine. Failure to comply with all safety rules
and instructions may result in personal injury.
Throttle Control Lever
The throttle control is located on the left side
of the tractor’s dash panel. This lever controls
the speed of the engine. When set in a given
position, the throttle will maintain a uniform
engine speed.
NOTE: When operating the tractor with the
cutting deck engaged, be certain that the throttle
control is always in the FAST (rabbit) position.
Systems Indicator
Monitor
Brake Pedal
Drive Pedal
Deck Lift Lever
Cup Holder
Fuel Tank Cap
Throttle Control
Ignition Switch
Module
Parking Brake/
Cruise Control Lever
Seat Adjustment Lever
Reverse Pedal
Storage Bin
Fuel Level Indicator
Electric PTO Knob
Choke Control
Figure 4-1
Brake Pedal
The brake pedal is located on the left
front side of the tractor above the drive
pedal along the running board. The
brake pedal can be used for sudden
stops or setting the parking brake.
NOTE: The brake pedal must be fully
depressed to activate the safety interlock switch when starting
the tractor.
Choke Control Knob
The Choke Control Knob controls the position of
the engine choke. Pull the knob out to choke the
engine, push the knob in to open the choke.
Controls and Features
4
