Cub Cadet 1517

-13-
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 710-1268 Screw, #10-16, 0.375 2
2 712-3004A Nut, Flange Lock, 5/16-18, Gr5 2
3 712-3027 Nut, Flange Lock, 1/4-20 1
4 720-0433 Grip, Seat, Adjustment (Yellow) 1
5 726-0201 Nut, Speed, .3125 ID 2
6 731-1989 Spacer, Seat, Adjustment 4
7 732-0499 Spring, Compression .41 OD x 1.50 1
8 732-1184 Spring, Extension, .84 Dia x 4.6 Lg. 1
9 736-0175 Washer, Spring, .265 x .562 x.025 1
10 736-0204 Washer, Flat, .344 ID x .62 OD 1
11 736-0275 Washer, Flat, .344 x .688 x .065 2
12 736-3019 Washer, Flat, .531 x 1.062 x .134 2
13 738-0137A Screw, Shoulder, .340 x .285, 1/4-20 1
14 738-0296 Shoulder, Screw .437 x .286 Lg 2
15 738-1198 Screw, Shoulder, .50 x.50, 5/16-18 4
16 783-0209A Bracket, Lift, Seat 1
17 783-0611 Stop, Seat, Adjustment 1
18 783-0738 Bracket, Pivot, Seat 1
19 783-0739 Lever, Seat, Adjustment 1
20 783-0753 Selector, Seat, Adjustment 1
21 757-3003 Seat, Mid-back, V-1480 1

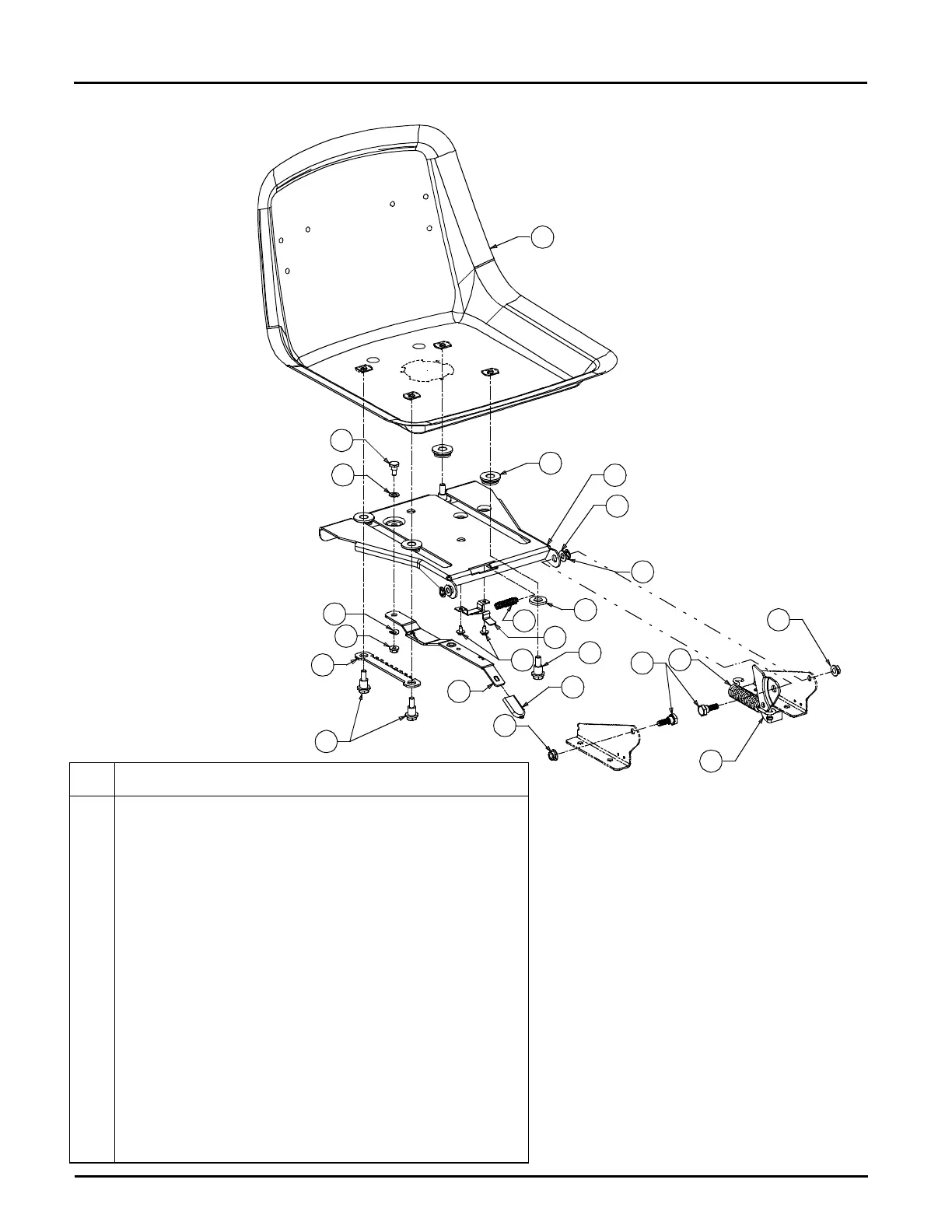

ADJUSTABLE SEAT
18
6
11
12
15
14
17
19
20
15
10
13
9
3
4
2
1
7
5
16
2
8
21
