Cub Cadet 1517

-14-
Fits Over Fuel Line Routed Behind The Engine.
For Choke
Secures The Headlight Harness Slack To The Hood Hinge.

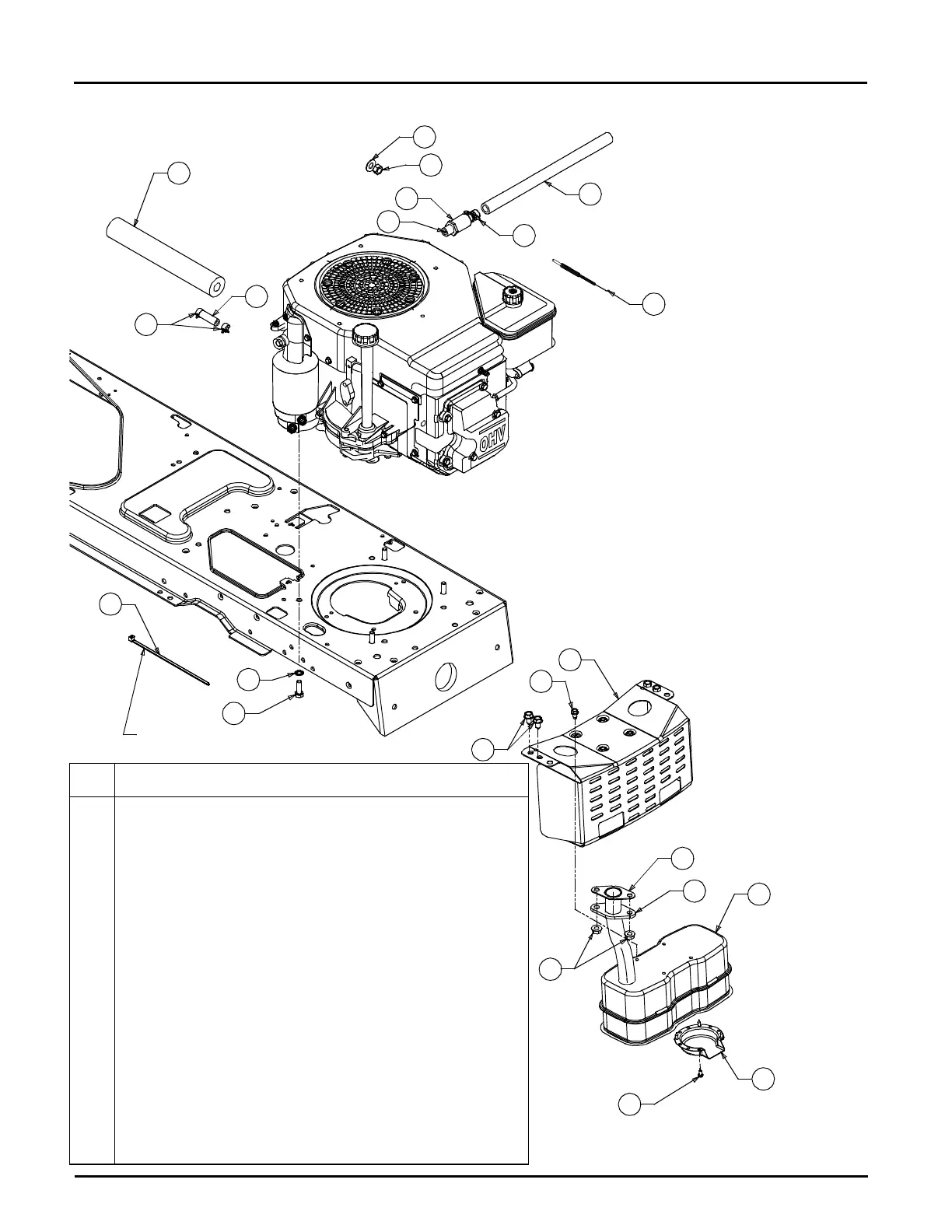

ENGINE ACCESSORIES
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 710-0227 Screw, #8-18, 0.500 4
2 710-0599 Screw, Self-tapping, 1/4-20, 0.500 4
3 710-0604A Screw, 5/16-18, 0.625 4
4 710-3206A Screw, M8-1.25, 25.0, Gr8.8 4
5 712-3017 Nut, Hex, 3/8-16, Gr8 1
6 712-3086 Nut, M8, 1.25-6h, Flange 2
7 783-0615B Shield, Heat, Muffler 1
8 721-0375 Gasket, Exhaust, Kohler Single 1
9 722-0263 Foam, .625 x 1.50 x 10.0 Lg 2
10 725-0157 Cable, Tie, 3/16 x .05 x 7.4 1
11 726-0205 Clamp, Hose, .490 Dia. 2
12 751-3142 Cap, Oil, Drain 1
13 736-0300 Washer, Flat, .406 x .875 x .059 1
14 736-0607 Washer, External Lock, 5/16 4
15 746-1087 Cable, Throttle, 27.4 Lg 1
16 751-0535 Hose, Fuel Line 60
17 751-0564 Deflector, Muffler 1
18 751-0617 Muffler, Single Inlet 1
19 751-0824 Pipe, Exhaust, Kohler Single 1
20 751-3140 Drain, Oil 1
21 751-3141 Hose, Extension, Oil Drain 12
2
15
12
20
7
3
8
6
1
4
9
5
7
20
13
16
11
10
14
18
19
17
