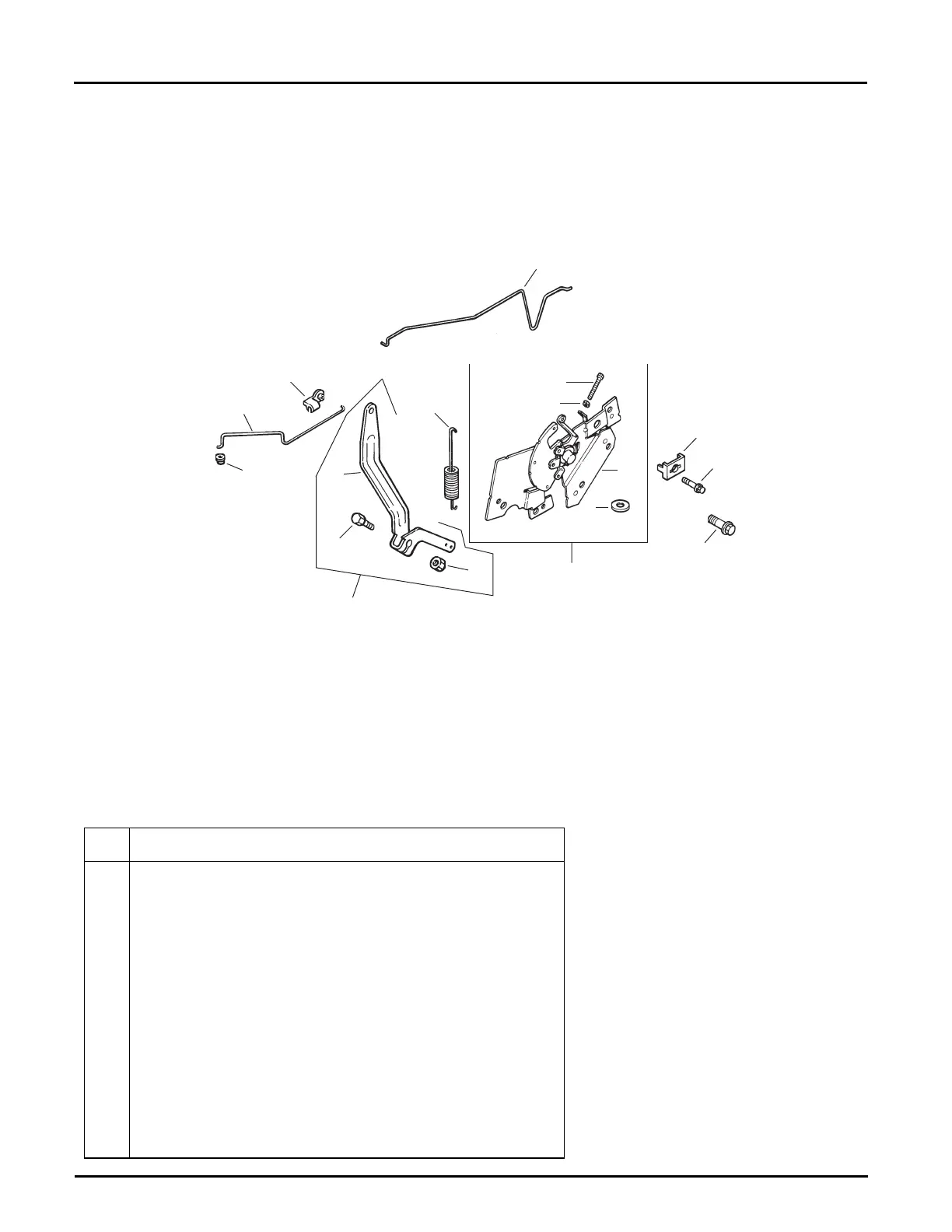

ENGINE CONTROLS
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-12 079 11-S Linkage, Choke 1
2 KH-12 237 01-S Clamp, Cable 2
3 KH-M-545016-S Screw, Hex. Flange M5 x 0.8 x 16 2
4 KH-M-664020-S Screw, Lobed Socket M6 x 1.0 x 20 2
5 KH-12 536 02-S Control, Speed Assembly (Incl. 6-9) 1
6 KH-230293-S Spacer, Shim .005 1
7 KH-12 126 75-S Bracket, Control (Model 1517) 1
8 KH-M-401030-S Screw, Hex. Flange M4 x 0.7 x 30 1
9 KH-M-446030-S Nut, Hex. M4 x 0.7 1
10 KH-52 089 07-S Spring, Governor 1
11 KH-12 755 83-S Kit, Governor Lever (Includes 12-14) 1
12 KH-12 100 07-S Nut, Hex. Flange M6 x 1.0 1
13 KH-52 211 04-S Screw, Hex. Flange M6 x 1.0 x 25 1
14 KH-12 090 28-S Lever, Governor 1
15 KH-25 158 08-S Bushing, Linkage Retaining 1
16 KH-12 079 10-S Linkage, Throttle 1
17 KH-25 158 11-S Bushing, Linkage Retaining 1
