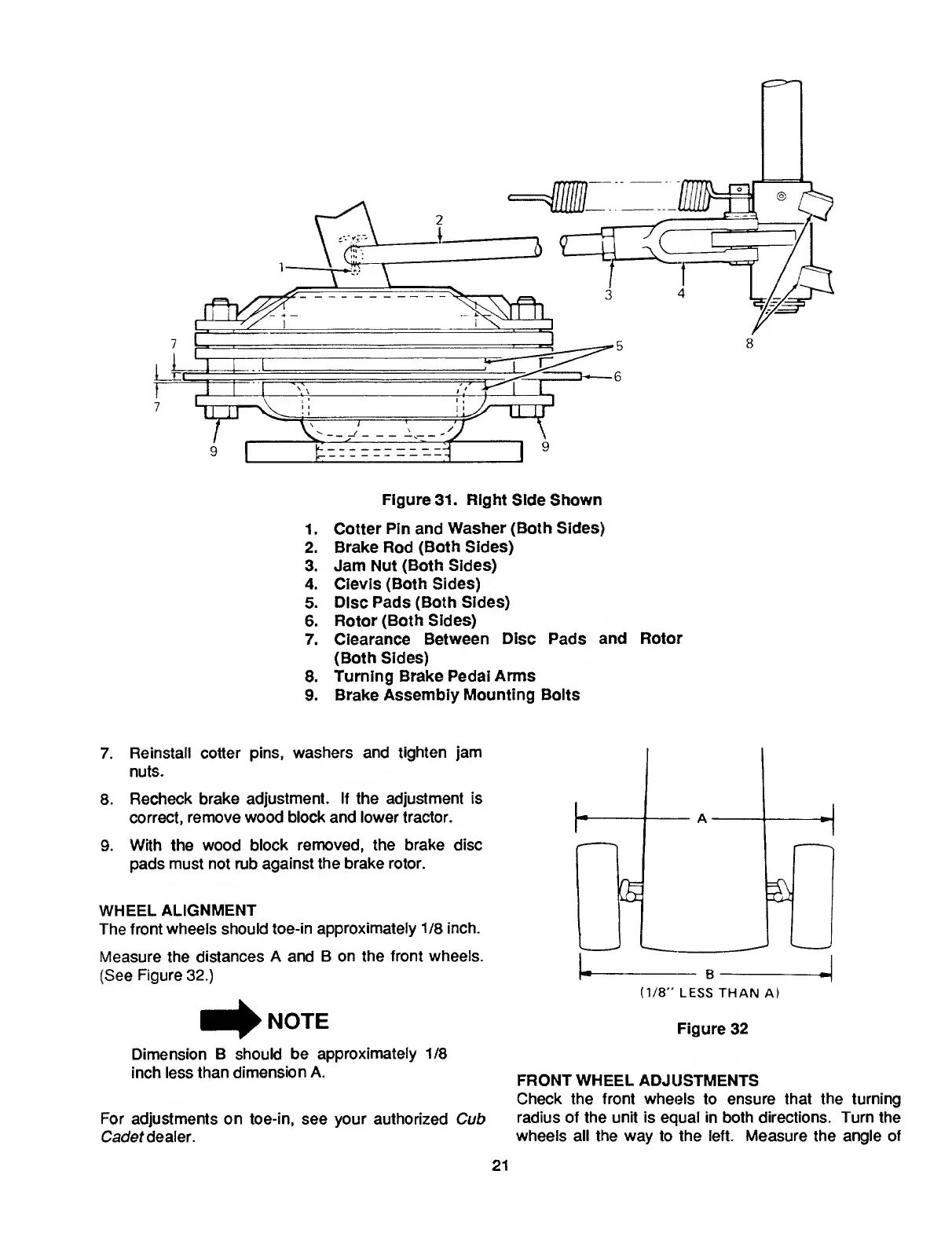

Figure 31. Right Side Shown
1. Cotter Pin and Washer (Both Sides)
2. Brake Rod (Both Sides)
3. Jam Nut (Both Sides)
4. Clevis (Both Sides)
5. Disc Pads (Both Sides)
6. Rotor (Both Sides)
7. Clearance Between Disc Pads and Rotor
(Both Sides)
8. Turning Brake Pedal Arms
9. Brake Assembly Mounting Bolts
7. Reinstall cotter pins, washers and tighten jam
nuts.
8. Recheck brake adjustment. If the adjustment is
correct, remove wood block and lower tractor.
9. With the wood block removed, the brake disc
pads must not rub against the brake rotor.
WHEEL ALIGNMENT
The front wheels should toe-in approximately 1/8 inch.
Measure the distances A and B on the front wheels.
(See Figure 32.)
■ ^NOTE
Dimension B should be approximately 1/8
inch less than dimension A.
For adjustments on toe-in, see your authorized Cub
Cadet dealer.
Figure 32
FRONT WHEEL ADJUSTMENTS
Check the front wheels to ensure that the turning
radius of the unit is equal in both directions. Turn the
wheels all the way to the left. Measure the angle of
21

Cub Cadet 1782 Specifications

General

Horsepower	17 HP
Transmission Type	Hydrostatic
Cutting Width	50 inches
Drive	2WD
Reverse Speed	0-3.5 mph
Blades	3
Fuel Capacity	3 U.S. gallons
Cutting Height	1.0 - 4.0 inches
