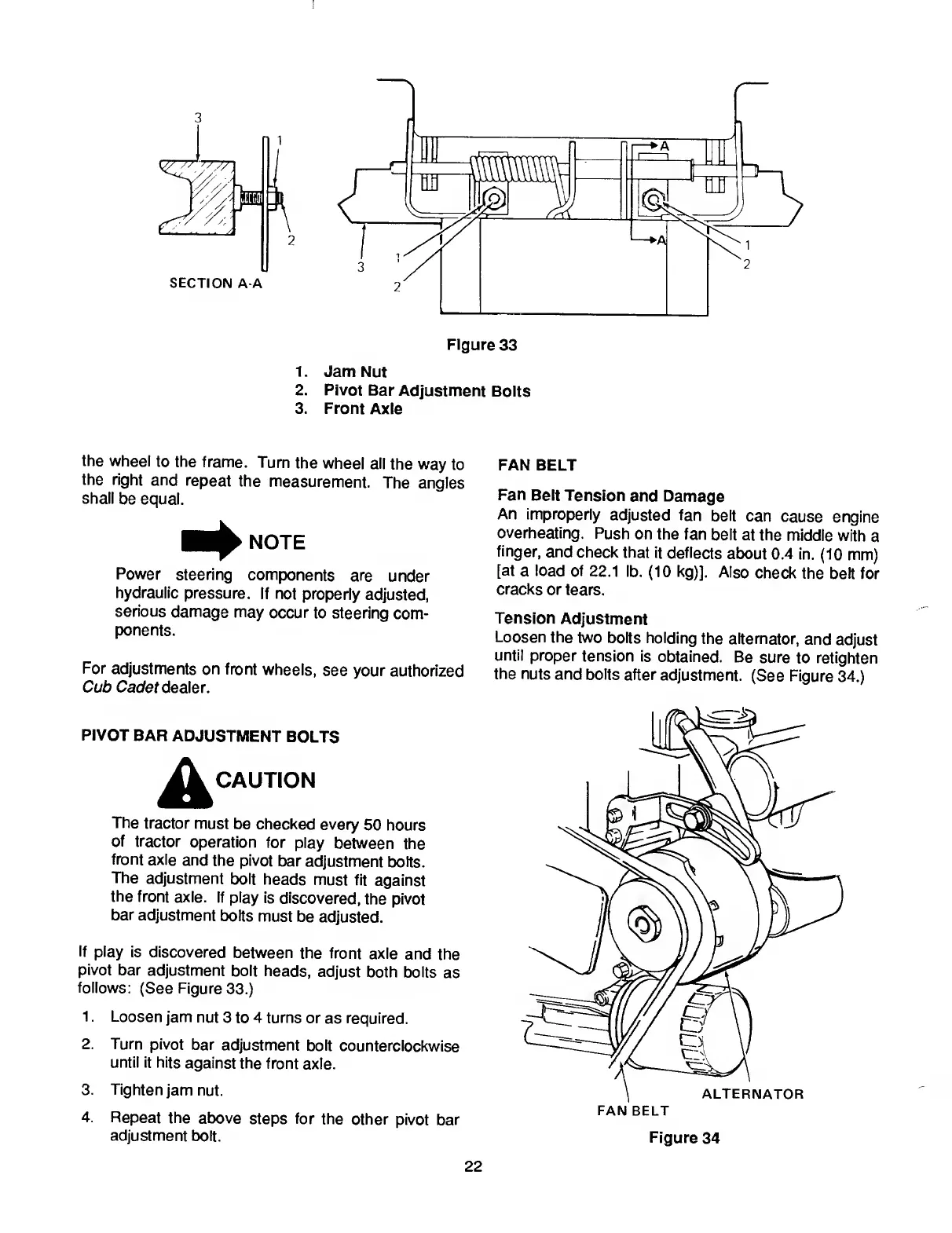

Figure 33
1. Jam Nut
2. Pivot Bar Adjustment Bolts
3. Front Axle
the wheel to the trame. Turn the wheel all the way to
the right and repeat the measurement. The angles
shall be equal.
NOTE
Power steering components are under
hydraulic pressure. It not properly adjusted,
serious damage may occur to steering com¬
ponents.
For adjustments on front wheels, see your authorized
Cub Cadet dealer.
PIVOT BAR ADJUSTMENT BOLTS
A CAUTION
The tractor must be checked every 50 hours
of tractor operation for play between the
front axle and the pivot bar adjustment bolts.
The adjustment bolt heads must fit against
the front axle. If play is discovered, the pivot
bar adjustment bolts must be adjusted.
If play is discovered between the front axle and the
pivot bar adjustment bolt heads, adjust both bolts as
follows: (See Figure 33.)
1. Loosen jam nut 3 to 4 turns or as required.
2. Turn pivot bar adjustment bolt counterclockwise
until it hits against the front axle.
3. Tighten jam nut.
4. Repeat the above steps for the other pivot bar
adjustment bolt.
FAN BELT
Fan Belt Tension and Damage
An improperly adjusted fan belt can cause engine
overheating. Push on the fan belt at the middle with a
finger, and check that it deflects about 0.4 in. (10 mm)
[at a load of 22.1 lb. (10 kg)]. Also check the belt for
cracks or tears.
Tension Adjustment
Loosen the two bolts holding the alternator, and adjust
until proper tension is obtained. Be sure to retighten
the nuts and bolts after adjustment. (See Figure 34.)
Figure 34
22

Cub Cadet 1782 Specifications

General

Horsepower	17 HP
Transmission Type	Hydrostatic
Cutting Width	50 inches
Drive	2WD
Reverse Speed	0-3.5 mph
Blades	3
Fuel Capacity	3 U.S. gallons
Cutting Height	1.0 - 4.0 inches
