Contents of Carton
3
6
Before beginning installation, remove all parts from the carton to make sure everything is present. Carton contents are listed below
and shown in Fig. 3-1. Three hardware packs are included in this kit and are detailed on the following page.
Hitch Bracket Kit•
(3 Pcs. & Hardware)
Discharge Chute Elbow•
Hitch Support•
Grass Catcher Cover•
Chute Tube Extension•
Grass Catcher Cover Screen•
Two Grass Bag Assemblies•
Upper Chute Tube•
Self-Adhesive Strip•
Upper Chute Support•
Upright Support•
Hinge Cover Pin•
Bag Support Assembly•
Three Hardware Packs•
(Detailed & illustrated on the next page)

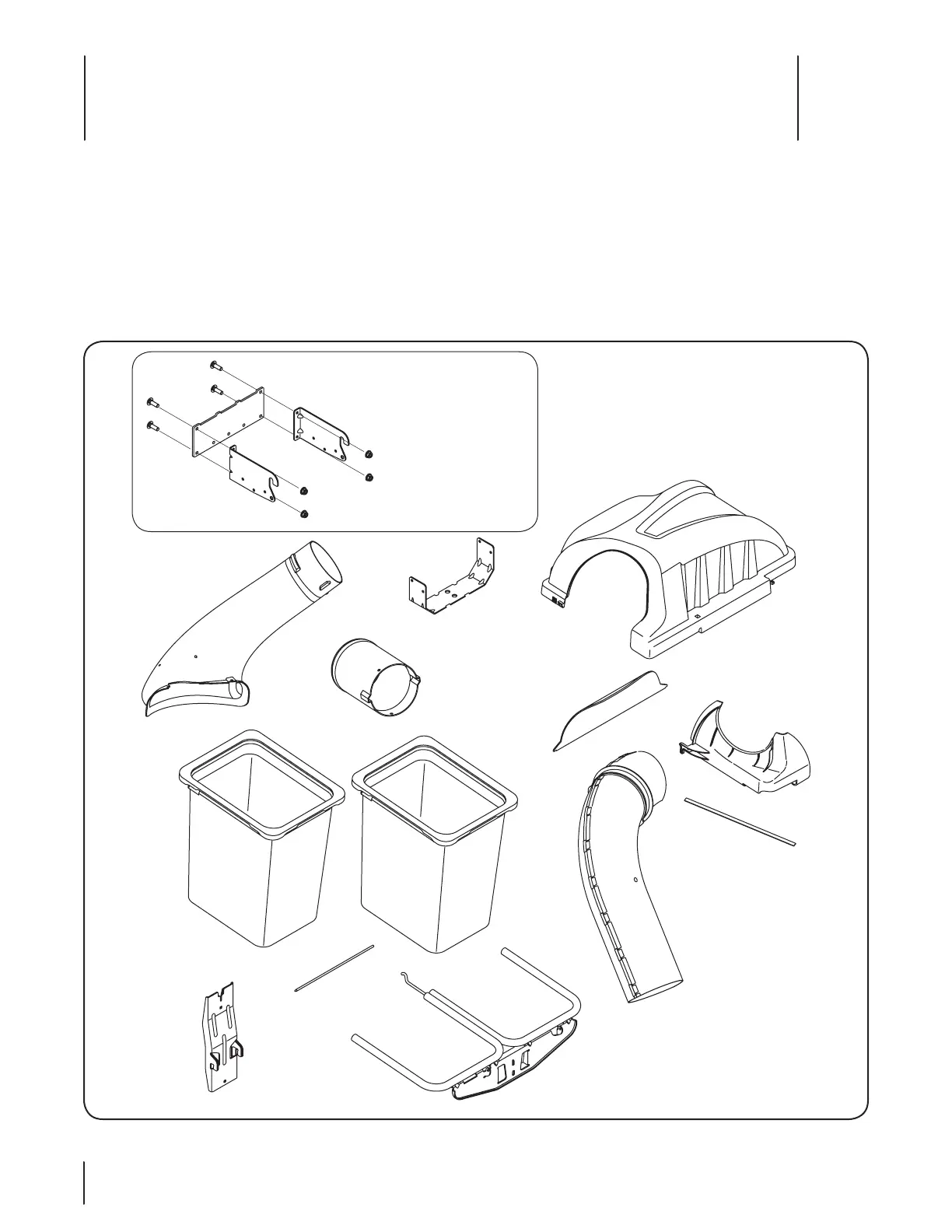

Figure 3-1
Upper Chute Tube
(931- 04291)
Discharge Chute
Elbow
(731-06099B)
Upper Chute
Support
(731-06497)
Self-Adhesive
Strip
(721-04388)
Grass Bag
Assemblies
(964-04090A)
Chute Tube
Extension
(731-06610)
Bag Support
Assembly
(683-04461-0637)
Hinge Cover Pin
( 711- 0 49 8 8)
Upright Support
(683-04519-0637)
Grass Catcher
Cover
(931-04292)
Grass Catcher
Cover Screen
(731-06504)
689-00101 Hitch Bracket Kit
(3 Pcs. & Hardware)
RH Mount (789-00052)
LH Mount (789-00054)
Rear Attachment Bracket
(789-00053)
Carriage Bolts (4) (710-0276)
Flange Lock Nuts (4) (712-04063)
Hitch Support
(783-05887-0637)
To Next Page
