22 Section 6 — Maintenance & adjuStMentS
Chute Control Rod (4-Way Chute Control) (If Equipped)
To adjust the chute control rod, proceed as follows:
1. Remove the hairpin clip from the hole closest to the chute
assembly on the chute rotation assembly.
2. Pull out the chute control rod until the hole in it lines up
with the second hole in the chute rotation assembly. See
Figure 6-8.

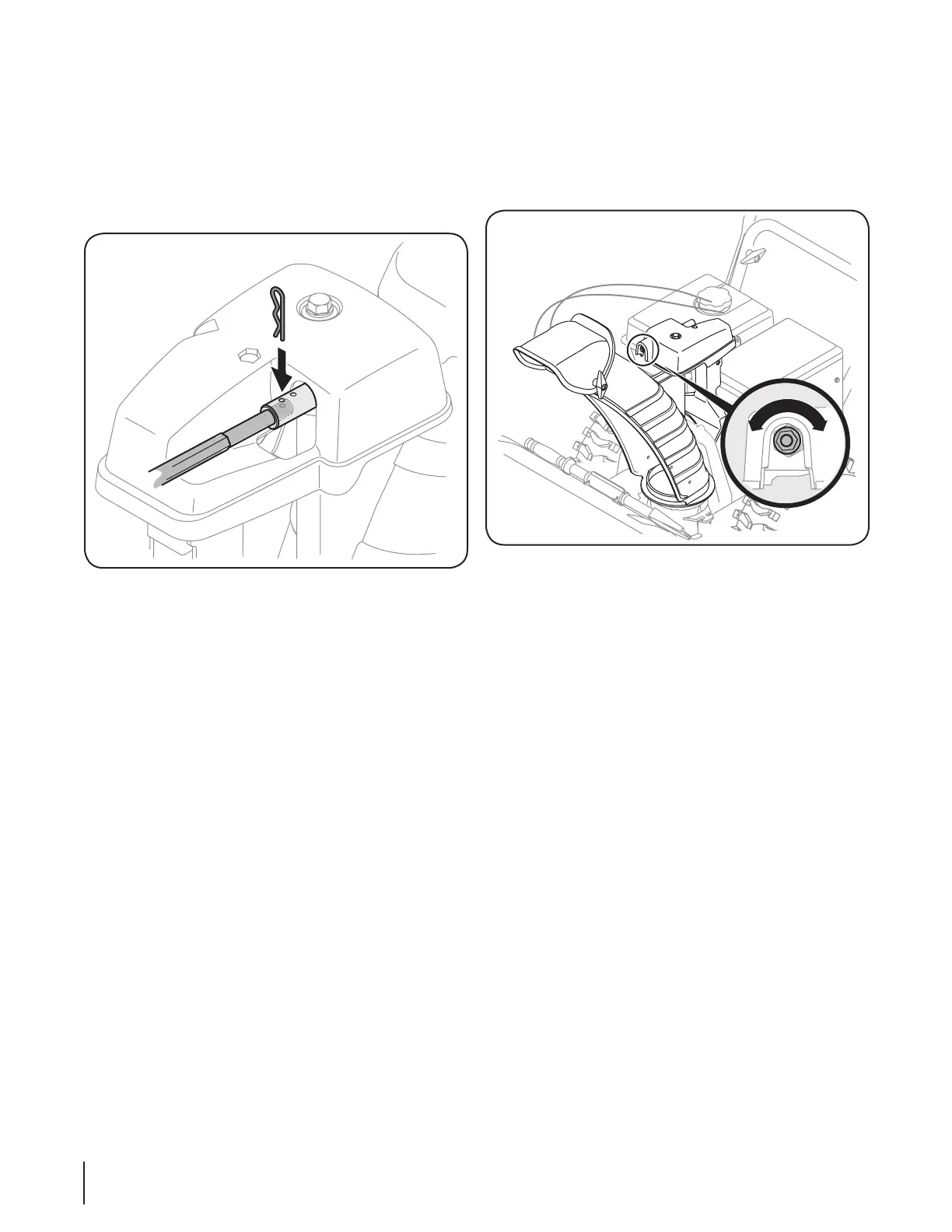

Figure 6-8
3. Reinsert the hairpin clip through this hole and the chute
control rod. See Figure 6-8.
Chute Assembly (Overhead Chute Control) (If Equipped)
If the chute fails to remain stationary during operation, the
pre-load of the chute can be adjusted by tightening the hex nut
found on the front of the chute control assembly.
To increase the preload, tighten the hex nut clockwise in ¼ turn
intervals. See Figure 6-9.
Figure 6-9
If the chute directional control is difficult to crank, decrease the
preload by loosening the hex nut counterclockwise in ¼ turn
intervals.
Off-Season Storage
If the snow thrower will not be used for 30 days or longer, follow
the storage instructions below.
1. Clean the exterior of the engine and the snow thrower.
2. Lubricate the machine as instructed earlier in this section.
3. If storing the snow thrower in an unventilated area,
rustproof the machine using a light oil or silicone to coat
the snow thrower.
4. Store machine in operating position with wheels and auger
housing shave plate on a horizontal ground surface in a
clean, dry area.
NOTE: Refer to the Engine Operator’s Manual for information on
storing your engine.
